Installation Procedure
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The front floor console light conductor lamp lens has uneven lengths. The longer end is the input end. The longer end must be aligned with the bulb retainer in order to operate properly.

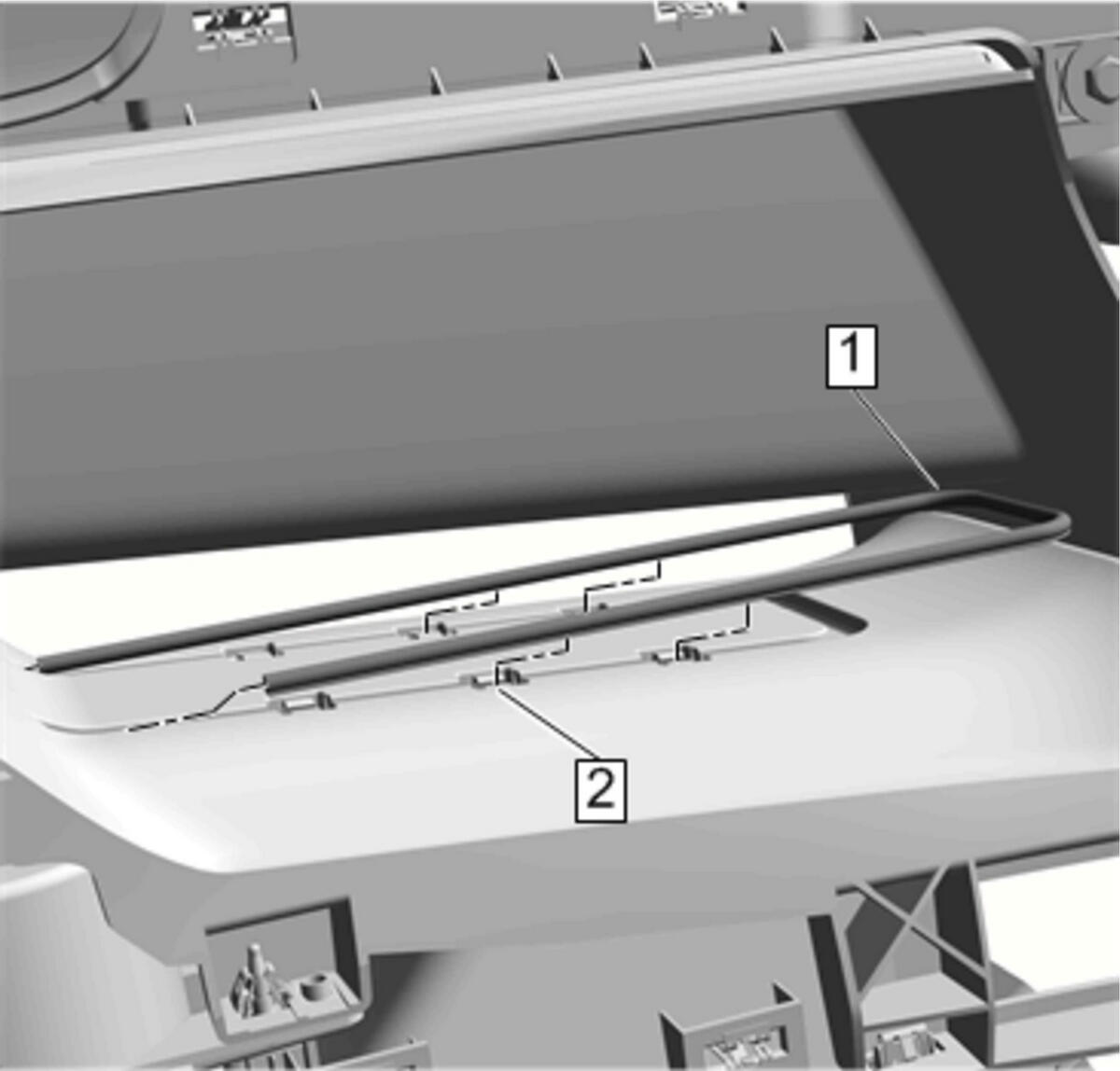

Carefully install the front floor console light conductor lamp lens (1)into the [6x]tabs (2)in the channel.
Turn the console right side up.

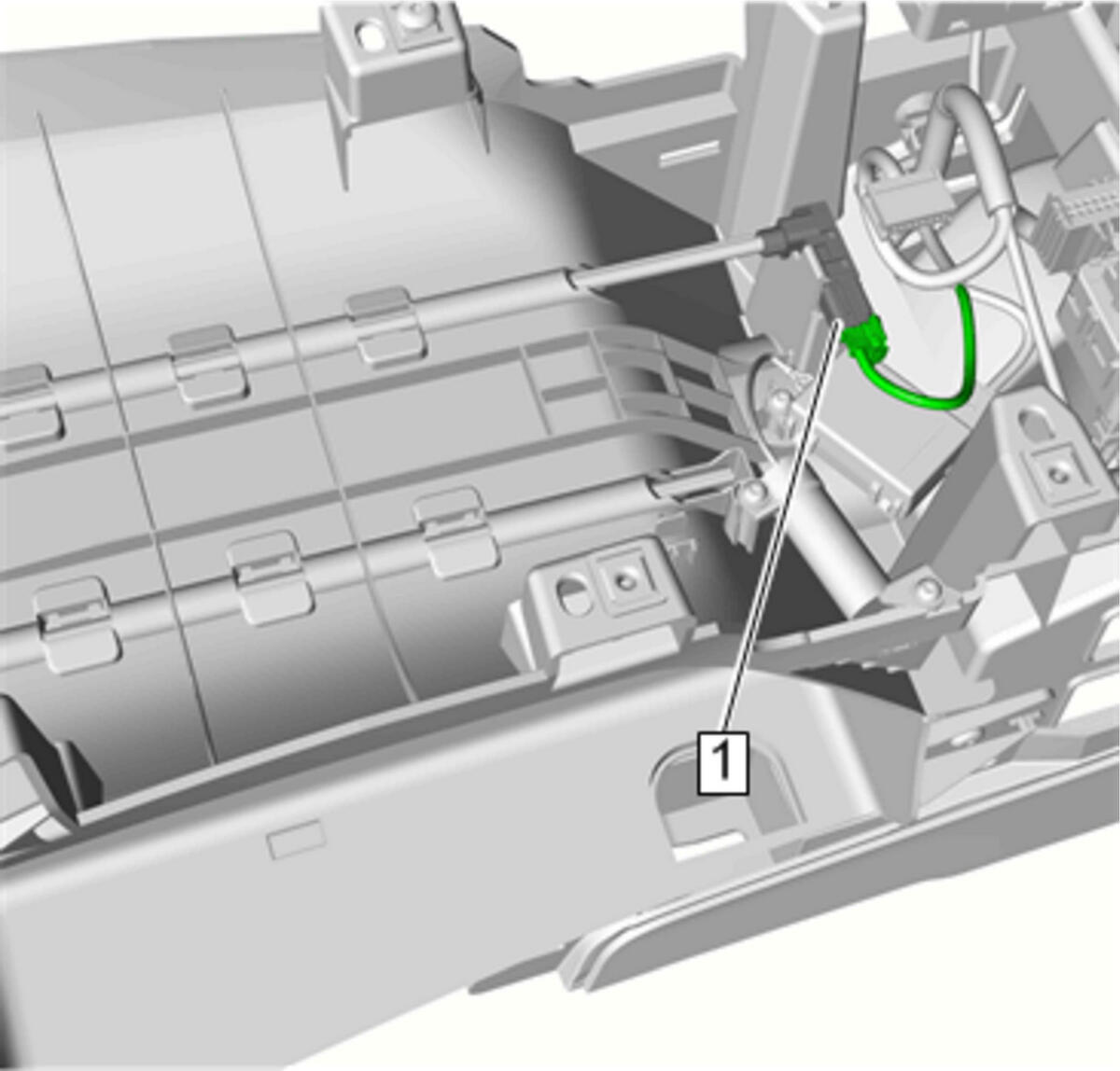

- Front Floor Console Light Conductor Lamp Bulb (1) - Install - Front Floor Console Light Conductor Lamp Bulb Replacement
With the aid of an assistant, install the console (1)to the vehicle. Front Floor Console Replacement (Equinox) , or Front Floor Console Replacement (Terrain)
