Installation Procedure

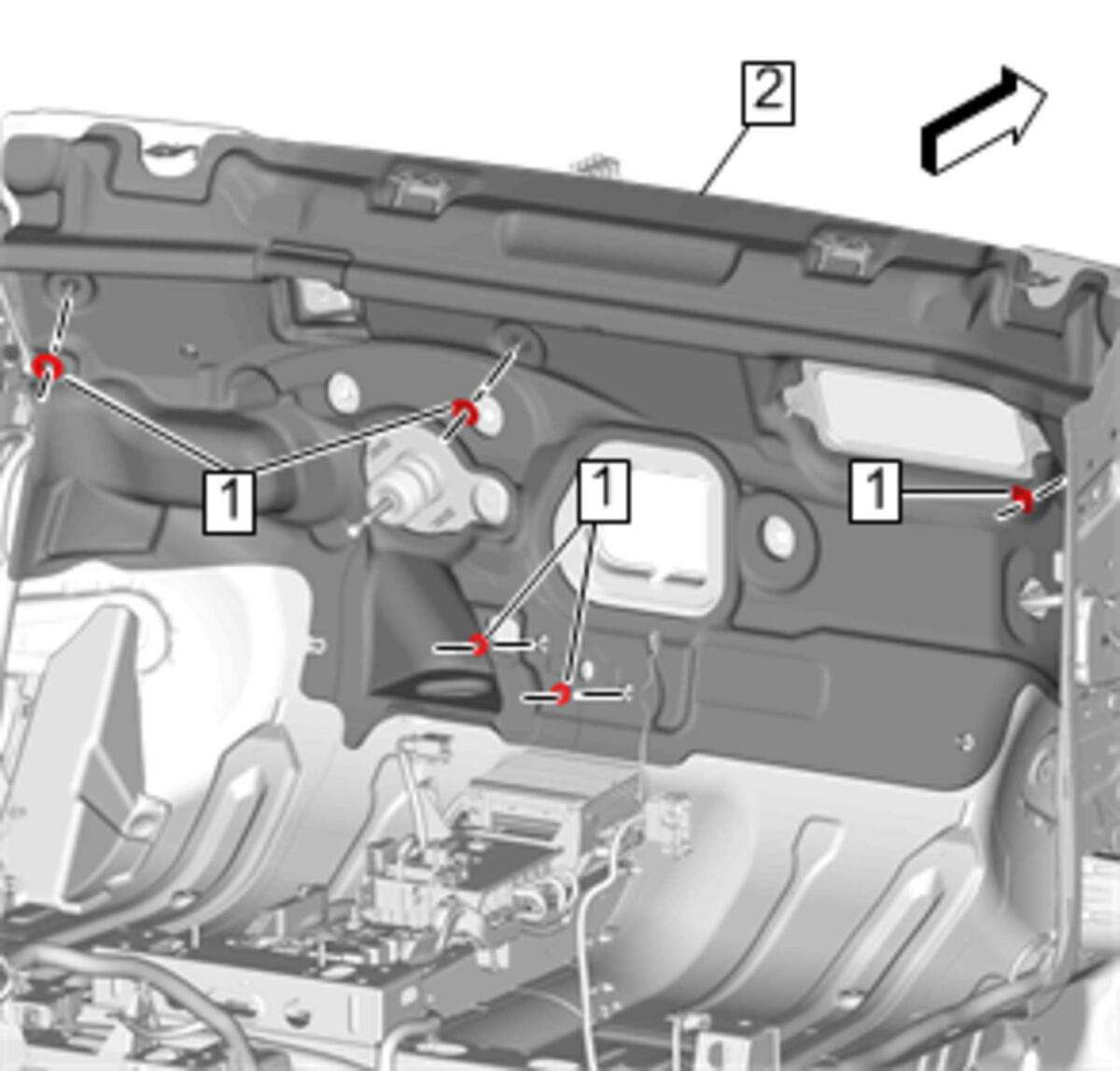

  1. GM4601795Courtesy of GENERAL MOTORS COMPANY

    Dash Panel Inner Insulator (2) - Install

  2. Dash Panel Inner Insulator Retainer (1) - Install [ 5X ]

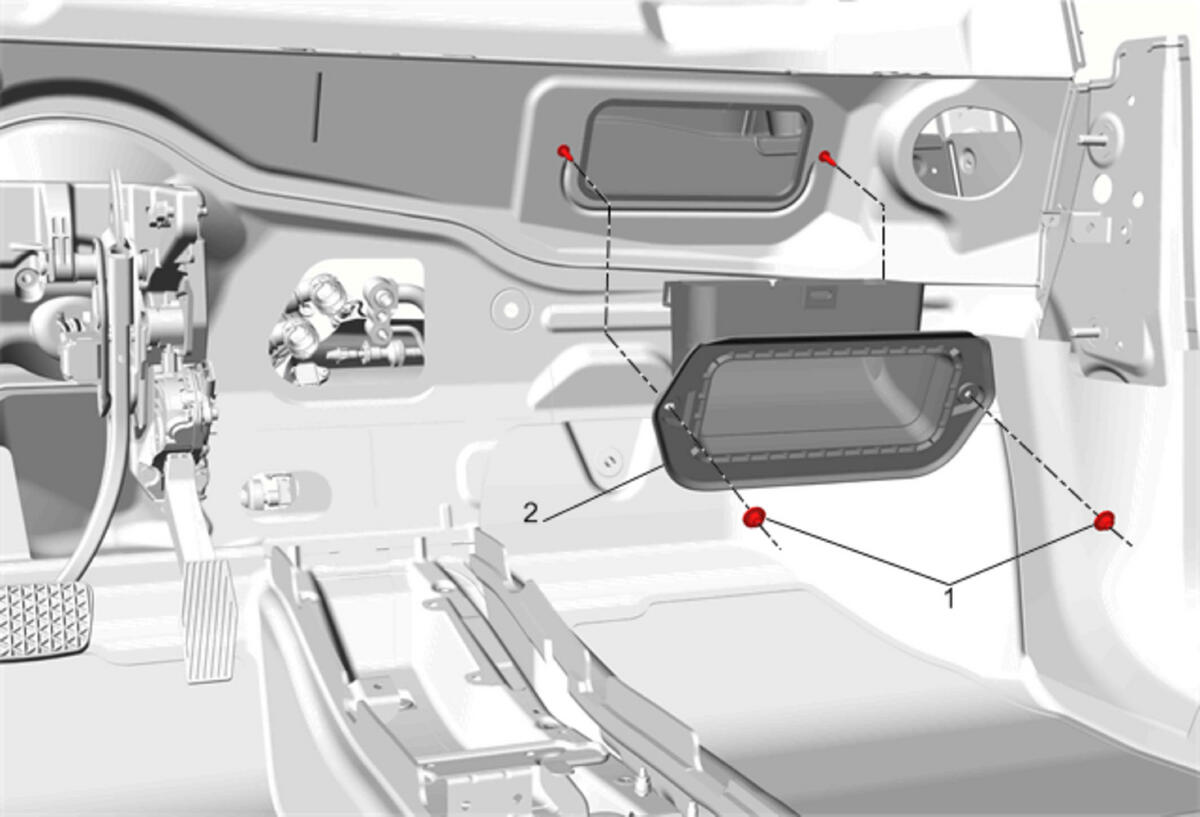

  3. GM3914252Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Duct (2) - Install - Air Inlet Duct Replacement

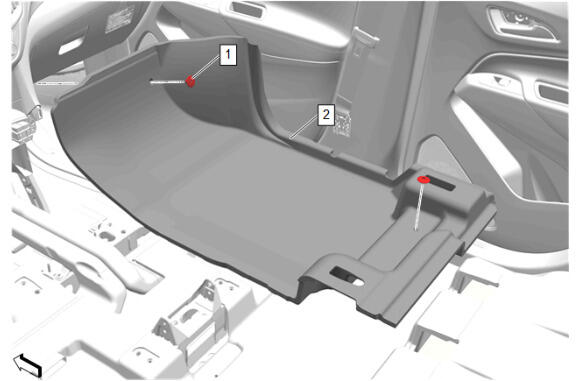

  4. GM4598323Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet - Right Side (2) - Install - Front Floor Panel Carpet Replacement - Right Side

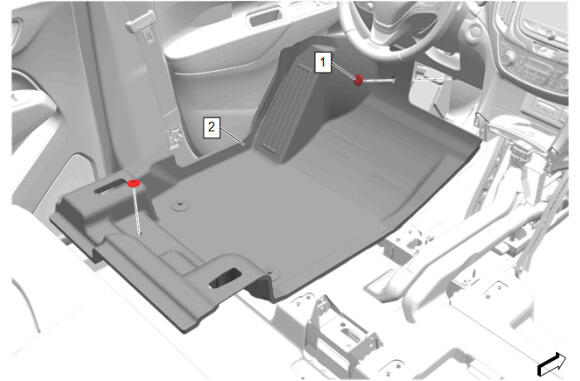

  5. GM4598396Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet - Left Side (2) - Install - Front Floor Panel Carpet Replacement - Left Side
