Liftgate Latch Striker Replacement

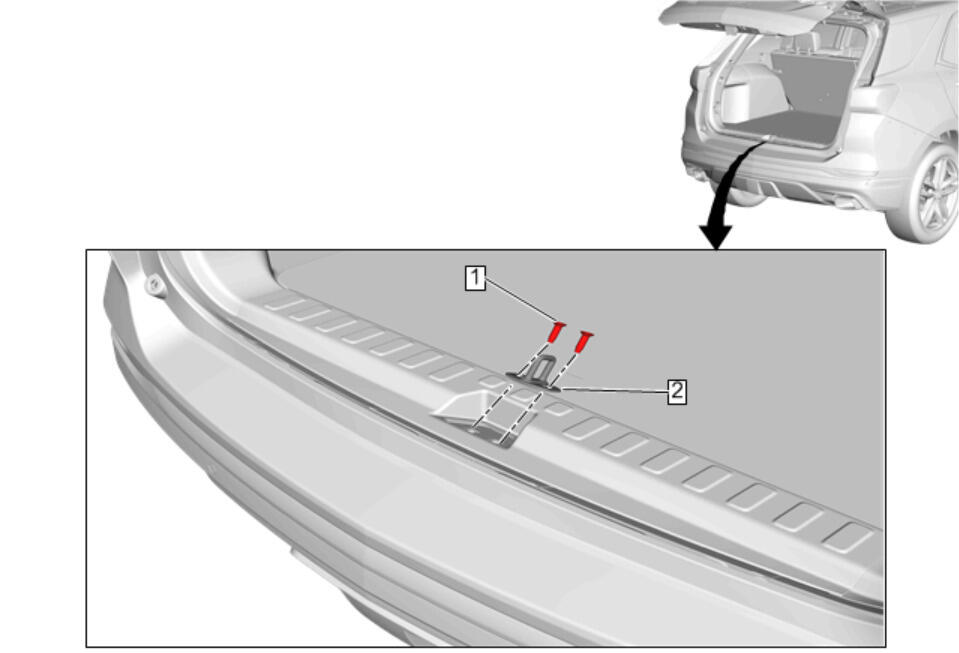

GM4576705Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Latch Striker Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Liftgate Latch Striker
Procedure
Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
