Installation Procedure

  1. Fuel Feed Pipe (1) @ Retainer (2) - Install [3x]
    GM4311735Courtesy of GENERAL MOTORS COMPANY
  2. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  3. Lower the vehicle.
  4. Fuel Feed Pipe (1) @ Retainer (2) - Install

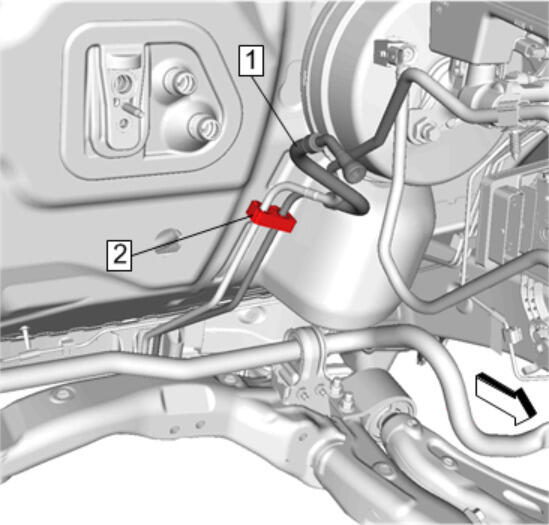

    GM4316680Courtesy of GENERAL MOTORS COMPANY
  5. Fuel Feed Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service

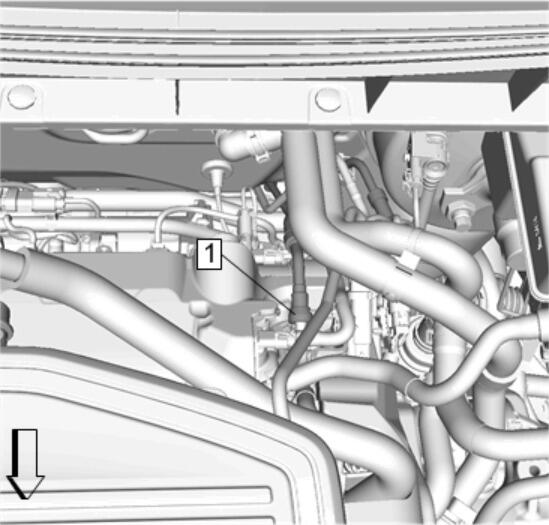

    GM4316685Courtesy of GENERAL MOTORS COMPANY
