Low Frequency Rear Bumper Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

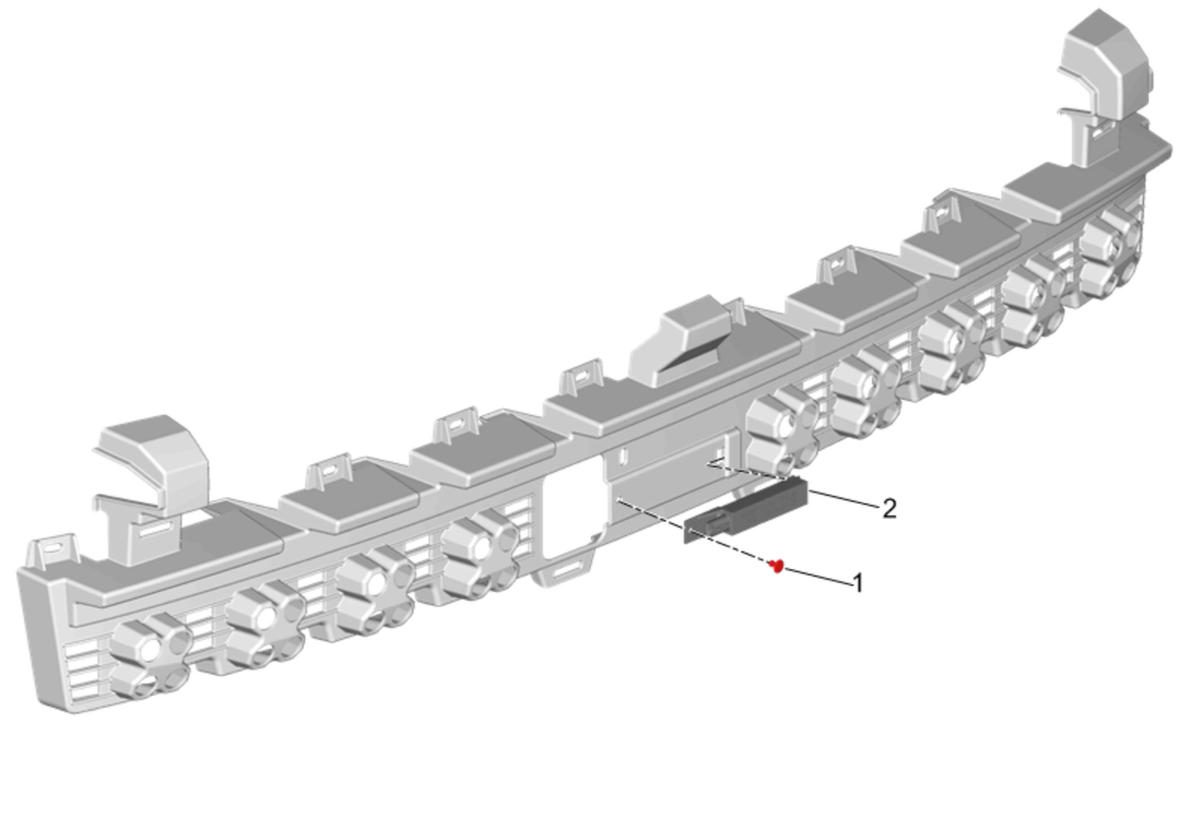

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Energy Absorber Replacement
1	Rivet WARNING: Eye Protection Warning Procedure Drill out the rivet.
2	Low Frequency Rear Bumper Antenna
