Power Transfer Unit Intermediate Drive Shaft Components Removal

Courtesy of GENERAL MOTORS COMPANY

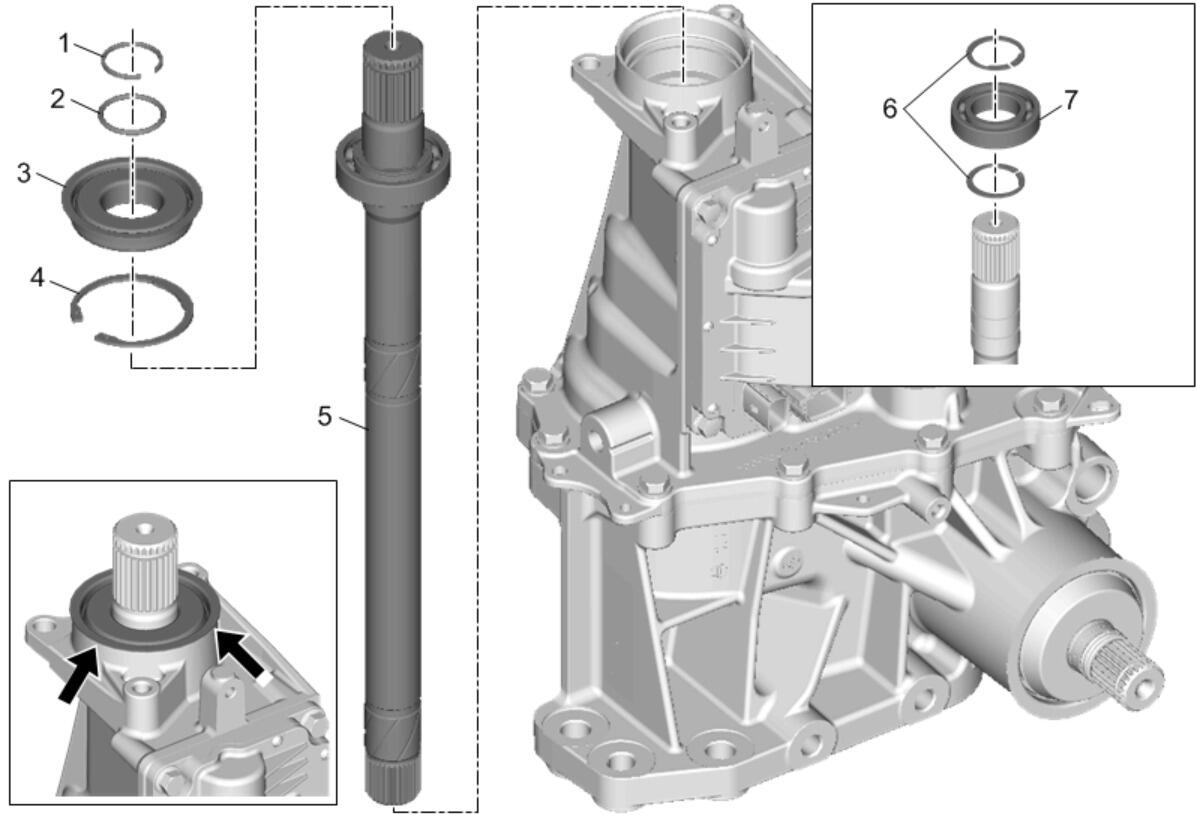

Callout	Component Name
1	Power Transfer Unit Half Shaft Retainer Clip Procedure Remove and DISCARD the retainer.
2	Power Transfer Unit Half Shaft Seal O-Ring Procedure Remove and DISCARD the O-ring seal.
3	Power Transfer Unit Cover to Intermediate Drive Shaft Seal NOTE: Push the OD flange of the seal to remove from extension housing and shaft.
4	Power Transfer Unit Intermediate Drive Shaft Clip
5	Power Transfer Unit Intermediate Drive Shaft Assembly
6	Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring [2x] CAUTION: Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage.
7	Power Transfer Unit Intermediate Drive Shaft Bearing Procedure Use a press to remove the bearing from the power transfer unit intermediate drive shaft.
