Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)

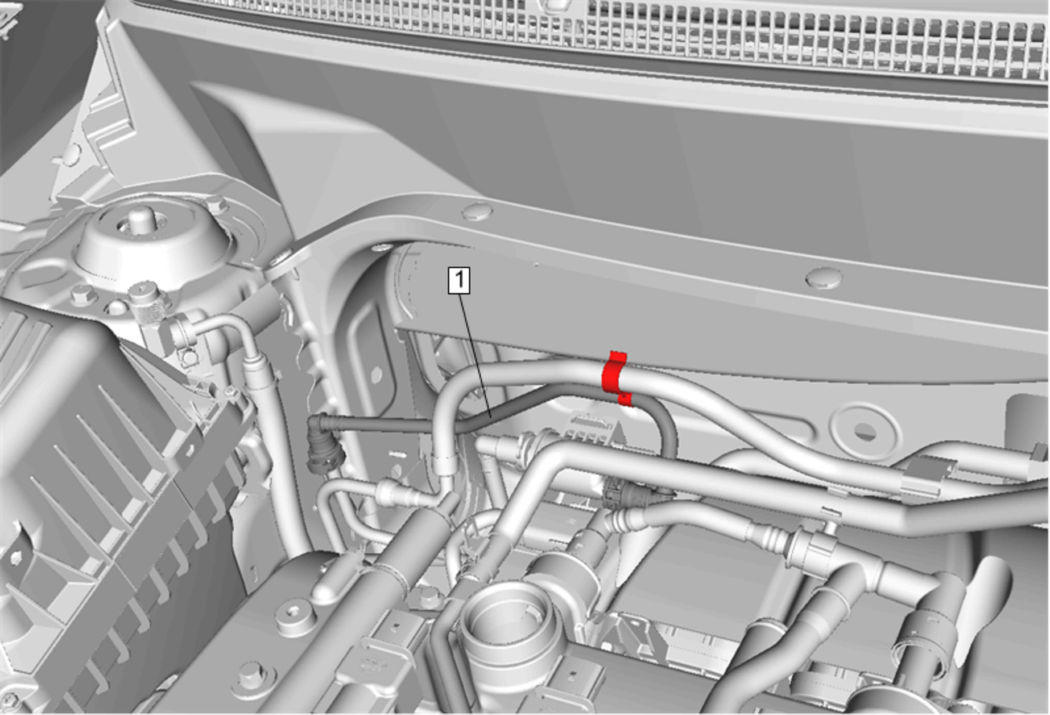

  2. GM4640422Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Front Hose (1) - Remove - Evaporative Emission Front Hose Replacement

  3. GM3829325Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Remove - Evaporative Emission Canister Purge Tube Replacement

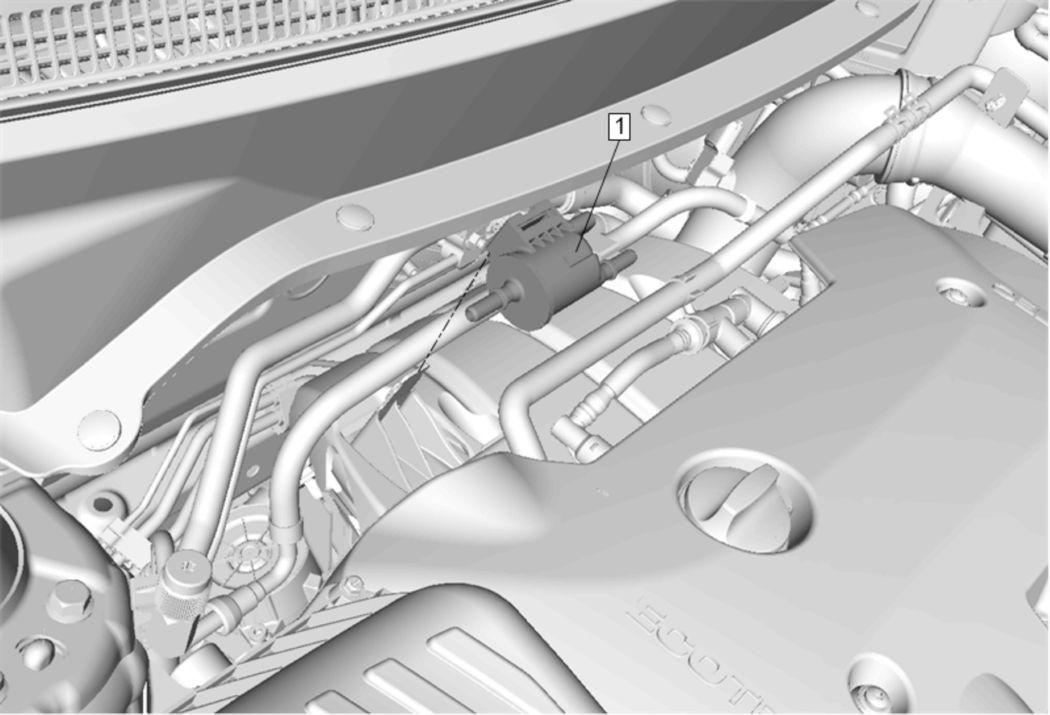

  4. GM4641391Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Solenoid Valve (1) - Remove - Evaporative Emission Canister Purge Solenoid Valve Replacement

  5. Drive Belt (1) - Remove - Drive Belt Replacement

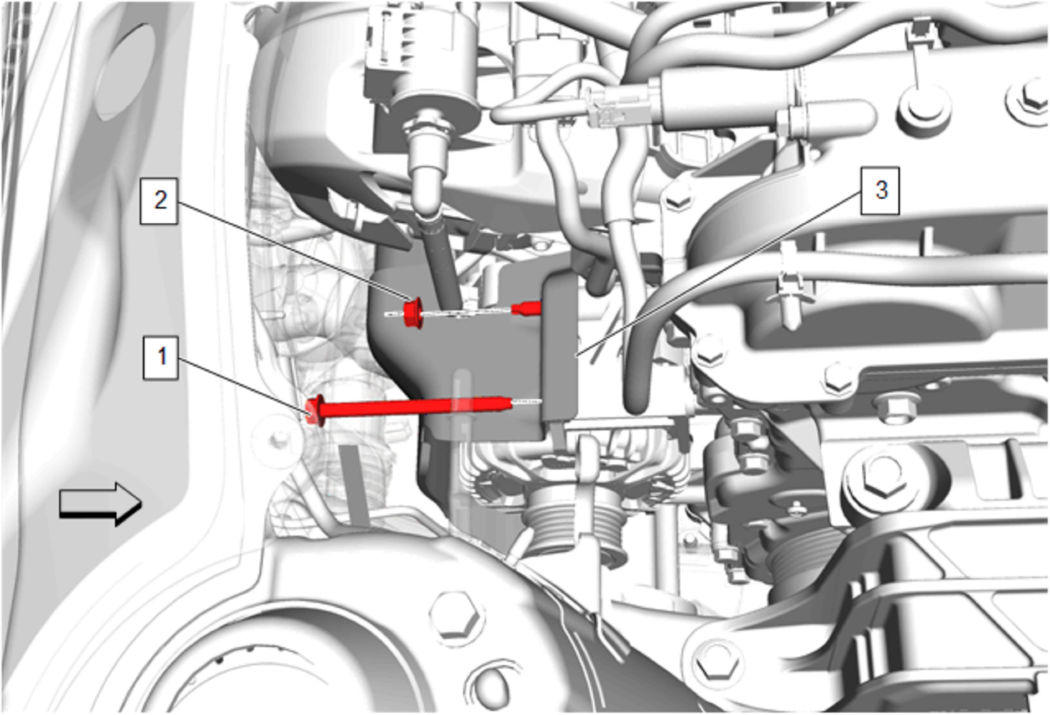

  6. GM5285312Courtesy of GENERAL MOTORS COMPANY

    Generator Shield (3) - Remove - Generator Shield Replacement (LTG)

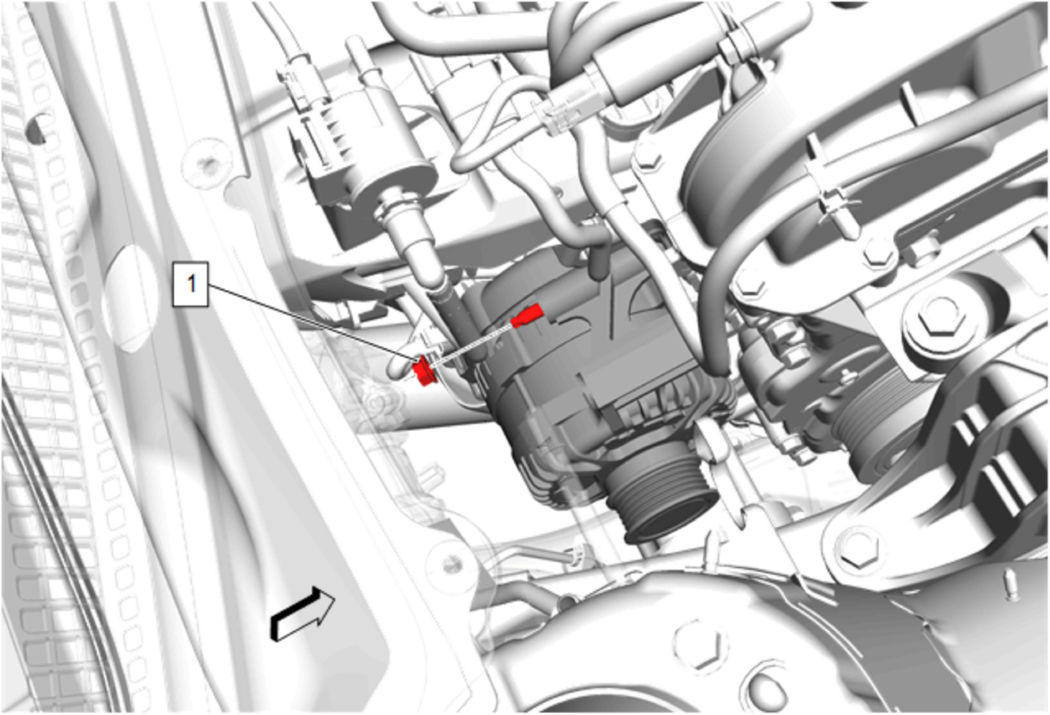

  7. GM5285366Courtesy of GENERAL MOTORS COMPANY

    Generator Nut (1) - Loosely install

  8. Raise and support the vehicle. Lifting and Jacking the Vehicle

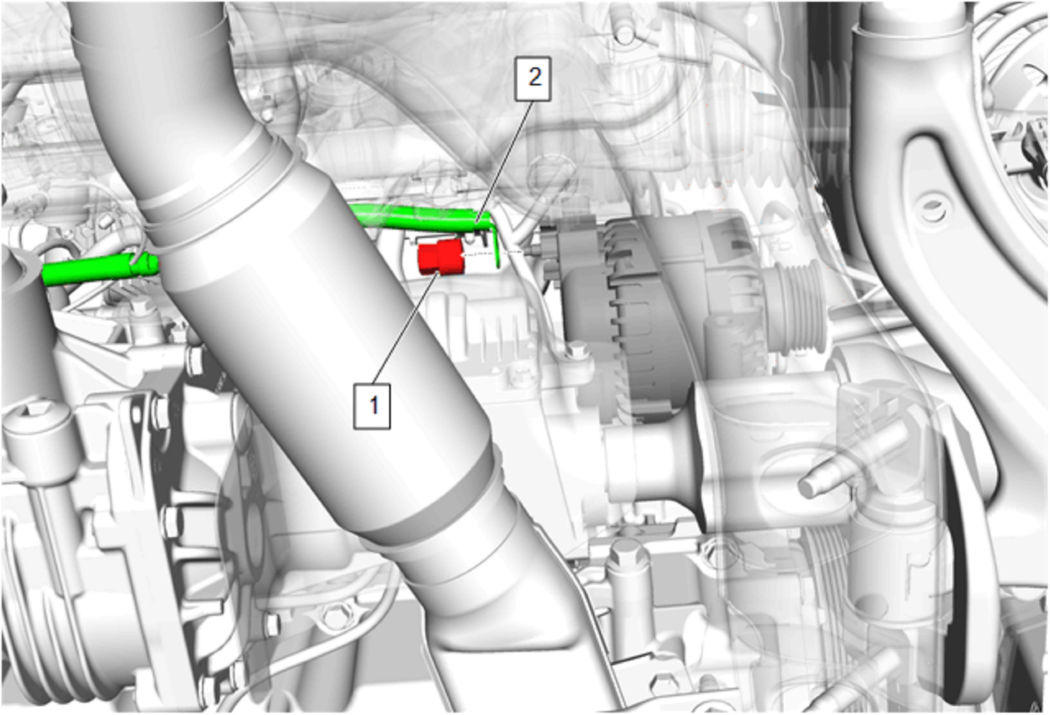

  9. GM5285415Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (1) - Remove

  10. Starter Solenoid Cable (2) - Remove

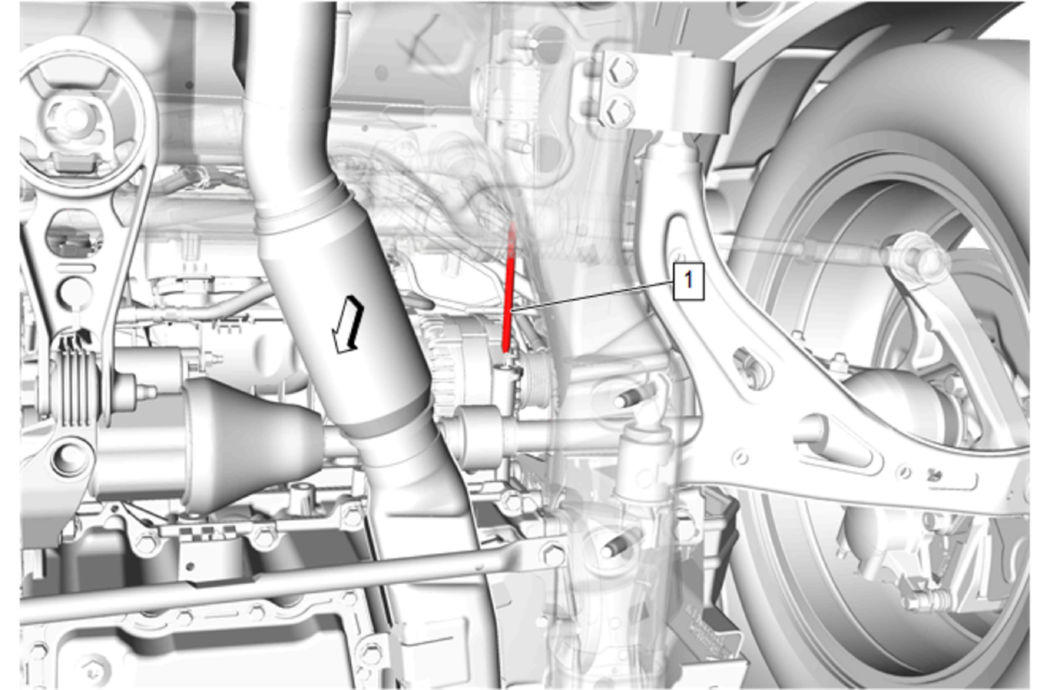

  11. GM5549470Courtesy of GENERAL MOTORS COMPANY

    Stud (1) - Remove

  12. Lower the vehicle.

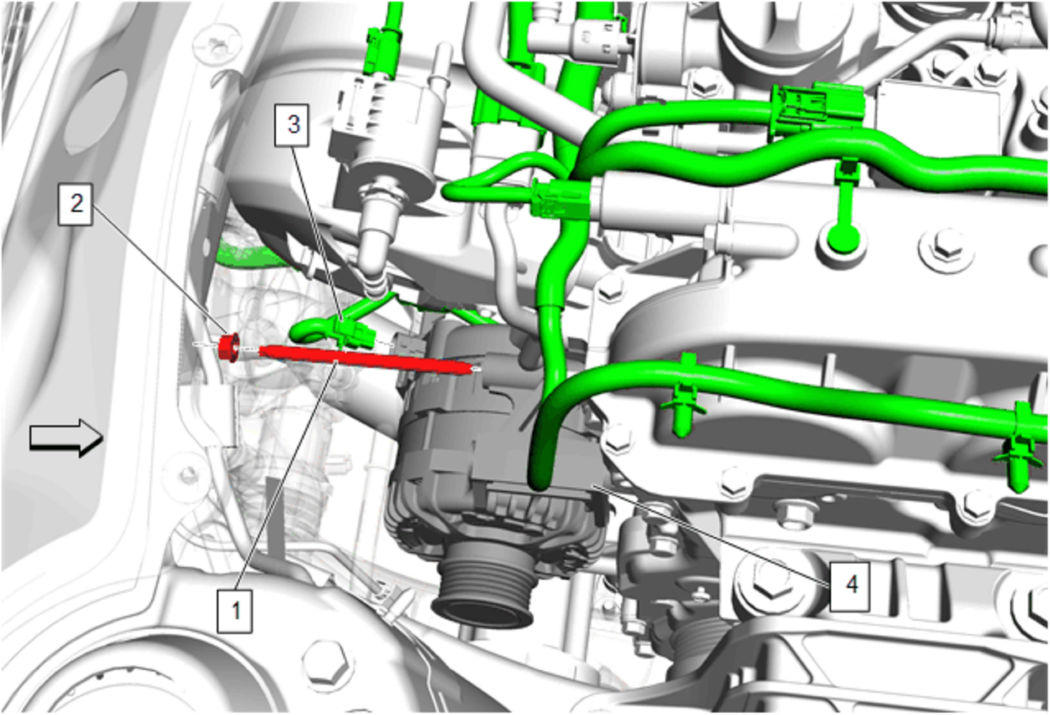

  13. GM5285495Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (3) - Disconnect

  14. Generator Nut (2) - Remove
  15. Stud (1) - Remove
    16. NOTE:

    It will be necessary to rotate and maneuver the generator in order to remove.

  16. Generator (4) - Remove
