Installation Procedure

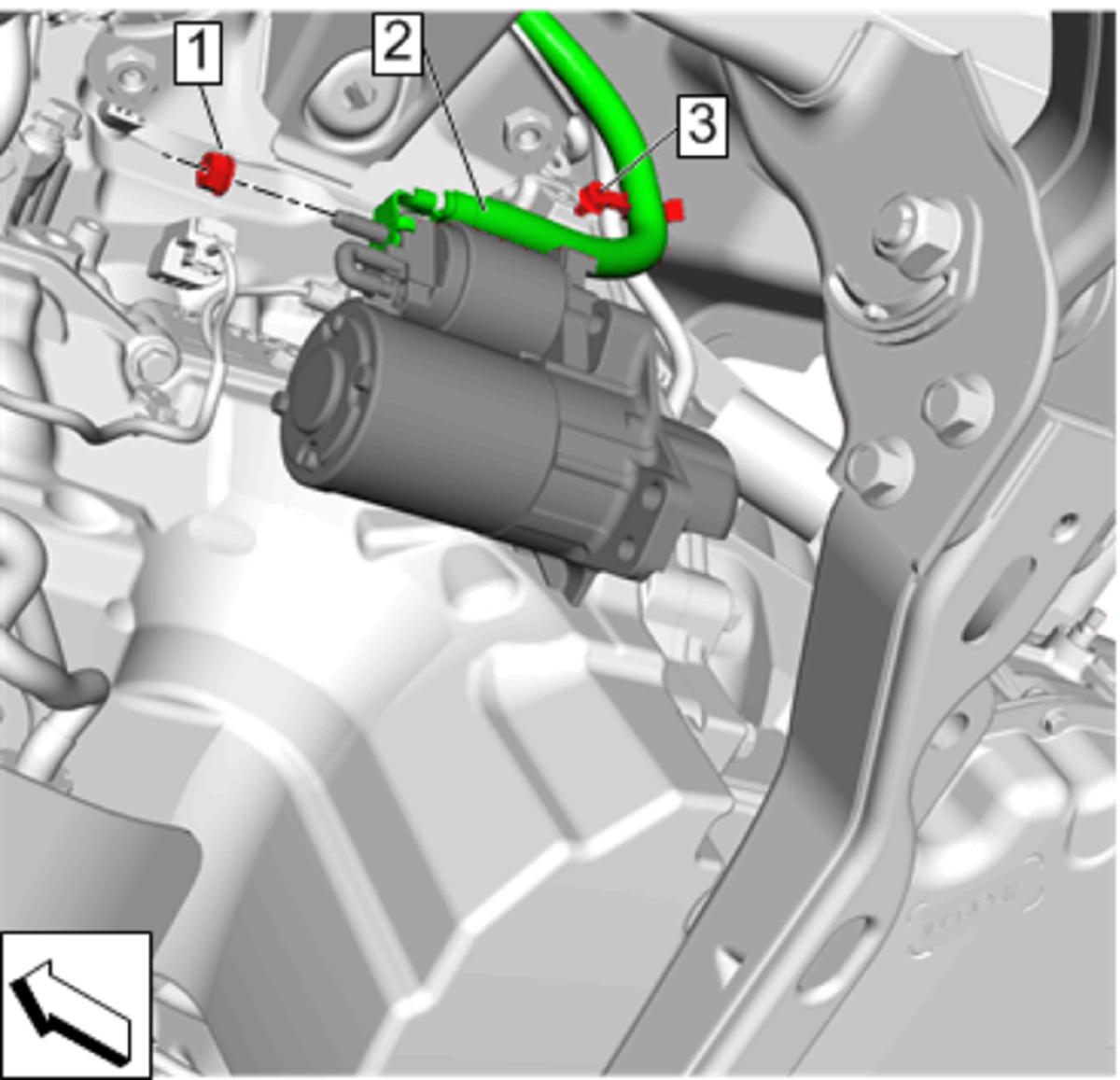

  1. GM4564135Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Positive Cable Nut (1) - Install and tighten 13 N.m (115 lb in)
  3. Retainer (3) - Engage

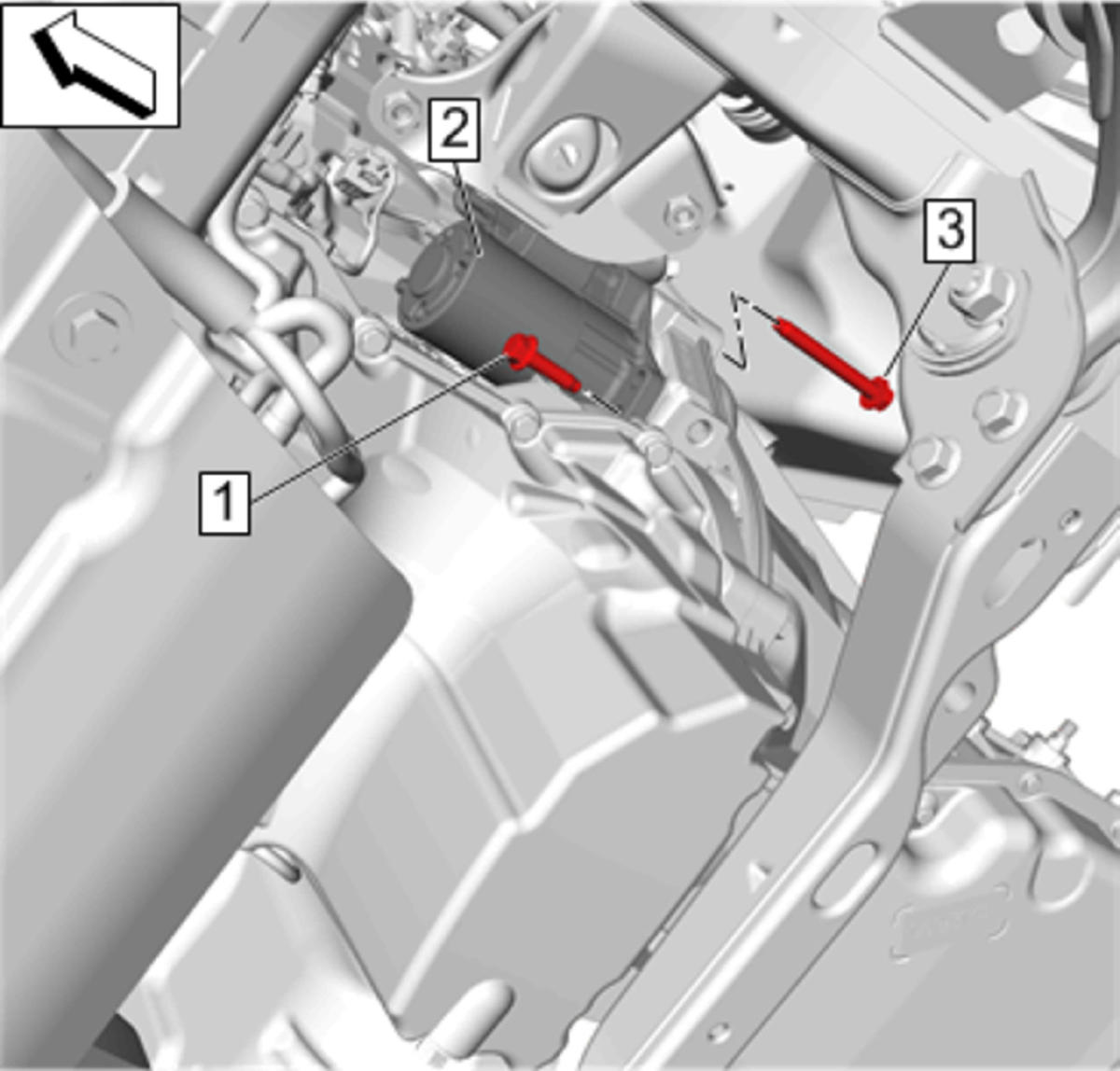

  4. GM4564140Courtesy of GENERAL MOTORS COMPANY

    Starter Mounting Bolt (1) - Install and tighten 58 N.m (43 lb ft)

  5. Starter Mounting Bolt (3) - Install and tighten 58 N.m (43 lb ft)
  6. Engine Mount Bracket-Left Side - Install - Engine Mount Bracket Replacement - Left Side

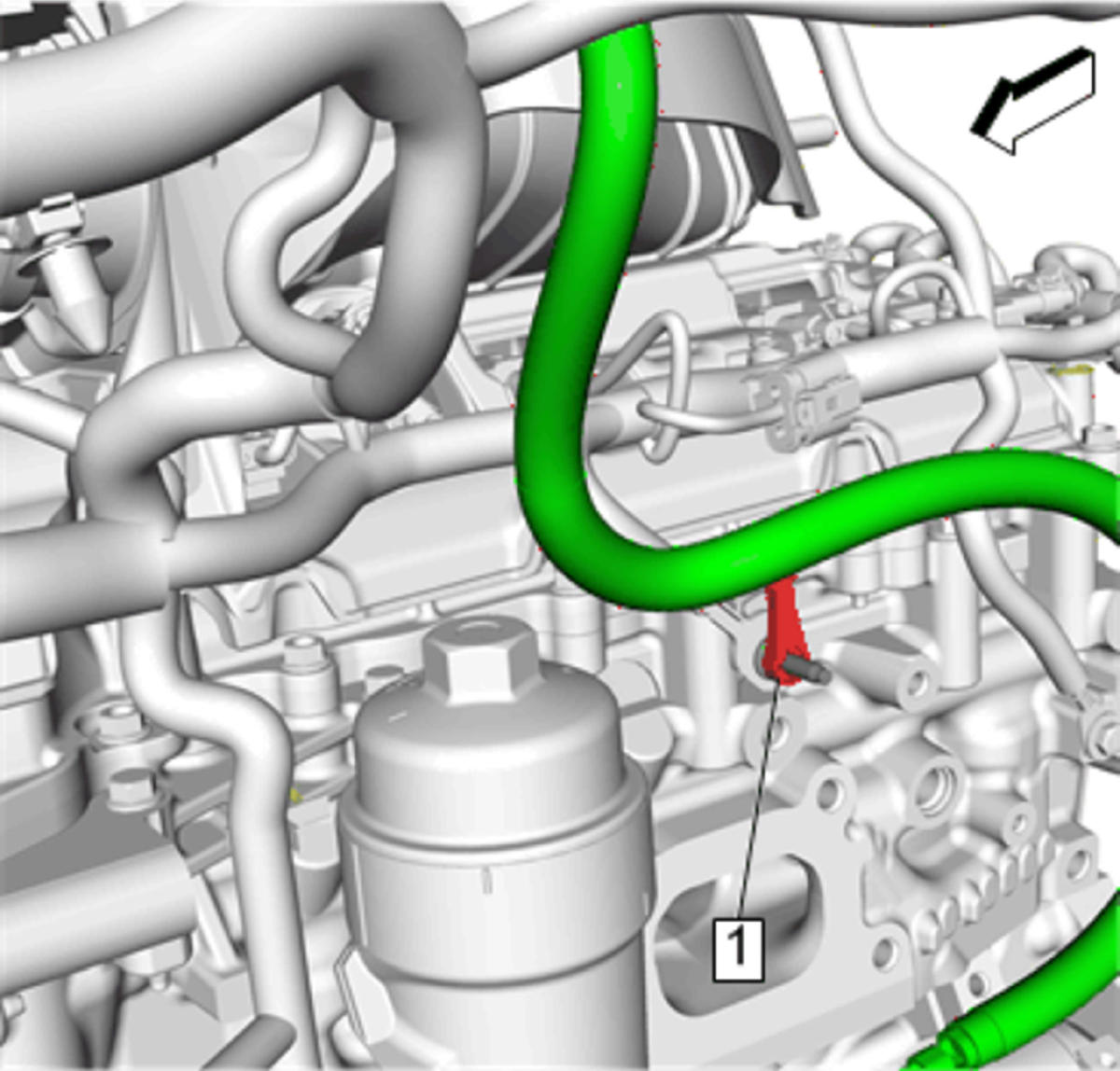

  7. GM4564134Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

  8. GM4564132Courtesy of GENERAL MOTORS COMPANY

    Retainer (1)@Battery Tray - Engage

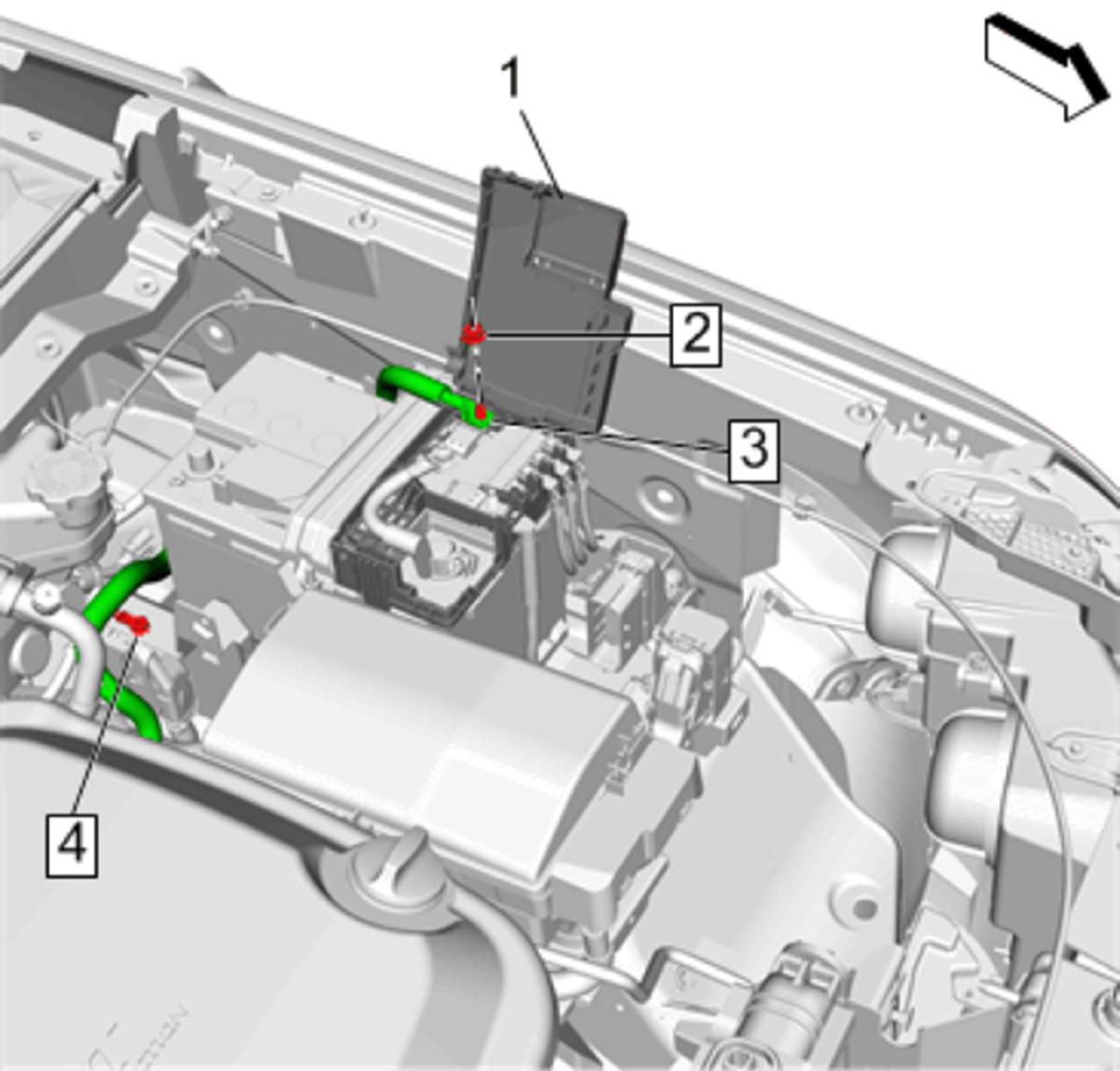

  9. GM4564131Courtesy of GENERAL MOTORS COMPANY

    Retainer (4) - Engage

  10. Battery Positive Cable (3) - Install
  11. Front Compartment Fuse Block Cable Nut (2) - Install and tighten 15 N.m (11 lb ft)
  12. Battery Distribution Fuse Block Cover (1) - Close
  13. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
