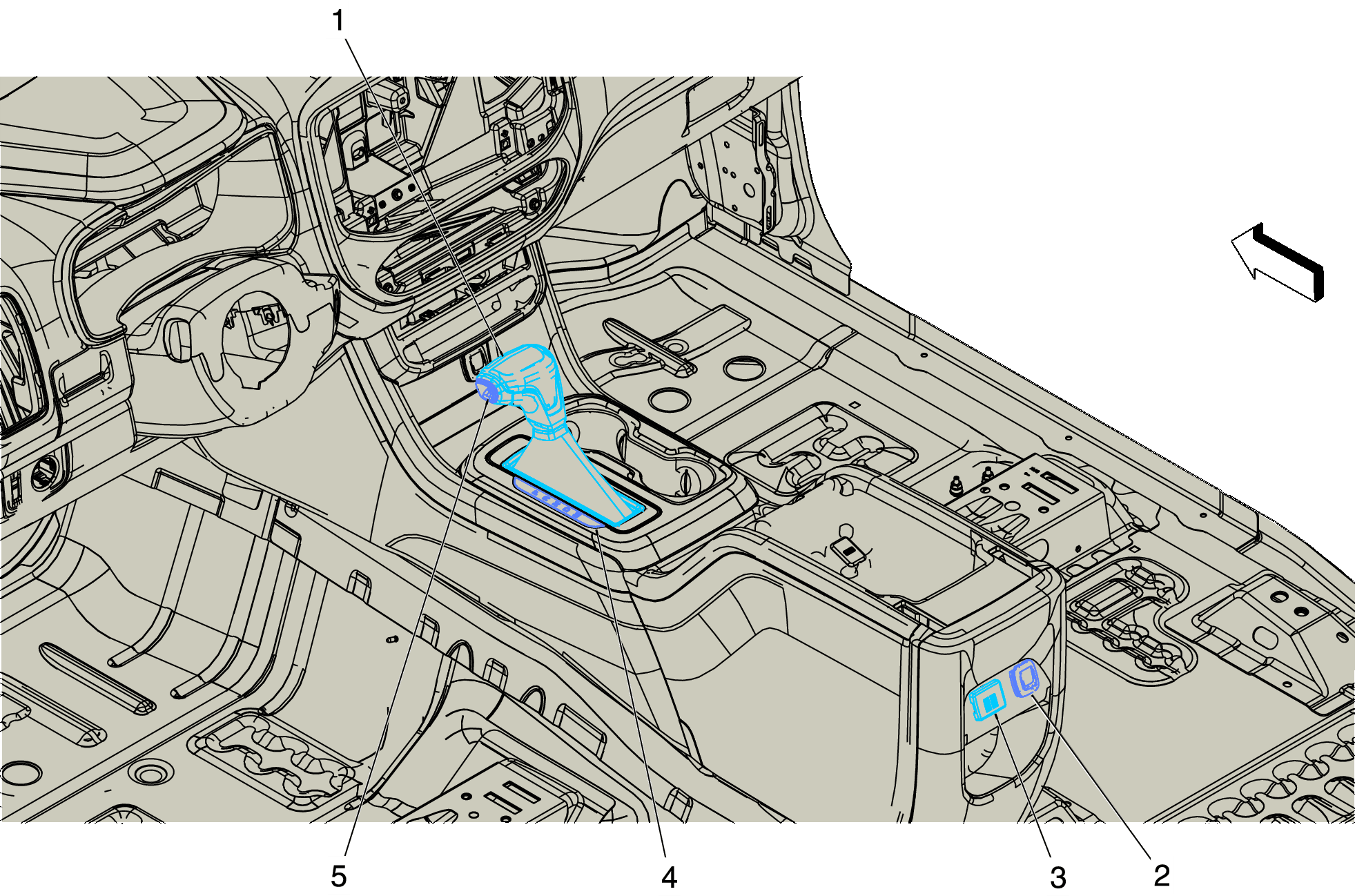

Center Console Components

GM5373268Courtesy of GENERAL MOTORS COMPANY
Center Console Components

Component Name Callout
S3 Transmission Shift Lever (MYB) S3 Transmission Shift Lever 1
X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2 2
X92C USB Receptacle - Center Console Rear X92C USB Receptacle - Center Console Rear 3
P2 Transmission Shift Lever Position Indicator (MYB) P2 Transmission Shift Lever Position Indicator 4
S2A Transmission Manual Shift Switch - Up/Down (MYB) 5
