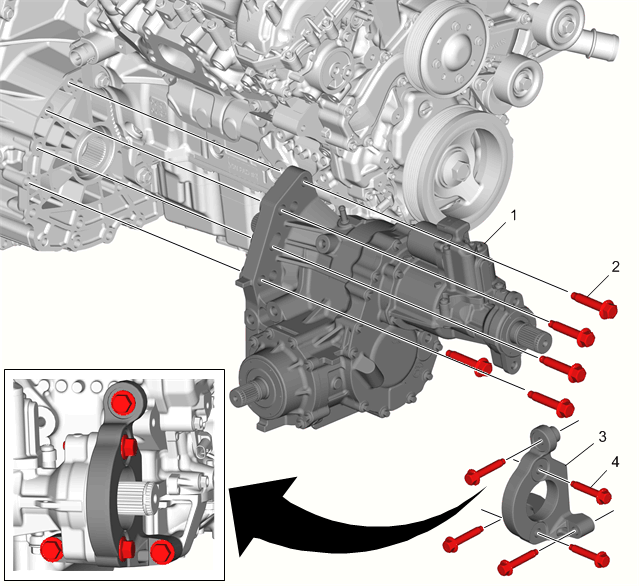

Power Transfer Unit Mounting (with Transmission)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Power Transfer Unit Case |
| 2 |
Power Transfer Unit Bolt [5x] |
| 3 |
Transaxle Brace-to-Engine Bolt |
| 4 |
Transfer Case-to-Transmission Bolt [5x] |
