Power, Ground, Serial Data and Front Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

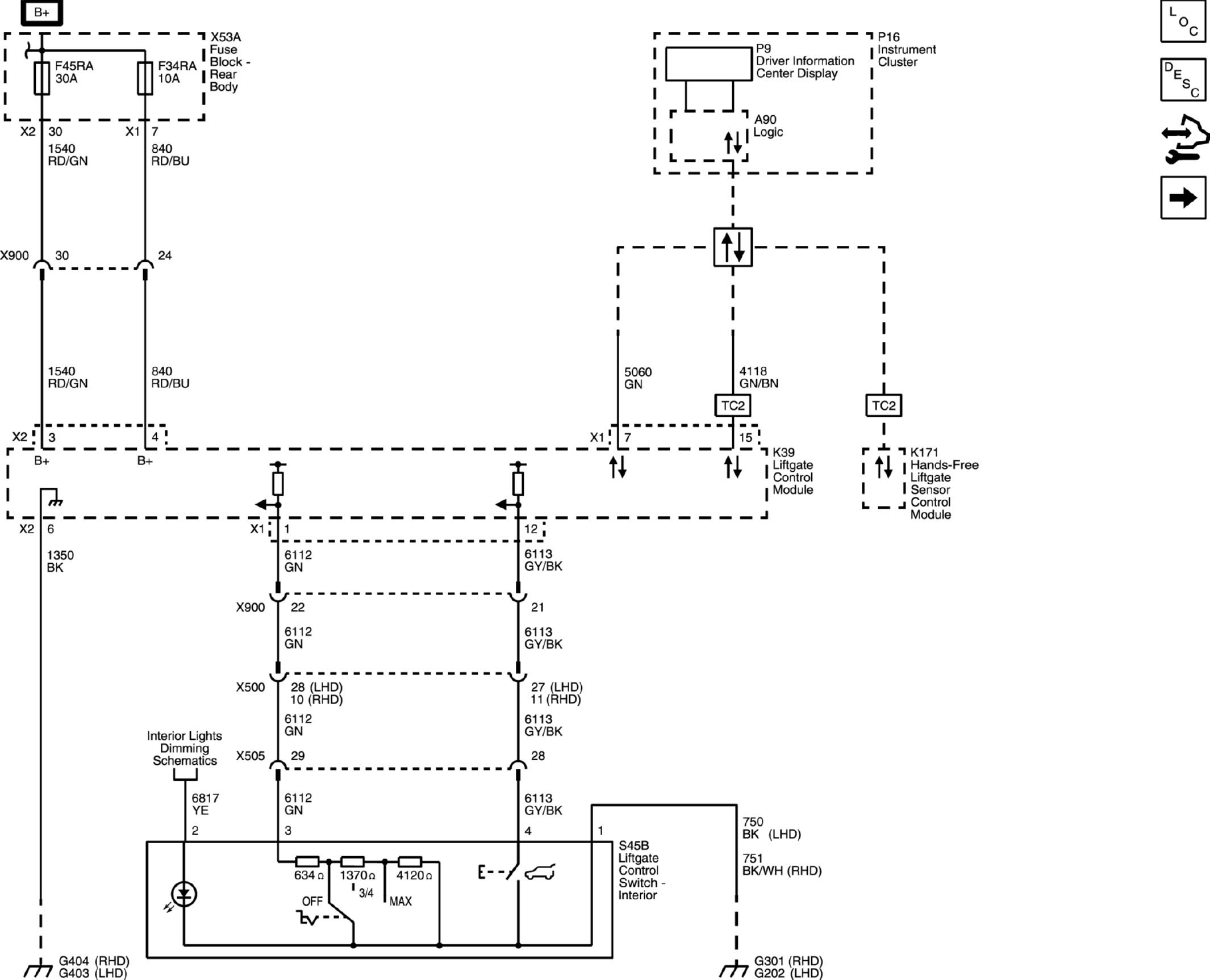

Power, Ground, Serial Data and Front Controls
Courtesy of GENERAL MOTORS COMPANY
