Installation Procedure

Connect the power transfer unit vent hose assembly to the power transfer unit.
Lower the vehicle. Lifting and Jacking the Vehicle

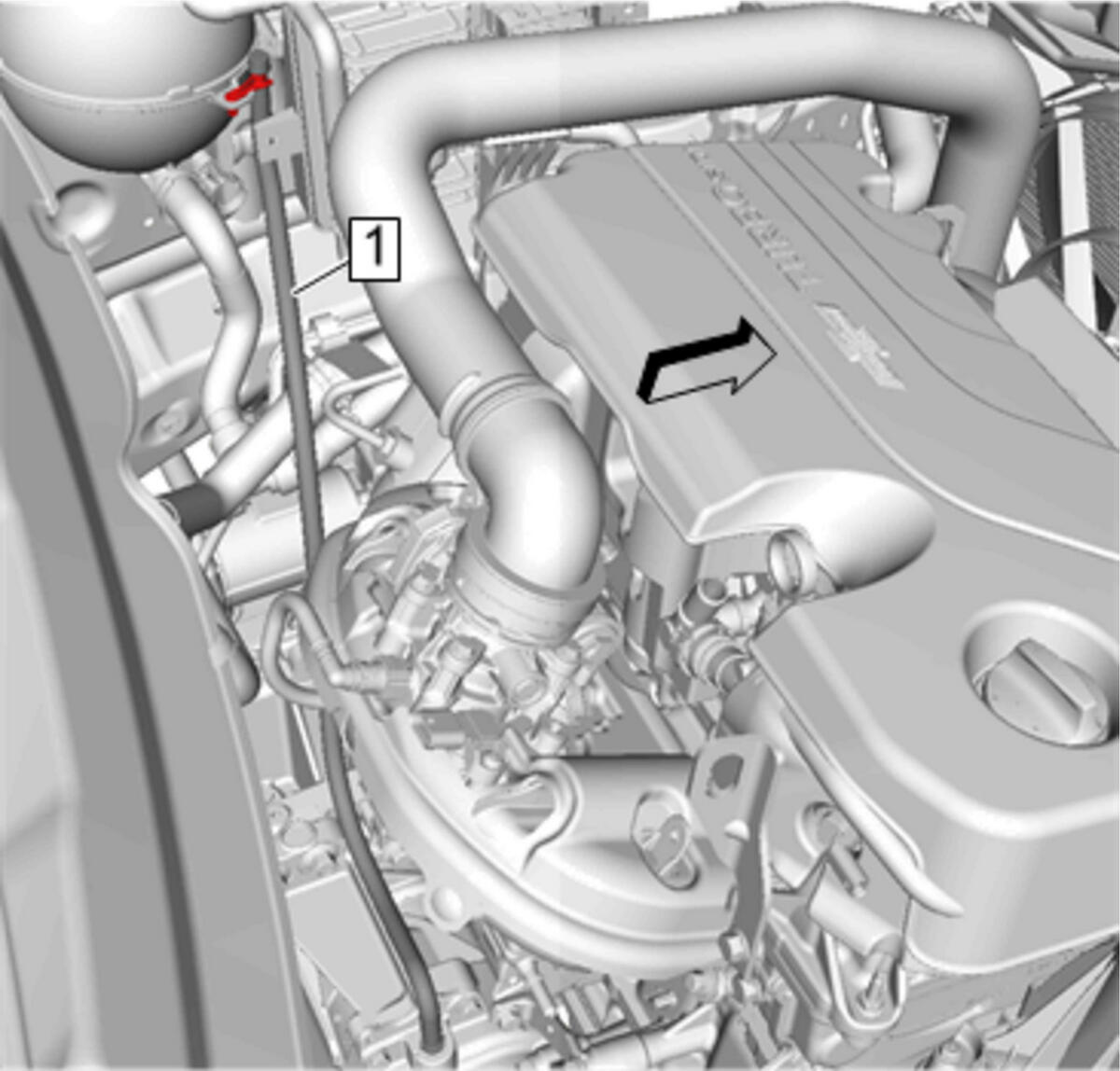

Connect the power transfer unit vent hose assembly (1) to the radiator surge tank assembly.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the vent hoses are free of kinks and routed clear of sharp objects.
