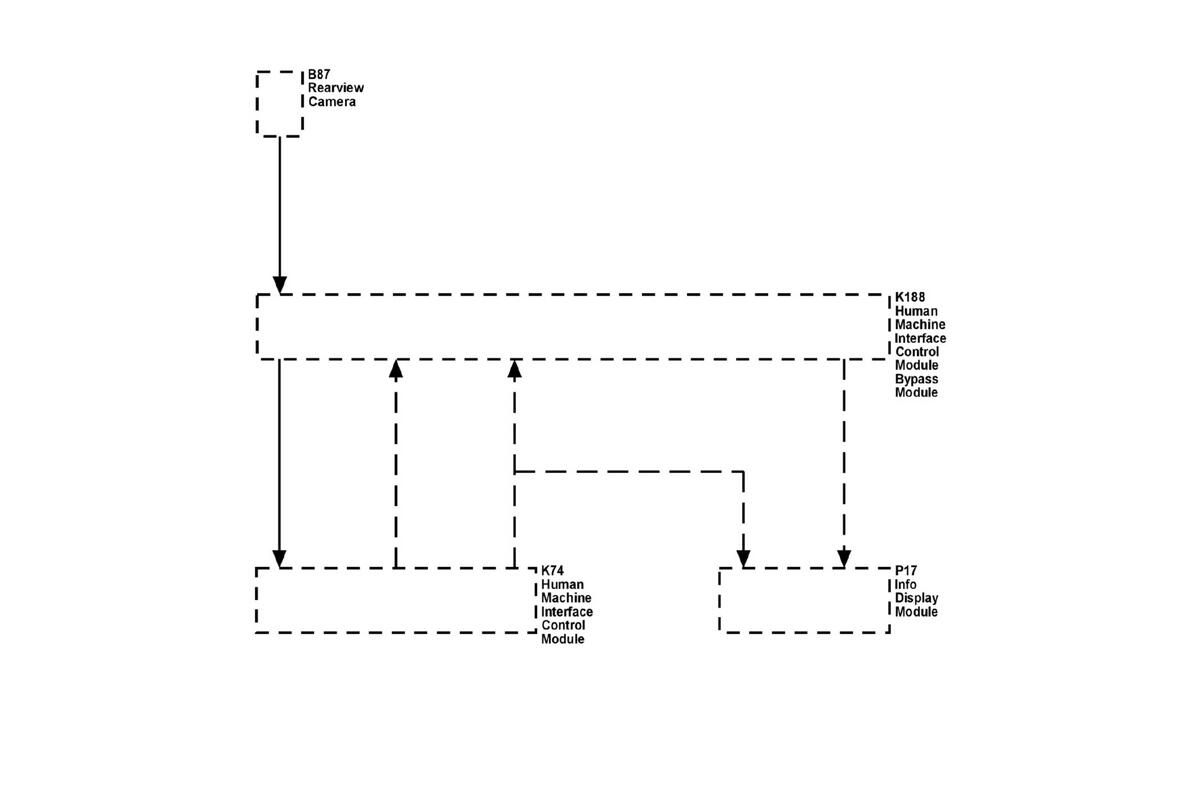

Rear Vision Camera Description And Operation (IO5/IO6 With MAH/MBC): Notes
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| K188 |
K188 Human Machine Interface Control Module Bypass Module |
| B87 |
B87 Rearview Camera |
| K74 |
K74 Human Machine Interface Control Module |
| P17 |
P17 Info Display Module |
