Low Frequency Rear Compartment Antenna Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement

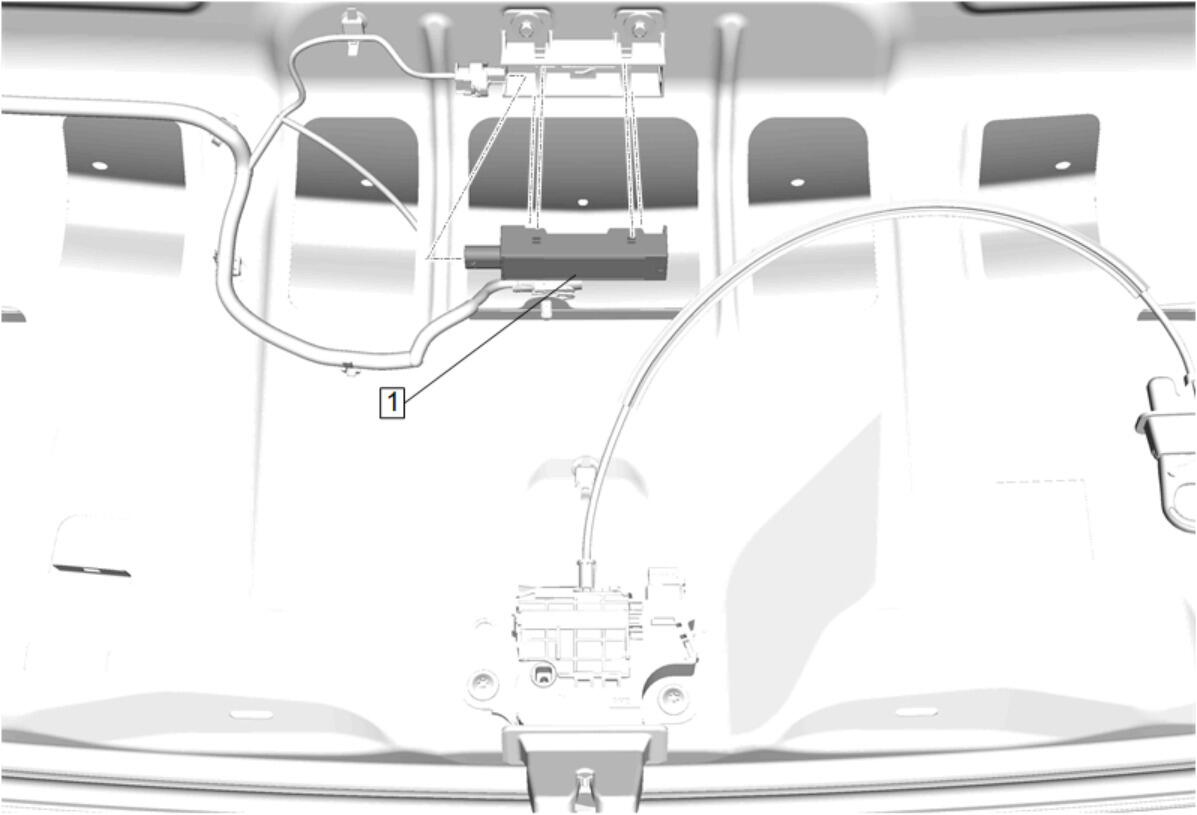

1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Compartment Lid Inner Panel Trim Replacement

Low Frequency Rear Compartment Antenna

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
