Removal Procedure
- Air Cleaner Assembly (2) - Remove - Air Cleaner Assembly Replacement
.
- Intake Manifold Cover - Remove - Intake Manifold Cover Replacement .
- If necessary, disconnect the fuel feed pipe and reposition. Fuel Feed Front Pipe Replacement .
- Raise and support the vehicle. Lifting and Jacking the Vehicle .

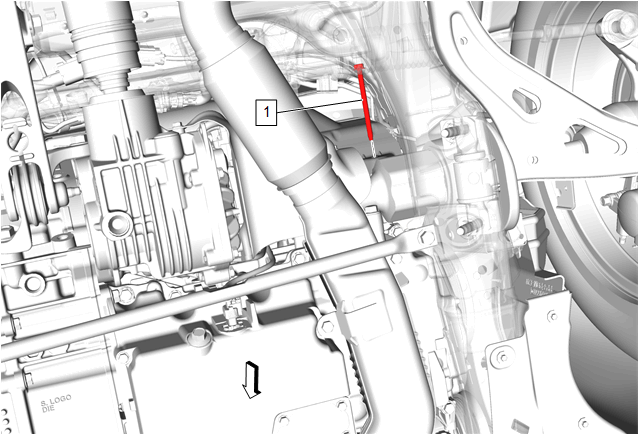

- Generator Bolt (1) - Remove
- Lower the vehicle.
- Generator Bolt (1) - Remove
- Generator Nut (2) - Remove
- Generator Shield (3) - Remove
