Engine Controls And Fuel - 5.3L (L83) - Engine Controls Schematics
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Module Power, Ground, Serial Data and MIL
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

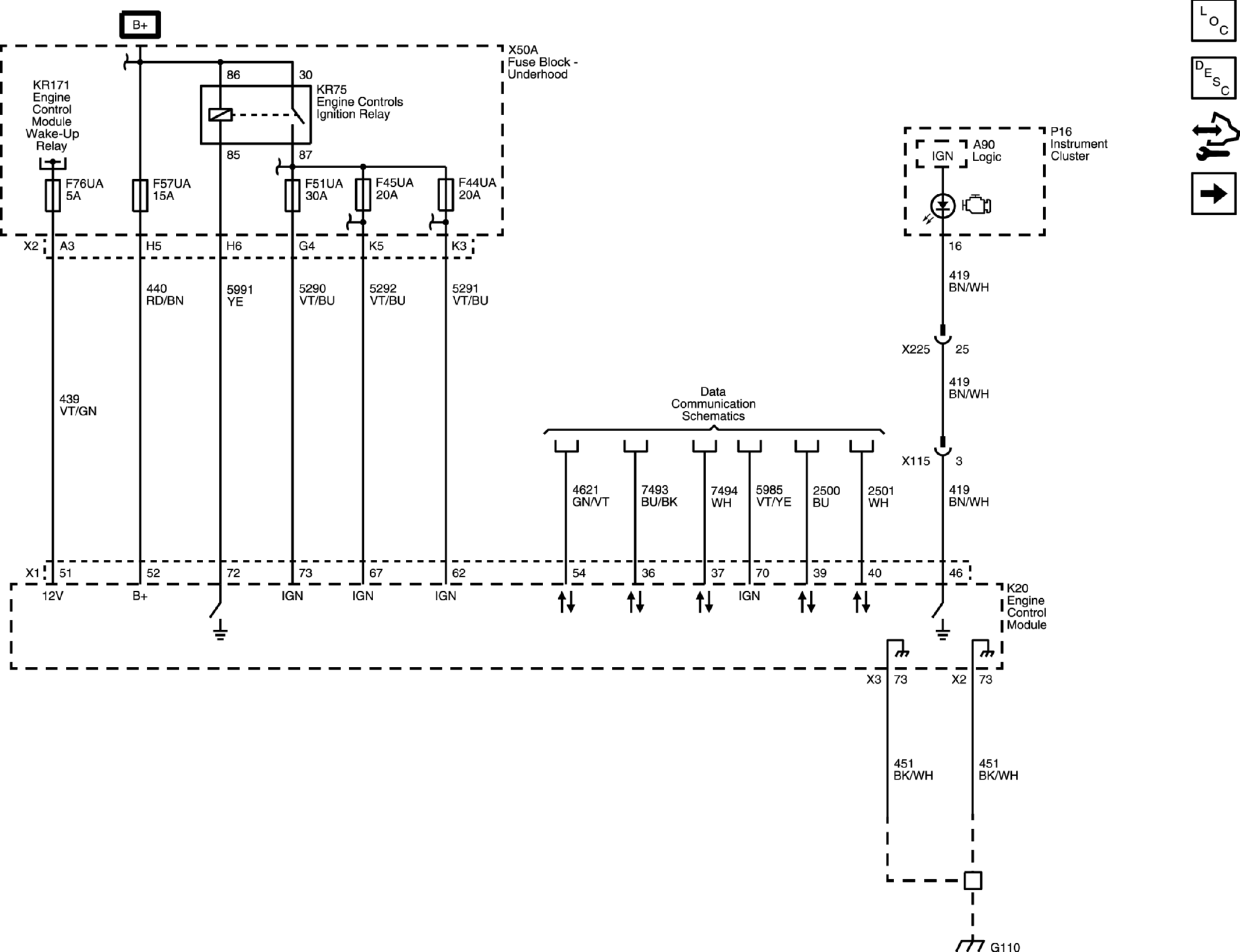

Module Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS COMPANY
