Installation Procedure

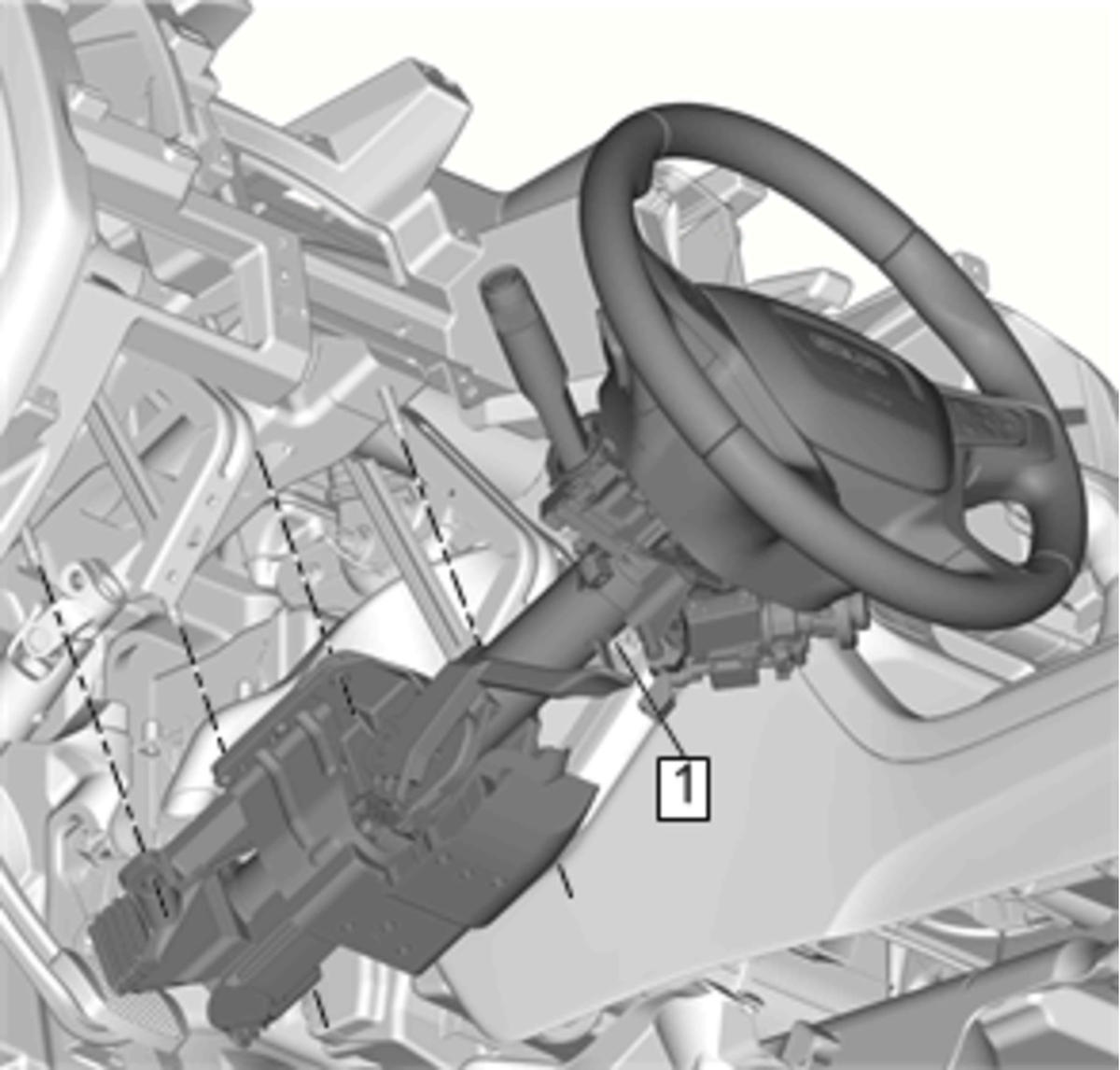

  1. GM3742758Courtesy of GENERAL MOTORS COMPANY

    Position the steering column (1) in the vehicle.

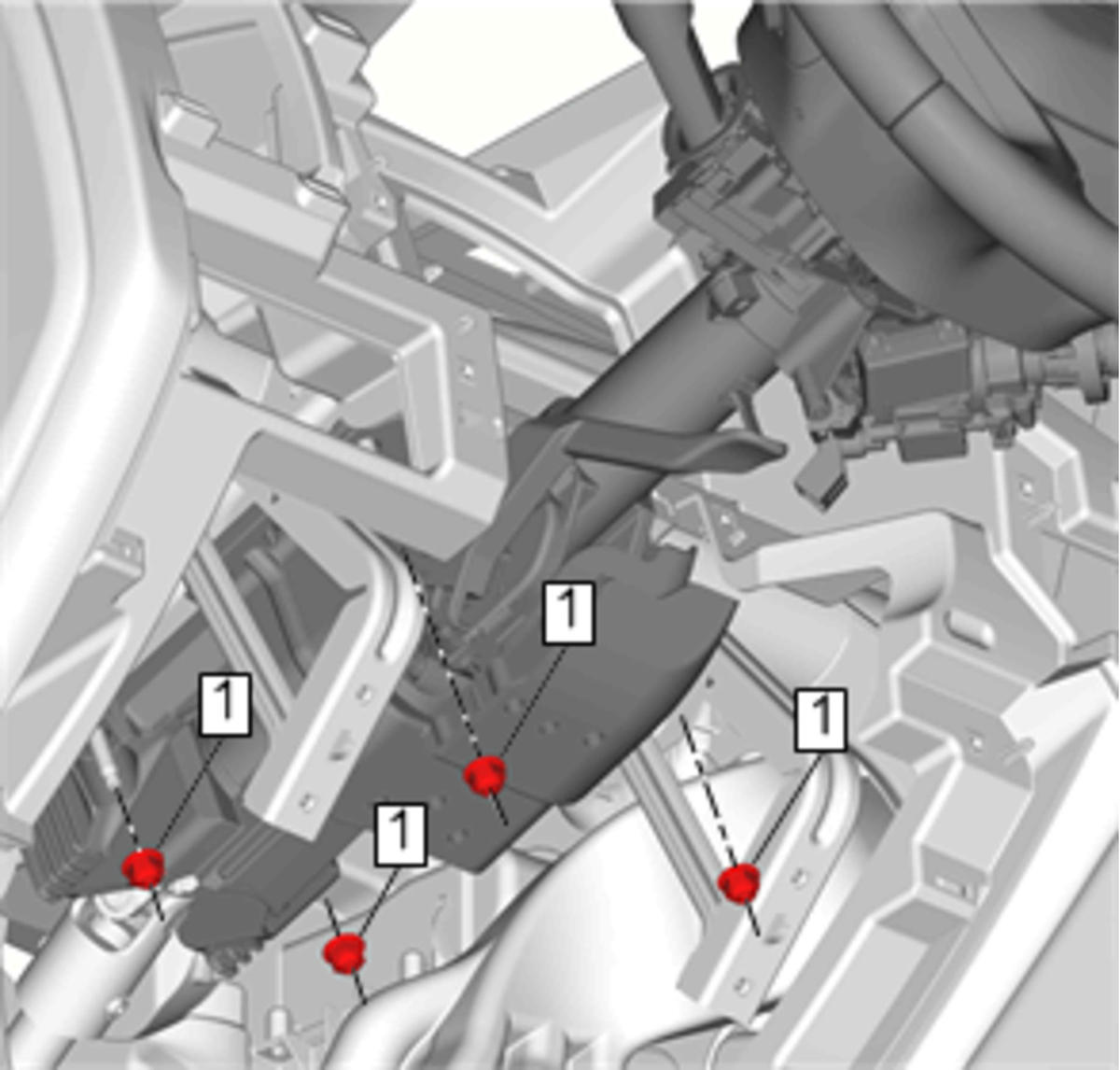

  2. GM3742754Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Nut (1) - Install and tighten [4x] 22 N.m (16 lb ft)

  3. Connect the steering column electrical connectors.
  4. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement

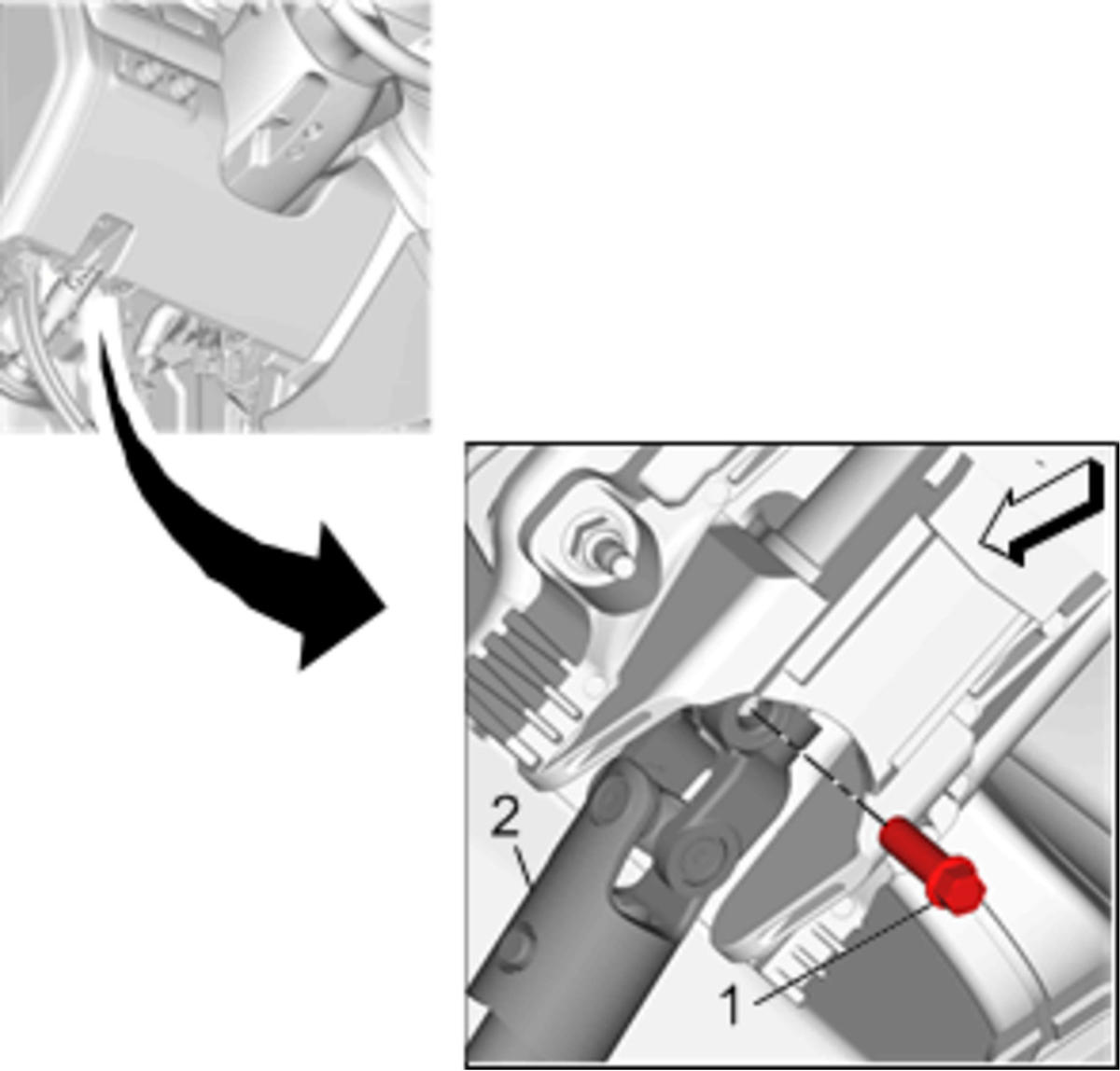

  5. GM3742737Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft (2) @Steering Column - Install - Intermediate Steering Shaft Replacement

  6. Instrument Panel Steering Column Opening Closeout - Install - Instrument Panel Steering Column Opening Closeout Replacement
  7. Instrument Panel Assembly - Install - Instrument Panel Assembly Replacement
