Engine Controls And Fuel - 2.5L (LCV) - Engine Controls Wiring Schematics
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Pump Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

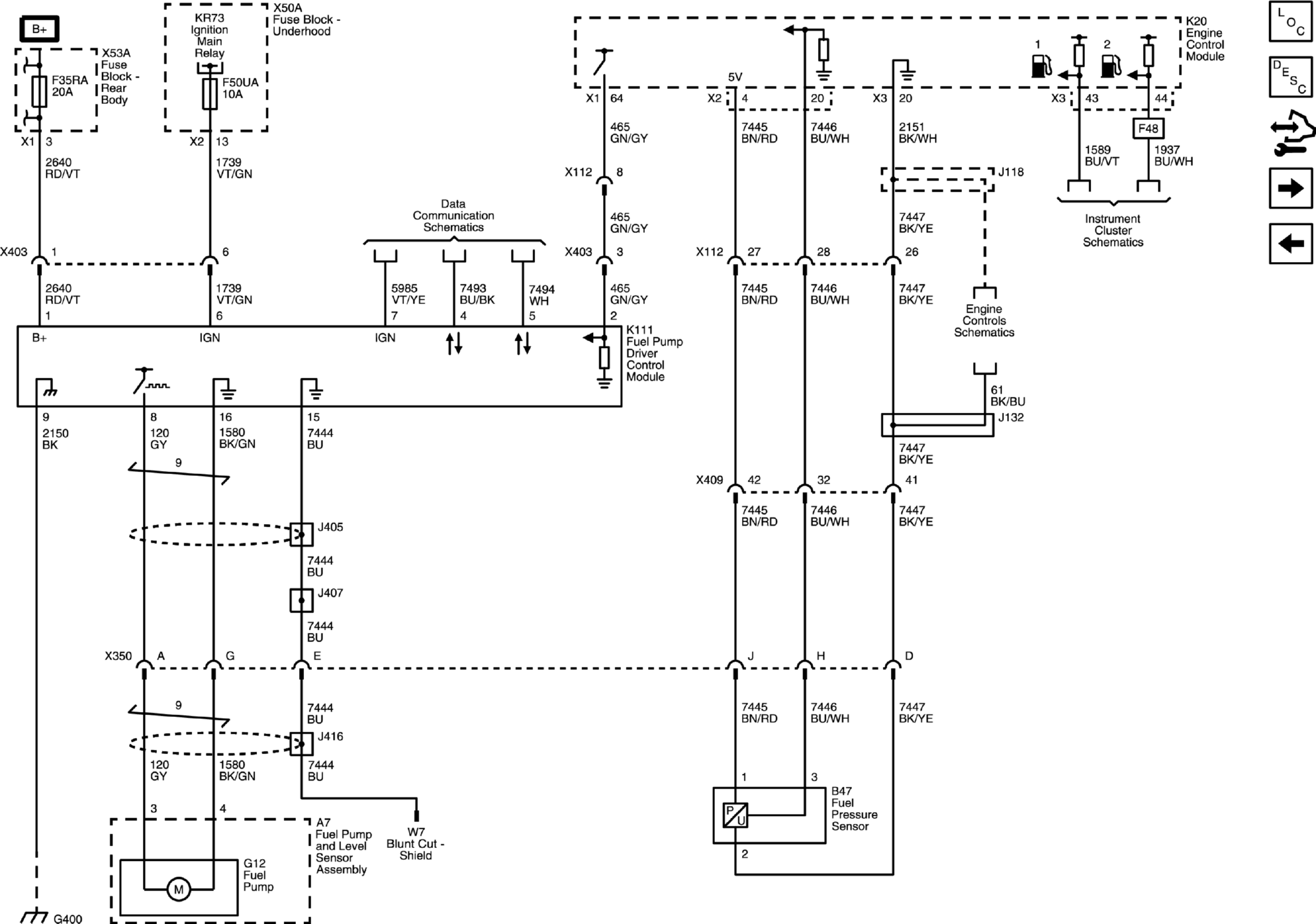

Fuel Controls - Fuel Pump Controls
Courtesy of GENERAL MOTORS COMPANY
