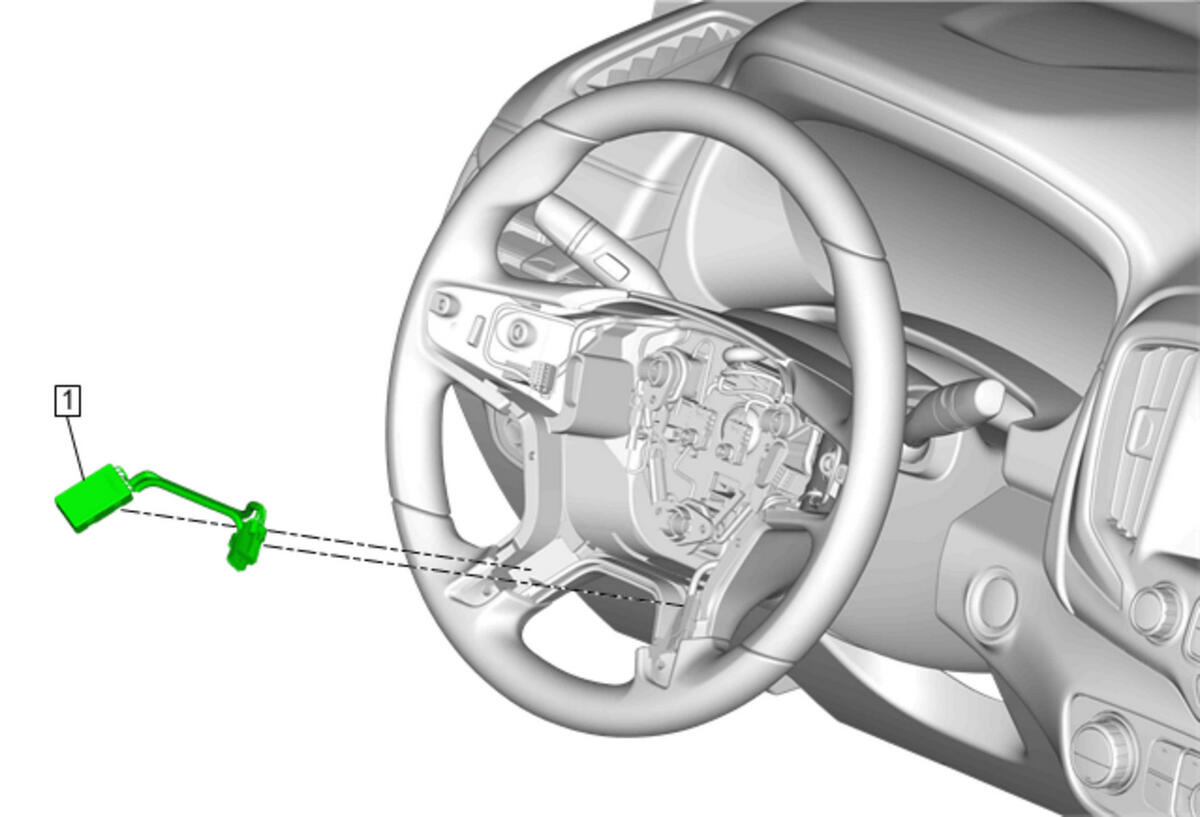

Steering Wheel Heat Control Module Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement (Terrain) |
| 1 |
Steering Wheel Heat Control Module Procedure
- Disconnect the electrical connectors.
- Remove the steering wheel heat control module wiring harness from the steering wheel.
- Remove the steering wheel heat control module from the steering wheel.
|
