Left Rear Of The Engine (LTG)

Left Rear Of The Engine (LTG)

Items
1. G18 High Pressure Fuel Pump (LTG/LYX) G18 High Pressure Fuel Pump (LTG/LYX)
2. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
3. Q38 Throttle Body Q38 Throttle Body (LTG/LYX)
4. B74 Manifold Absolute Pressure Sensor (LTG) B74 Manifold Absolute Pressure Sensor (LTG)
5. M115 Power Transfer Unit Shift Actuator (F48) M115 Power Transfer Unit Shift Actuator X1 (F48)M115 Power Transfer Unit Shift Actuator X2 (F48)
6. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LTG)

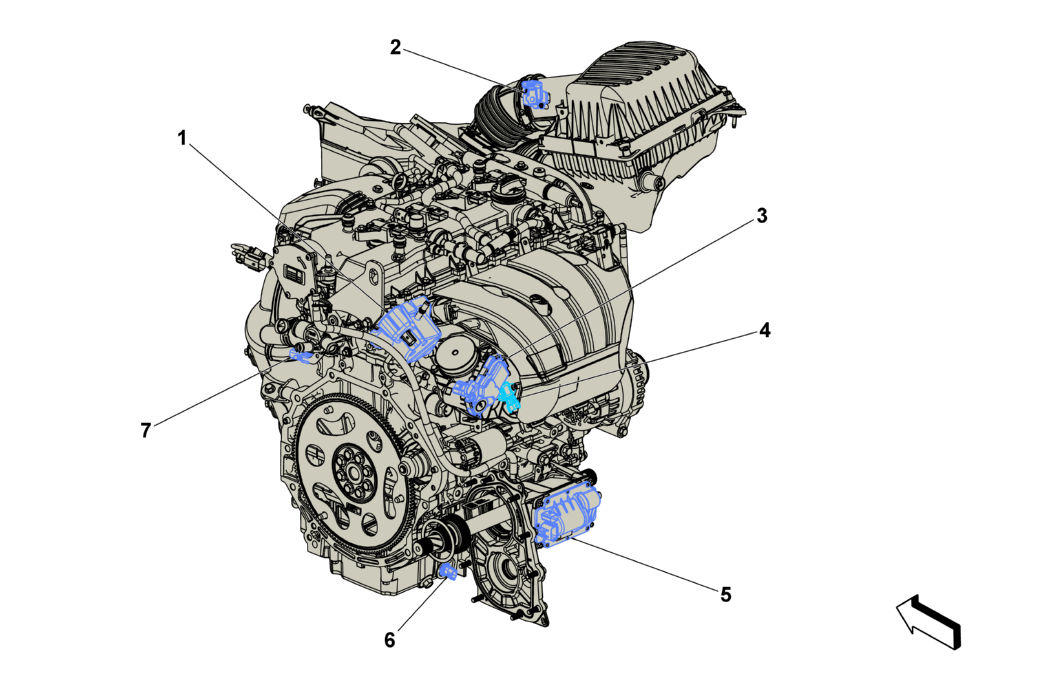

Fig 1: Left Rear Of The Engine (LTG)
GM4585876Courtesy of GENERAL MOTORS COMPANY
