Cruise Control Steering Wheel Controls

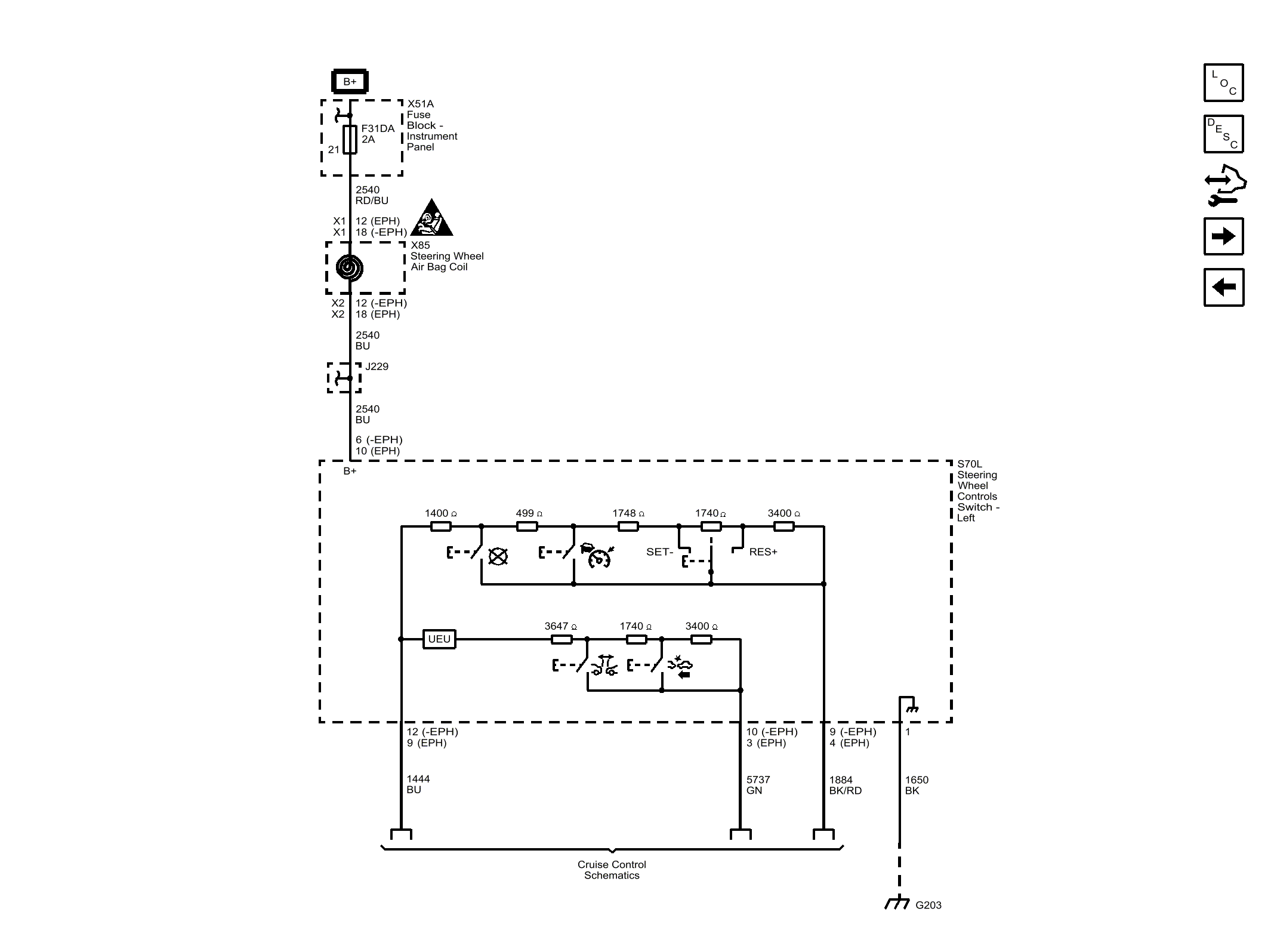

Fig 1: Cruise Control Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
