Low Frequency Console Antenna Replacement (All Terrain)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

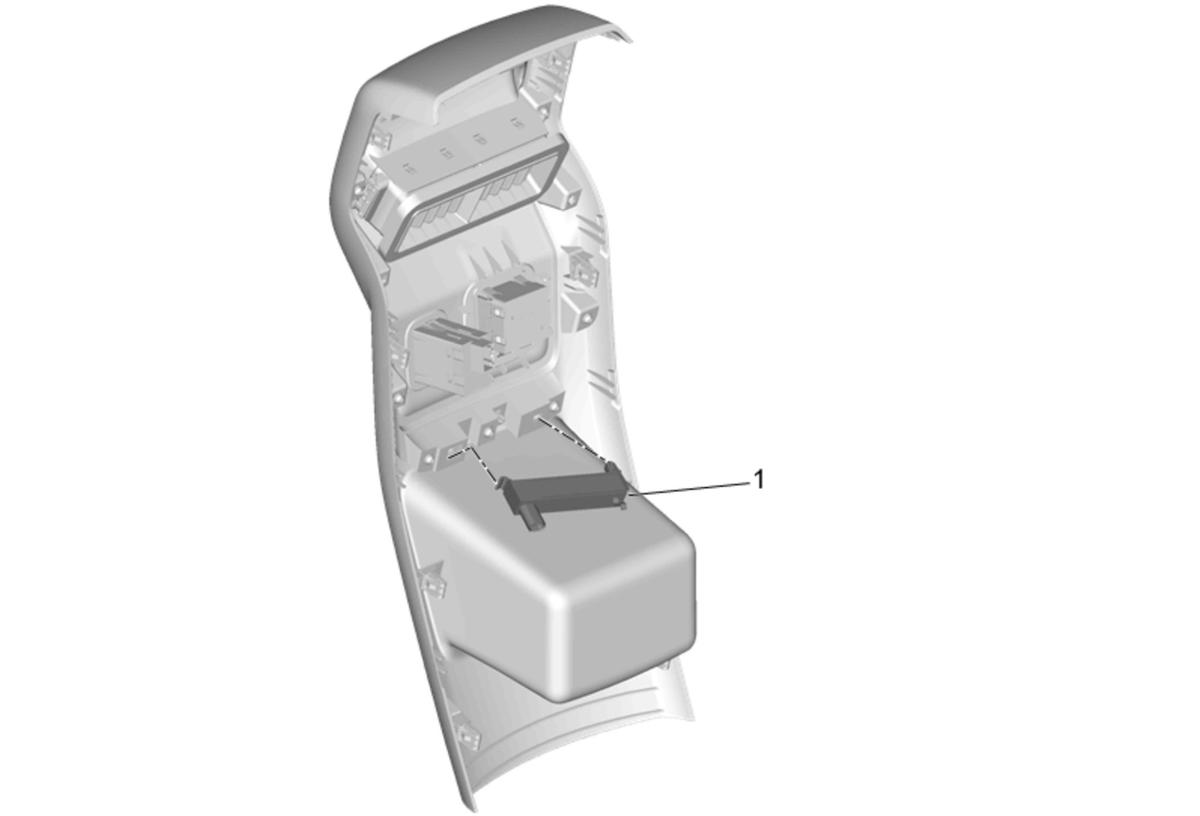

Fig 1: Low Frequency Console Antenna (All Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement
1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement

Low Frequency Console Antenna

Procedure

Disconnect the electrical connector.
Release the retaining tab.
