Radio Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Remove Radio Bracket. Refer to Radio Bracket Replacement |

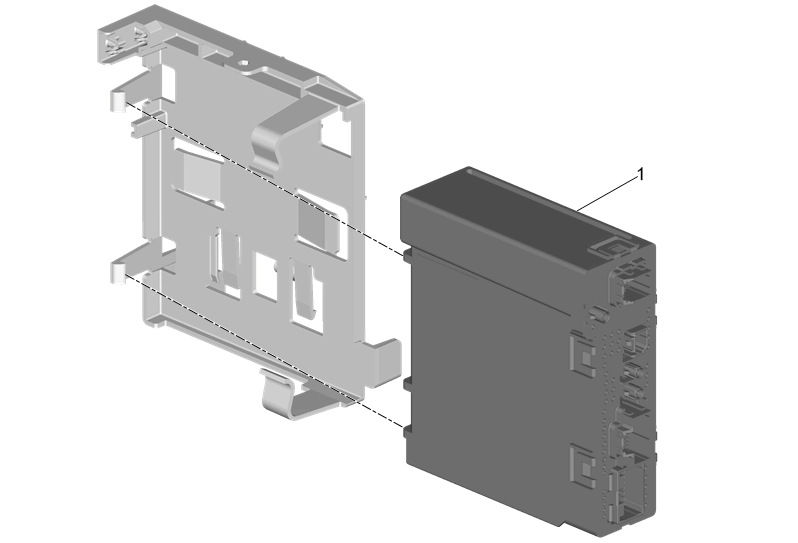

| 1 |
Radio Procedure
- Release the retaining tabs.
- Perform the necessary programming and setup procedure: Control Module References
|
