Collision Avoidance - Module Power, Ground, and Serial Data (UGN)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

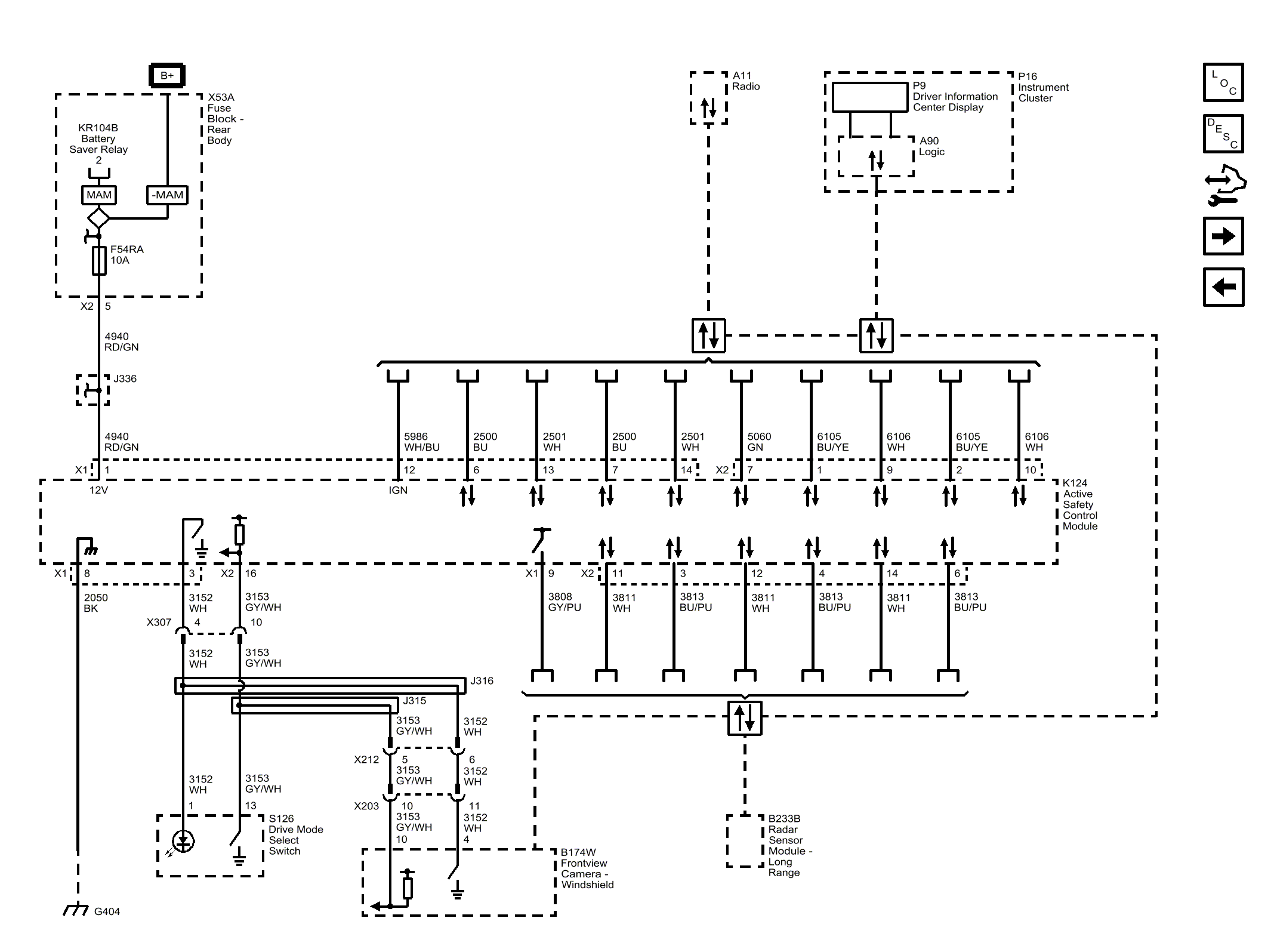

Fig 1: Collision Avoidance - Module Power, Ground, and Serial Data (UGN)
