Rear Parking Assist Alarm Sensor Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

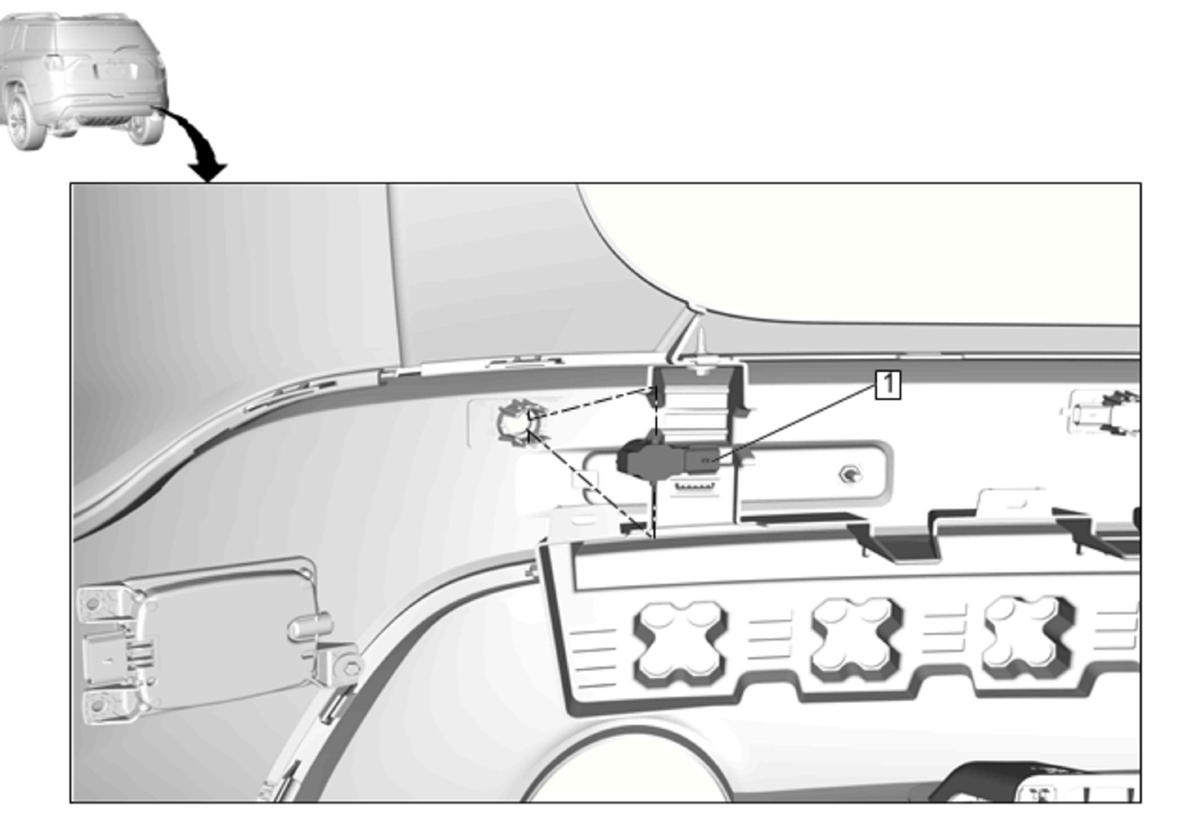

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the advance parking assist alarm sensor bracket.

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
