Manifold Absolute Pressure Sensor Replacement

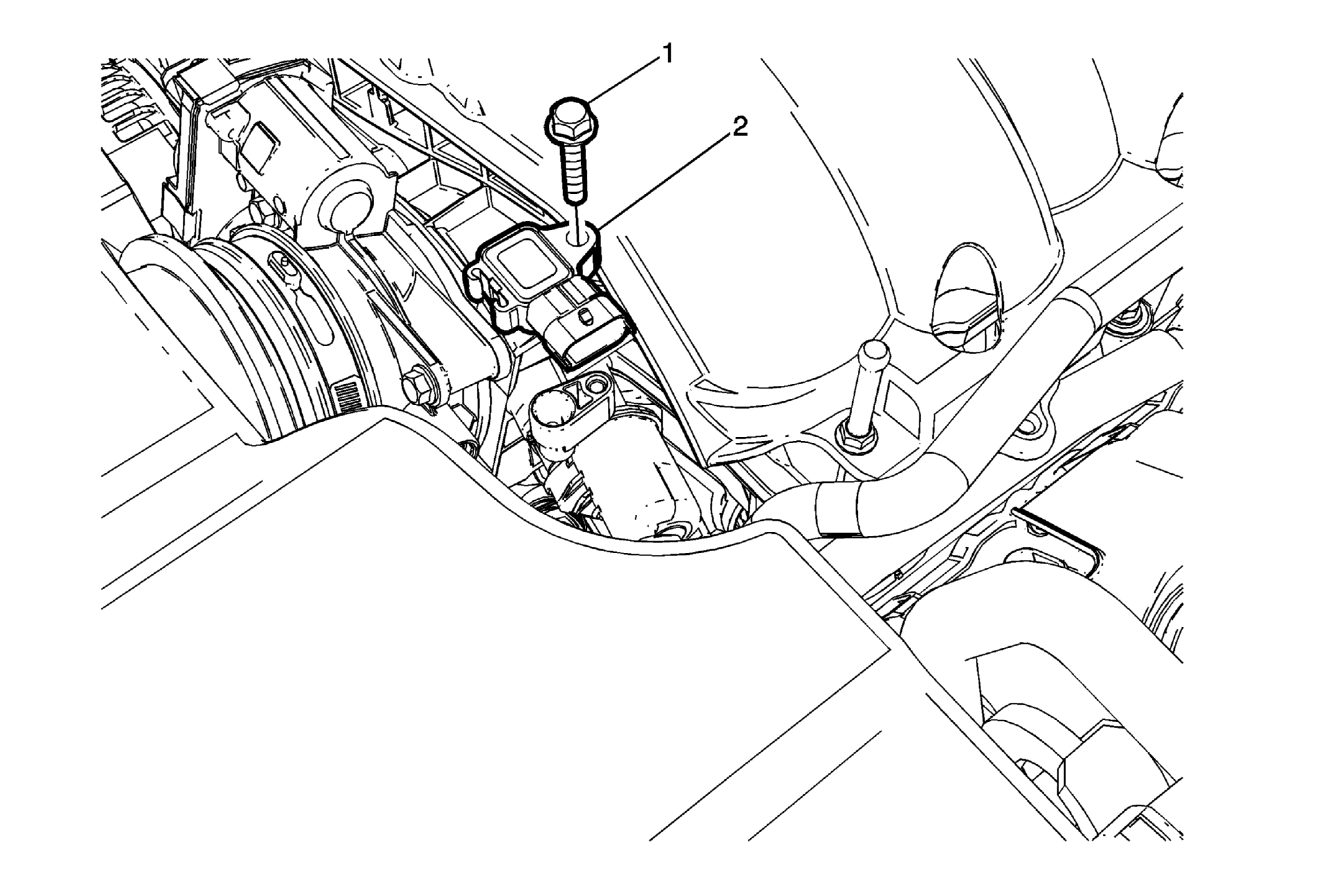

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure If equipped Intake Manifold Cover Replacement
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the manifold absolute pressure sensor electrical wiring harness connector.
