Remote Device Enable
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remote Device Enable

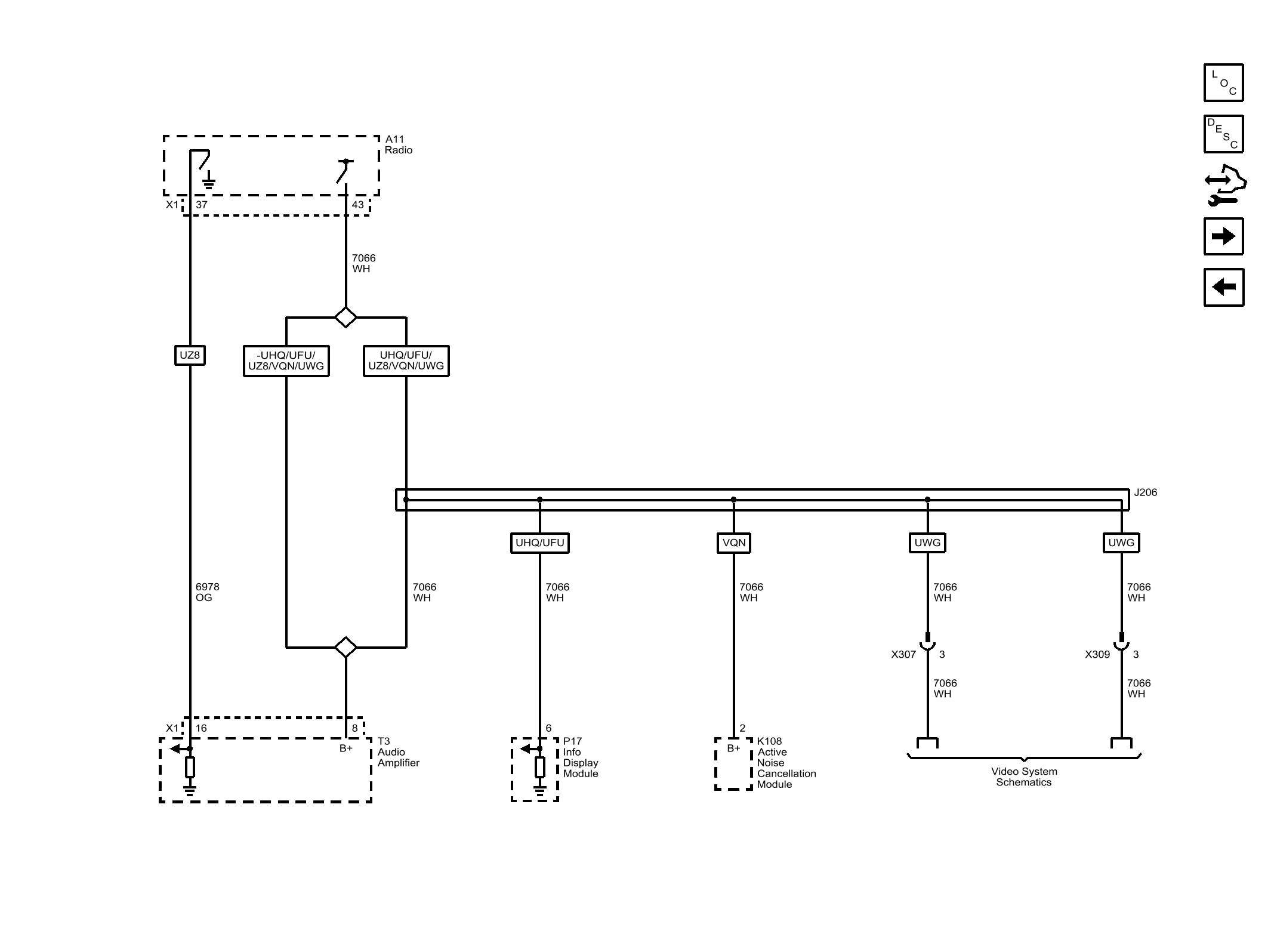

Fig 1: Remote Device Enable
Courtesy of GENERAL MOTORS COMPANY
