Camshaft Position Sensor Replacement - Exhaust

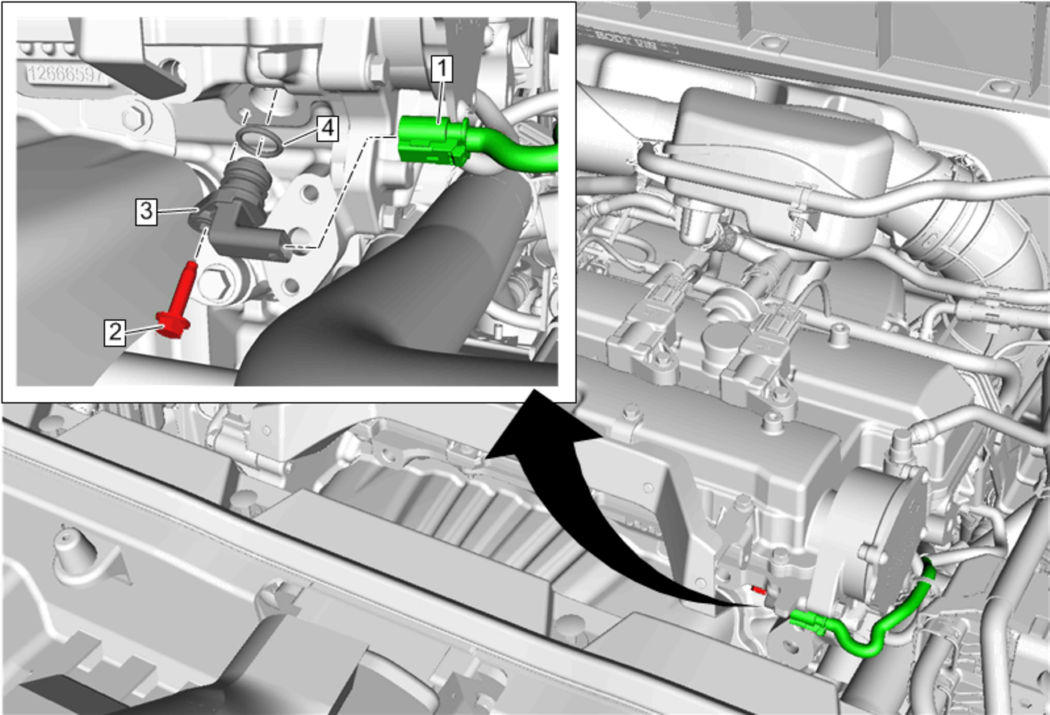

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement |
|
| 1 | Electrical Connector |
| 2 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Position Sensor |
| 4 | Camshaft Position Sensor Seal Ring Procedure Install a NEW camshaft position sensor seal ring. |
