Door Lock/Indicator Wiring Schematics: Controls

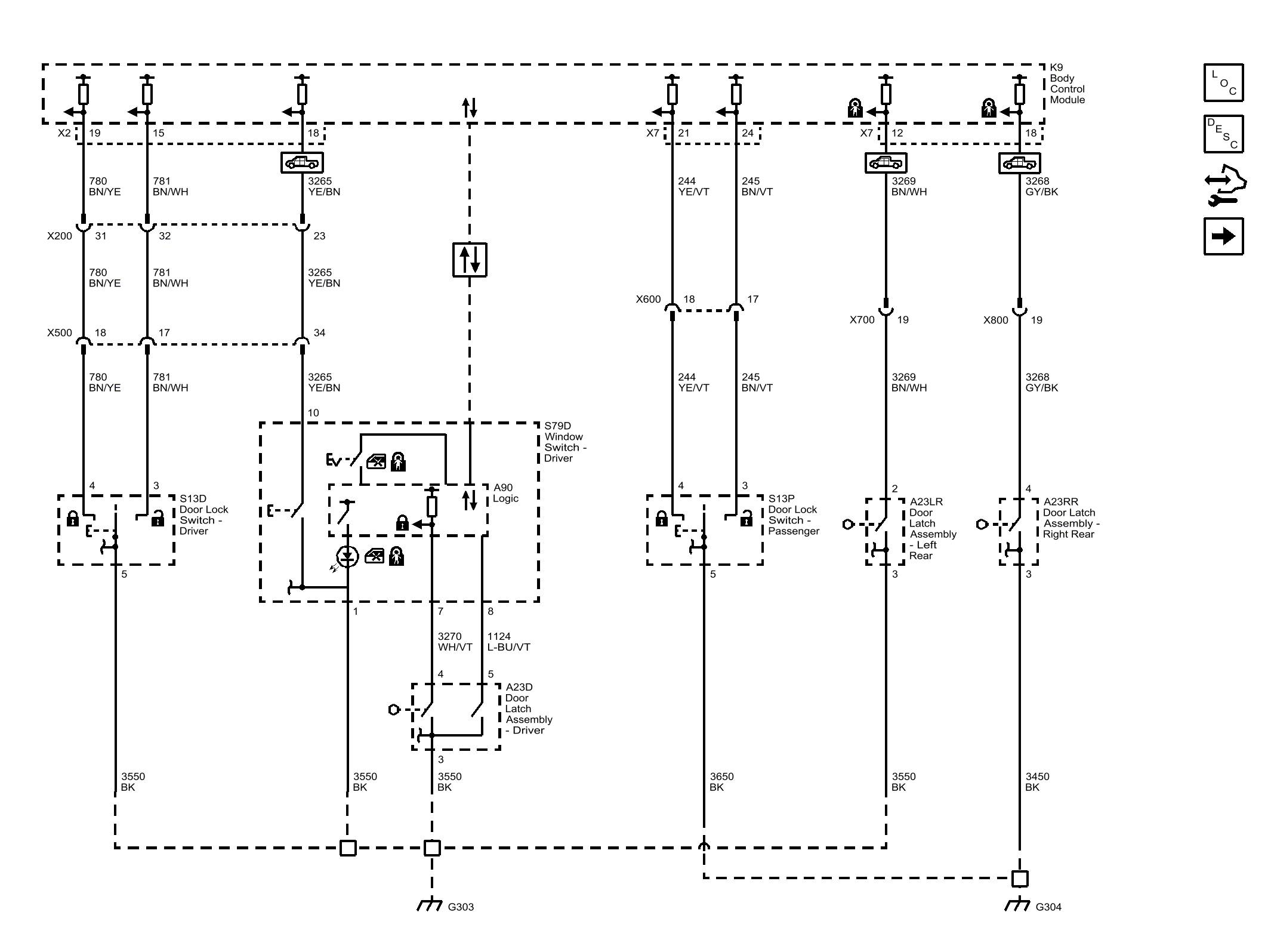

Fig 1: Controls

GM4117531

Courtesy of GENERAL MOTORS COMPANY
