Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Rear Camera (IO4/IO5/IO6)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

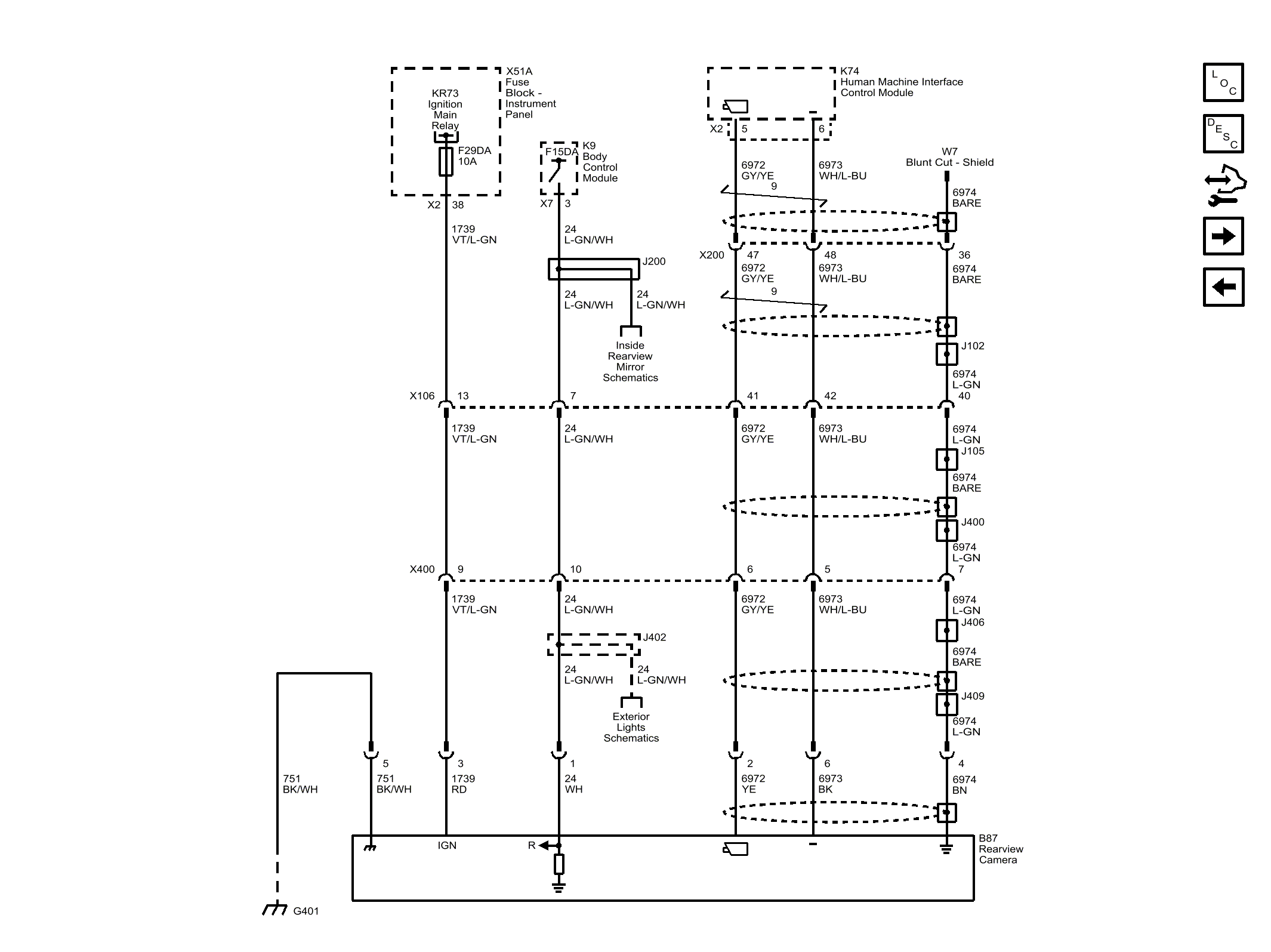

Rear Camera (IO4/IO5/IO6)
Fig 1: Rear Camera (IO4/IO5/IO6)
Courtesy of GENERAL MOTORS COMPANY
