Terrain SLE, 4D Utility
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection System Wiring Schematics
>>
Forward Collision and Lane Departure Wiring Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Forward Collision and Lane Departure Wiring Schematics

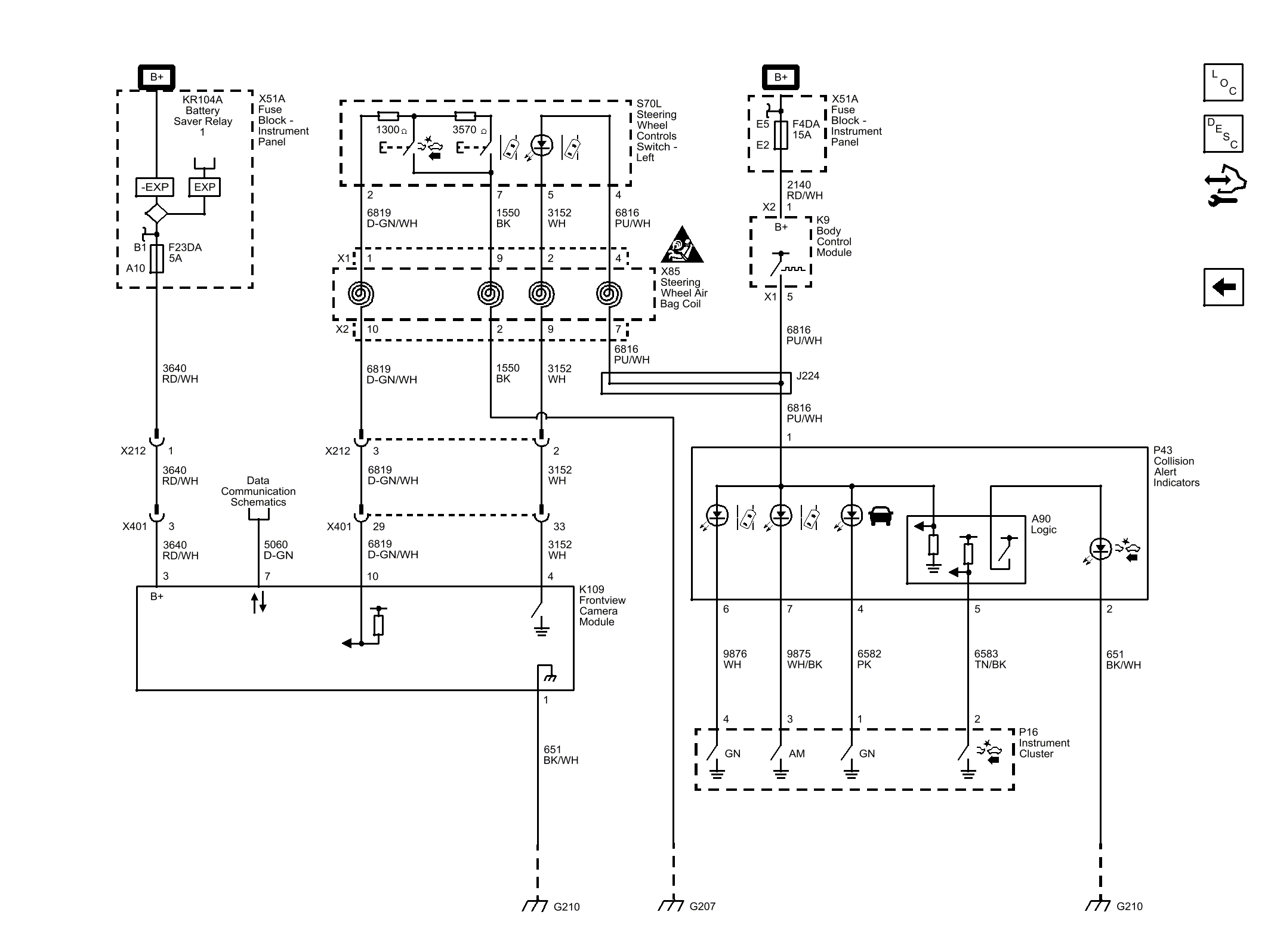

Fig 1: Forward Collision and Lane Departure Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
