Human Machine Interface Control Module Bypass Module Bracket Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2017 GMC Sierra 3500 HD, 2017 GMC Sierra 2500 HD, 2017 GMC Sierra 1500, 2017 Chevrolet Silverado 3500 HD, and 2017 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

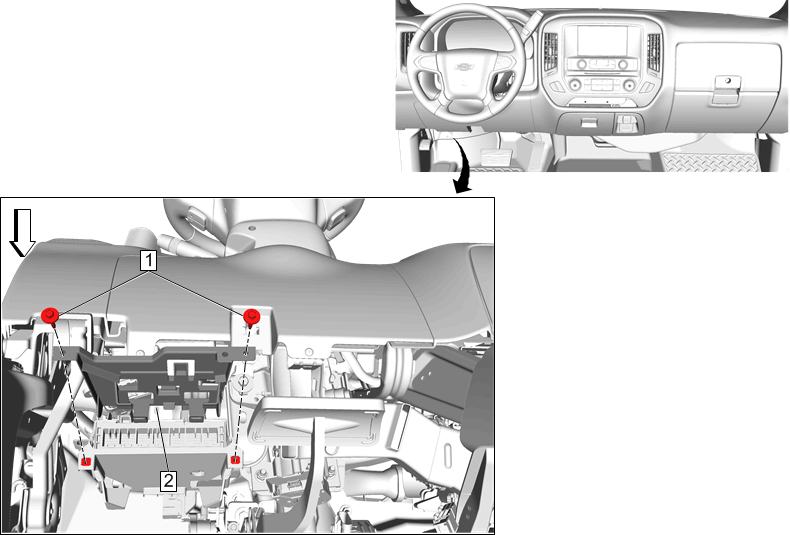

| Callout |
Component Name |
| 1 |
Human Machine Interface Control Module Bypass Module Bracket Bolt
Tighten
2.5 N.m (22 lb in) |
| 2 |
Human Machine Interface Control Module Bypass Module Bracket
Procedure
Transfer components as necessary. |
