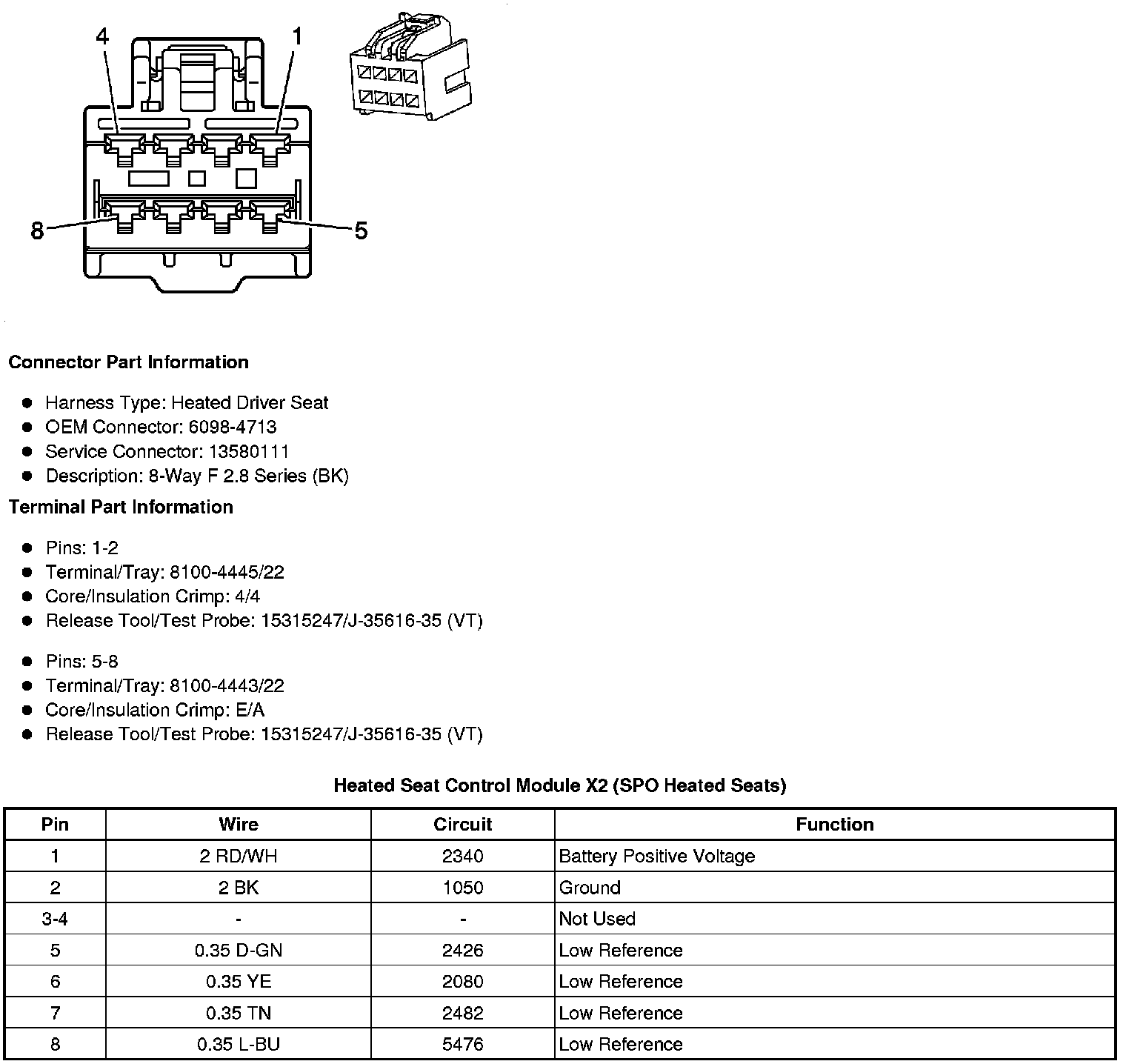

Heated Seat Control Module X2 (SPO Heated Seats)
Component Connector End Views
Heated Seat Control Module X2 (SPO Heated Seats)
