Camshaft Position (CMP) Sensor

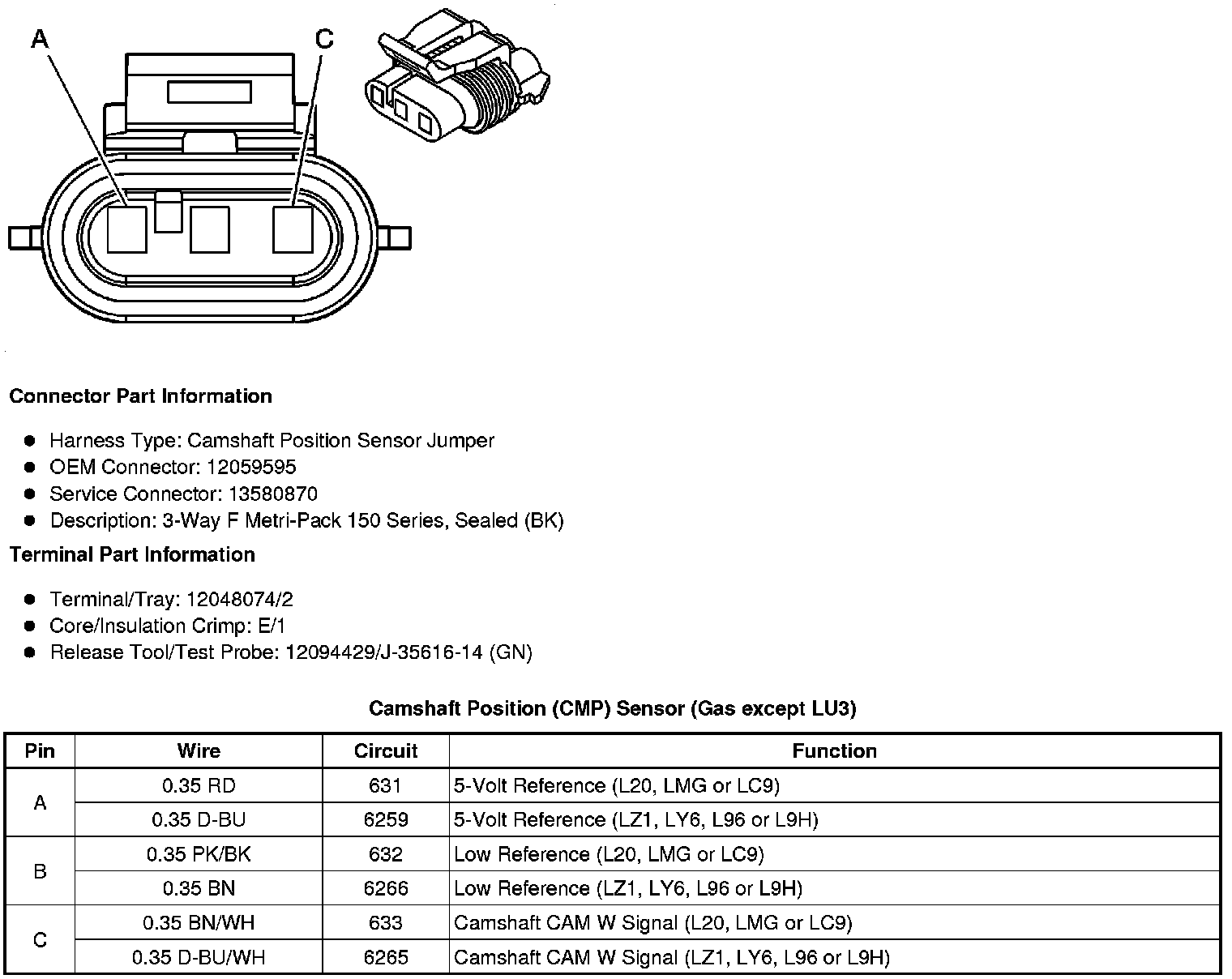

Component Connector End Views
Camshaft Position (CMP) Sensor (Gas except LU3)
