LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
GMC
>>
2012
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Master Electrical Schematic Icons
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

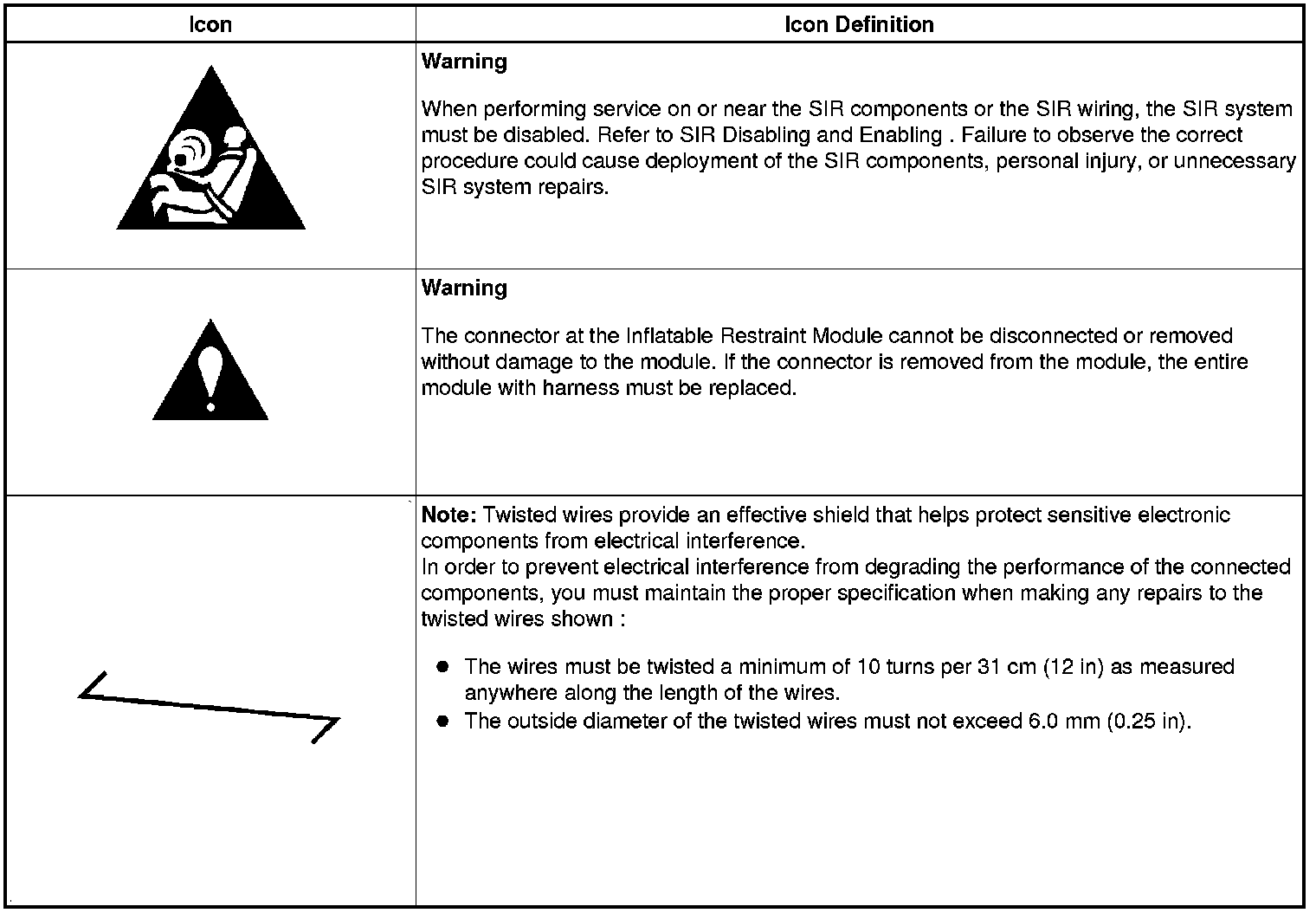

Master Electrical Schematic Icons
Master Electrical Schematic Icons
