Video System Wiring Schematics: U42

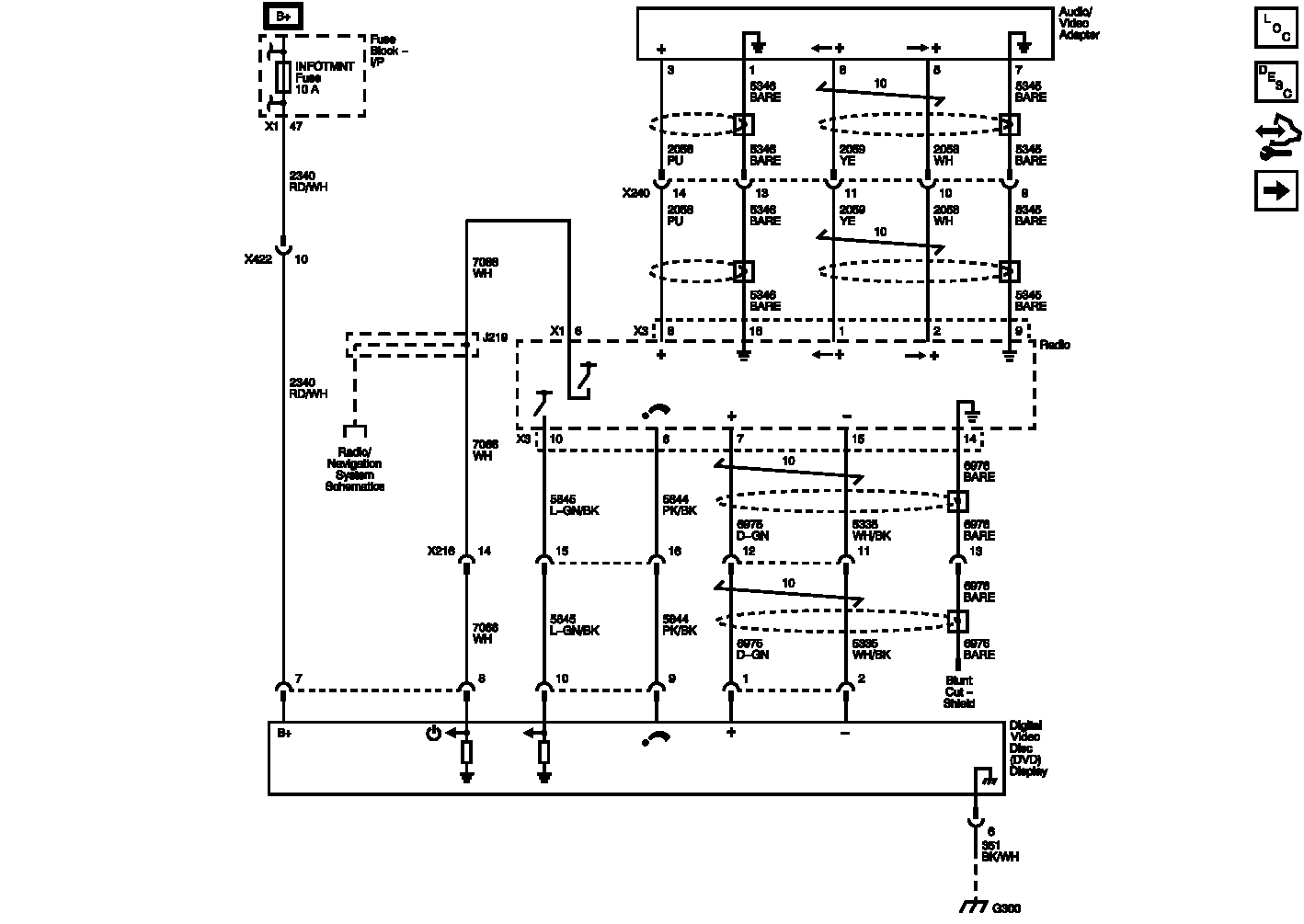

Fig 1: Video System U42 Wiring Diagram
GM2566971Courtesy of GENERAL MOTORS COMPANY
