Control Module HVAC: Diagrams




Component Connector End Views

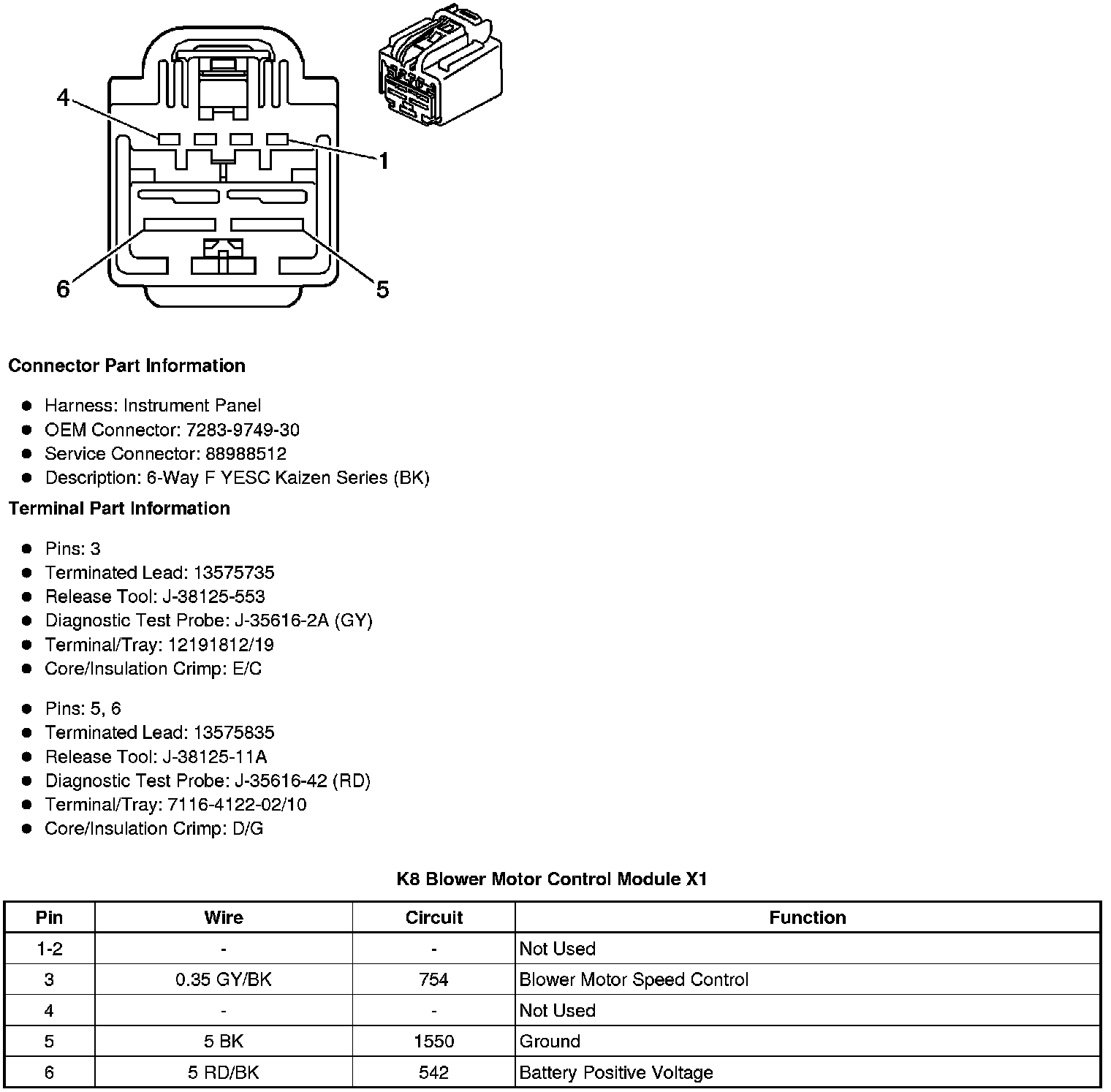

K8 Blower Motor Control Module X1





K8 Blower Motor Control Module X2

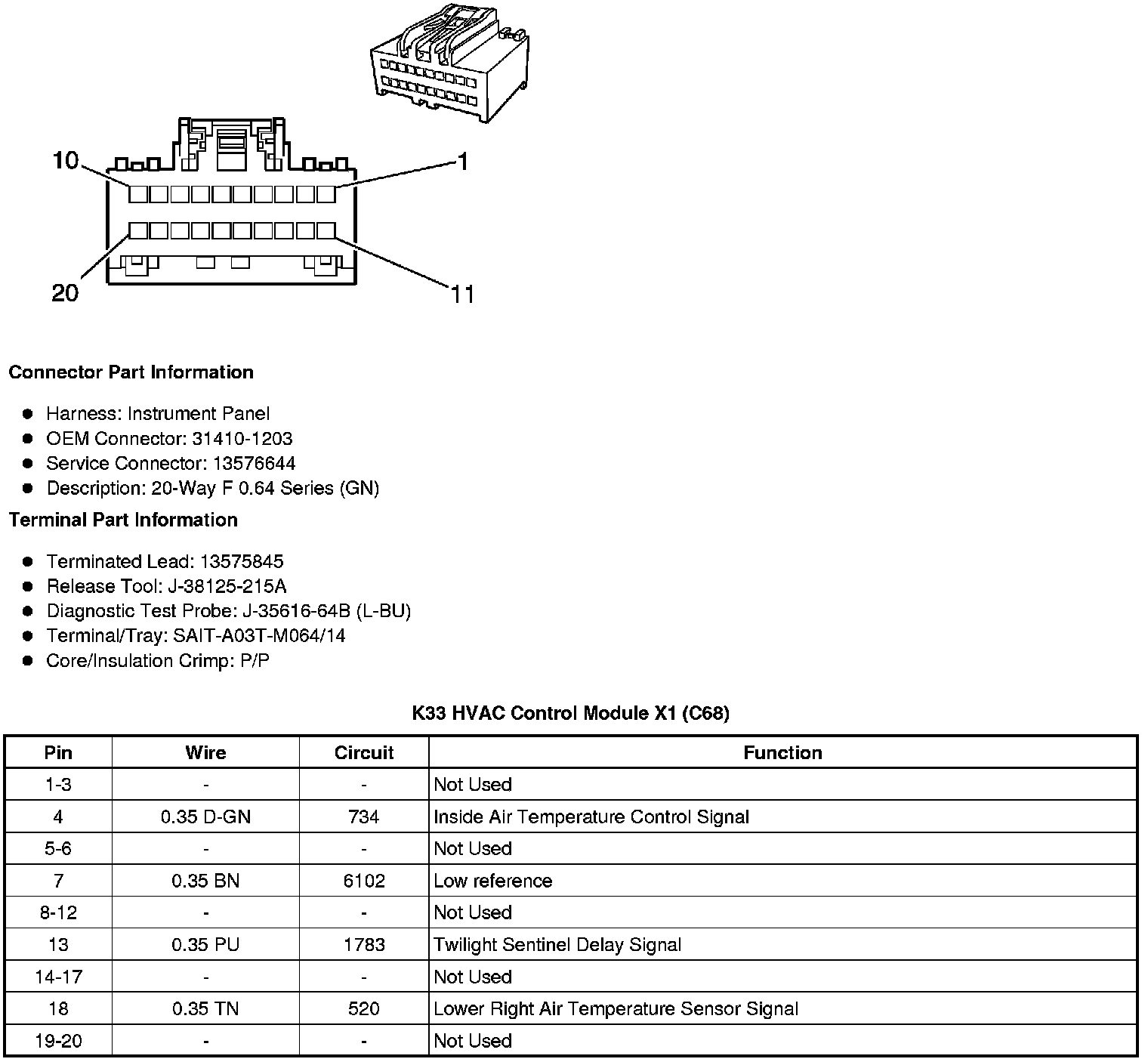

K33 HVAC Control Module X1 (C68)





K33 HVAC Control Module X2





K33 HVAC Control Module X3
