Air Bag Control Module




Component Connector End Views

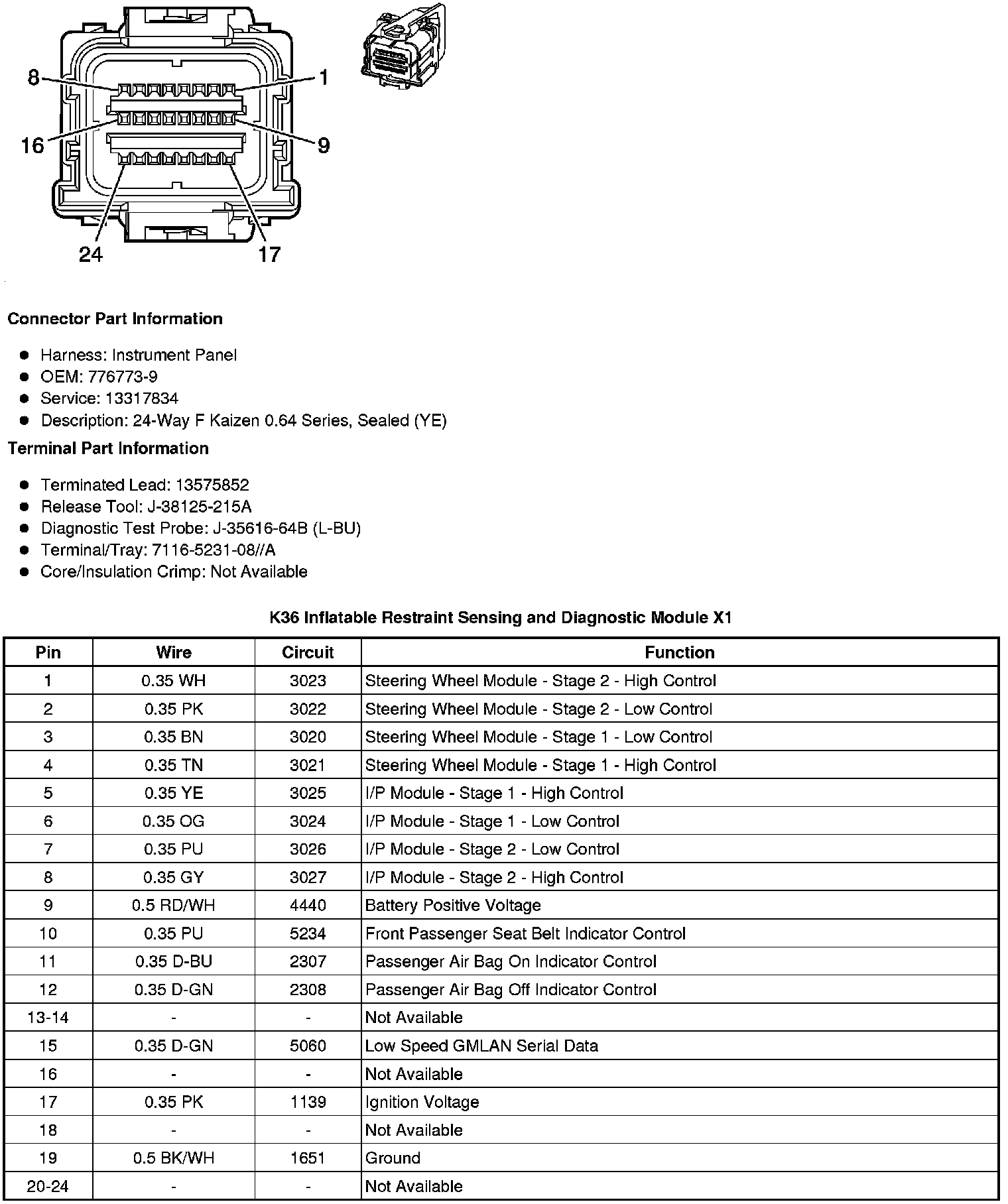

K36 Inflatable Restraint Sensing and Diagnostic Module X1

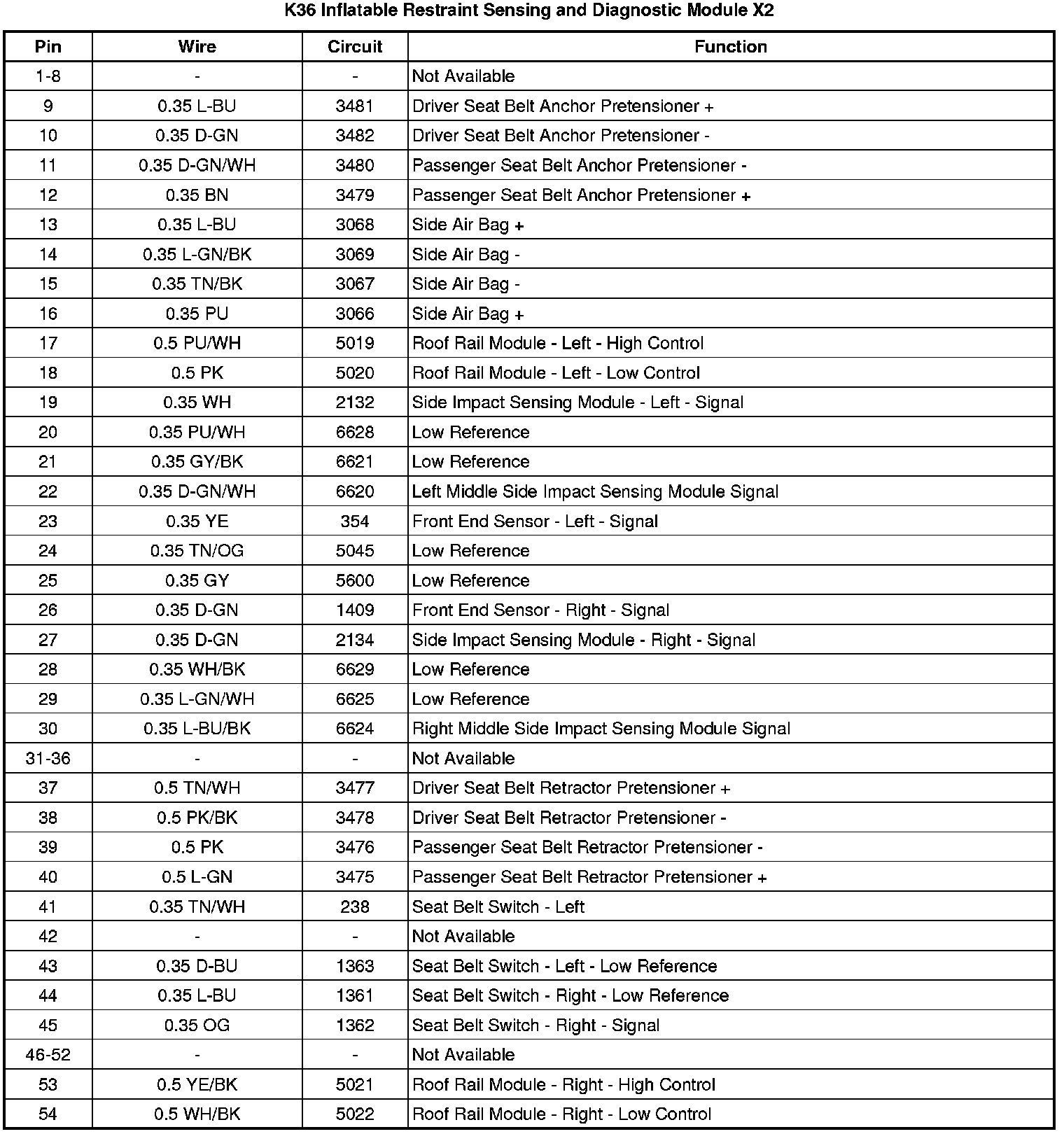

K36 Inflatable Restraint Sensing and Diagnostic Module X2
