Fuse Block - Underhood




Electrical Center Identification Views

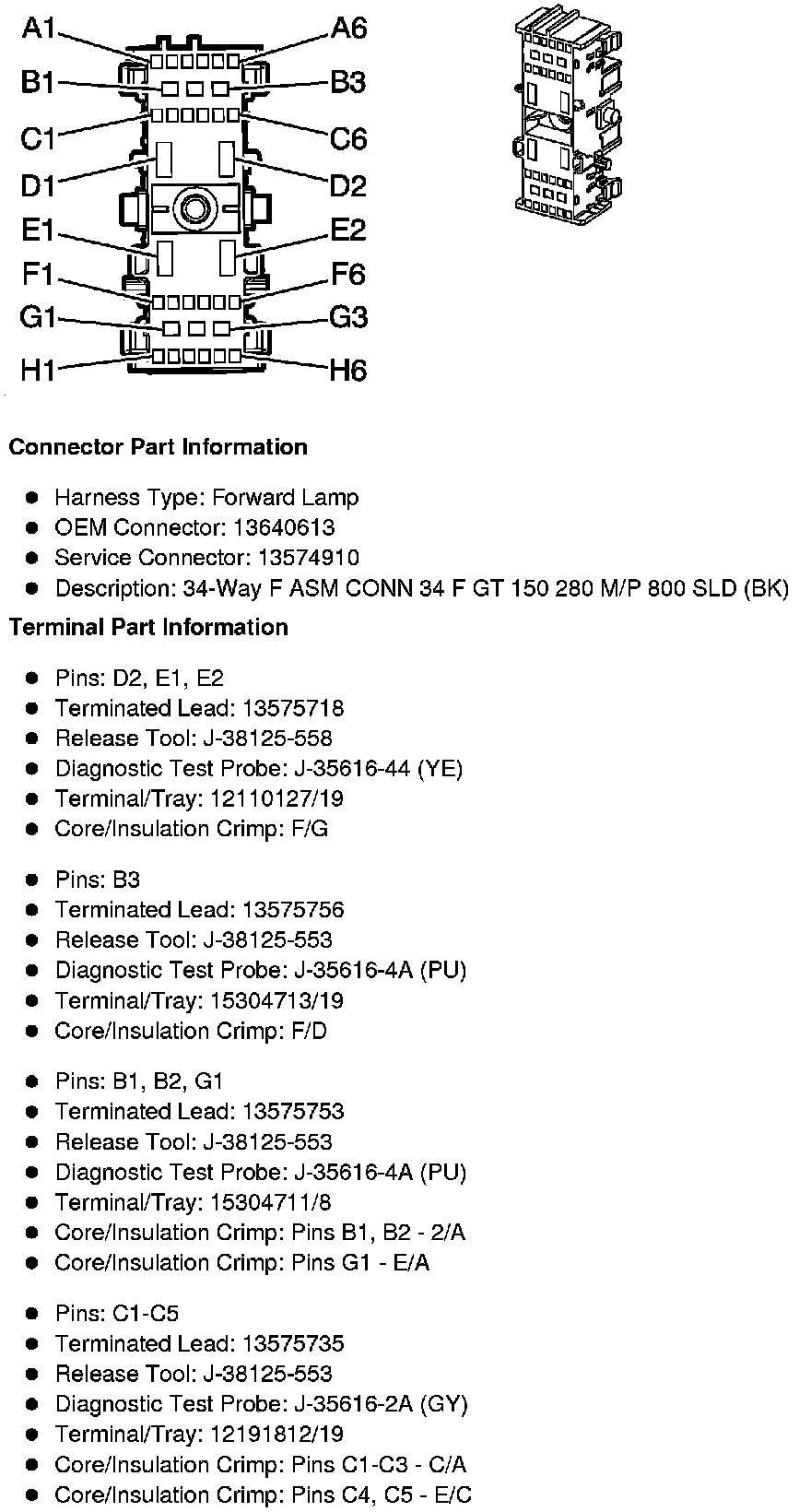

X50A Fuse Block - Underhood, Label

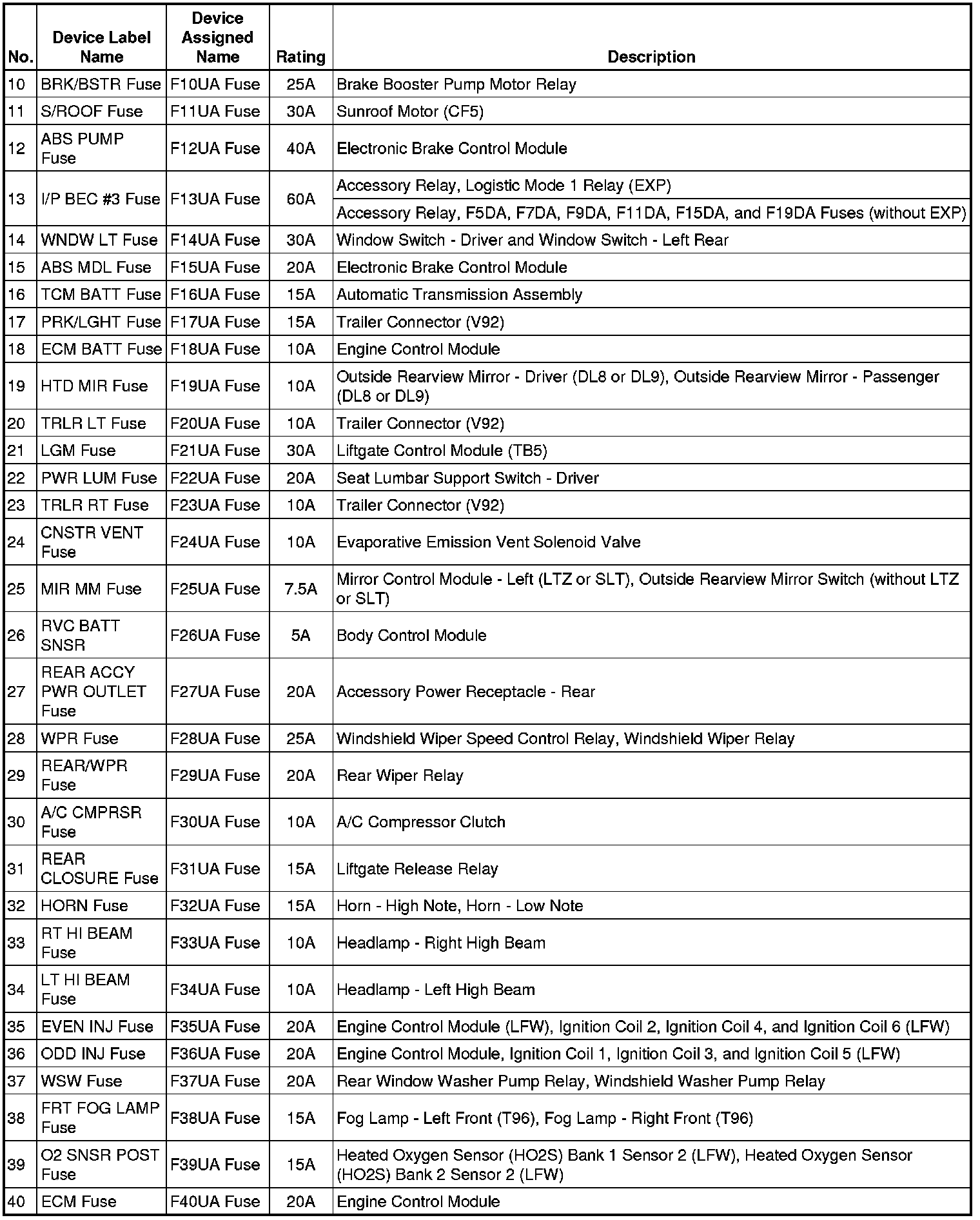

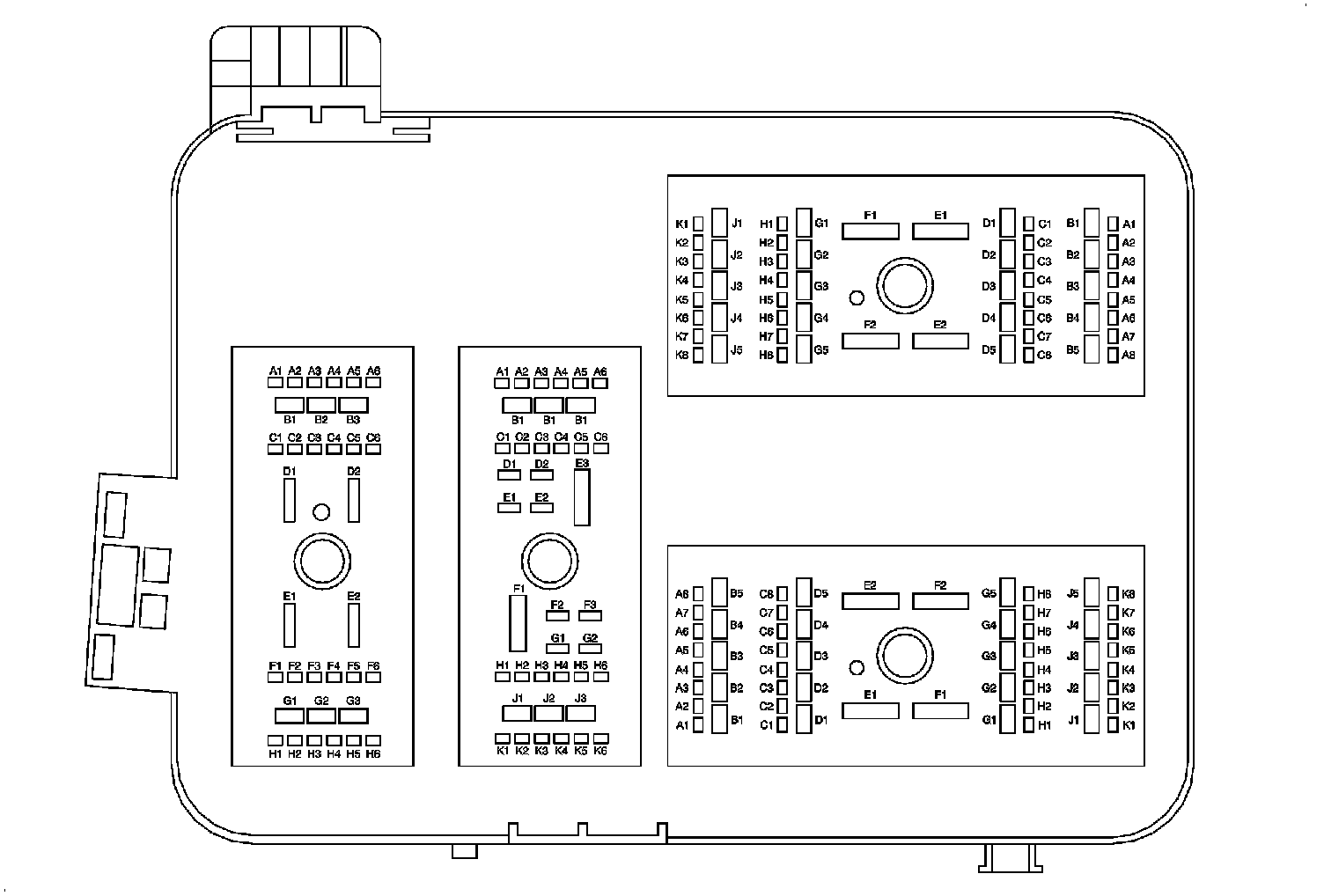

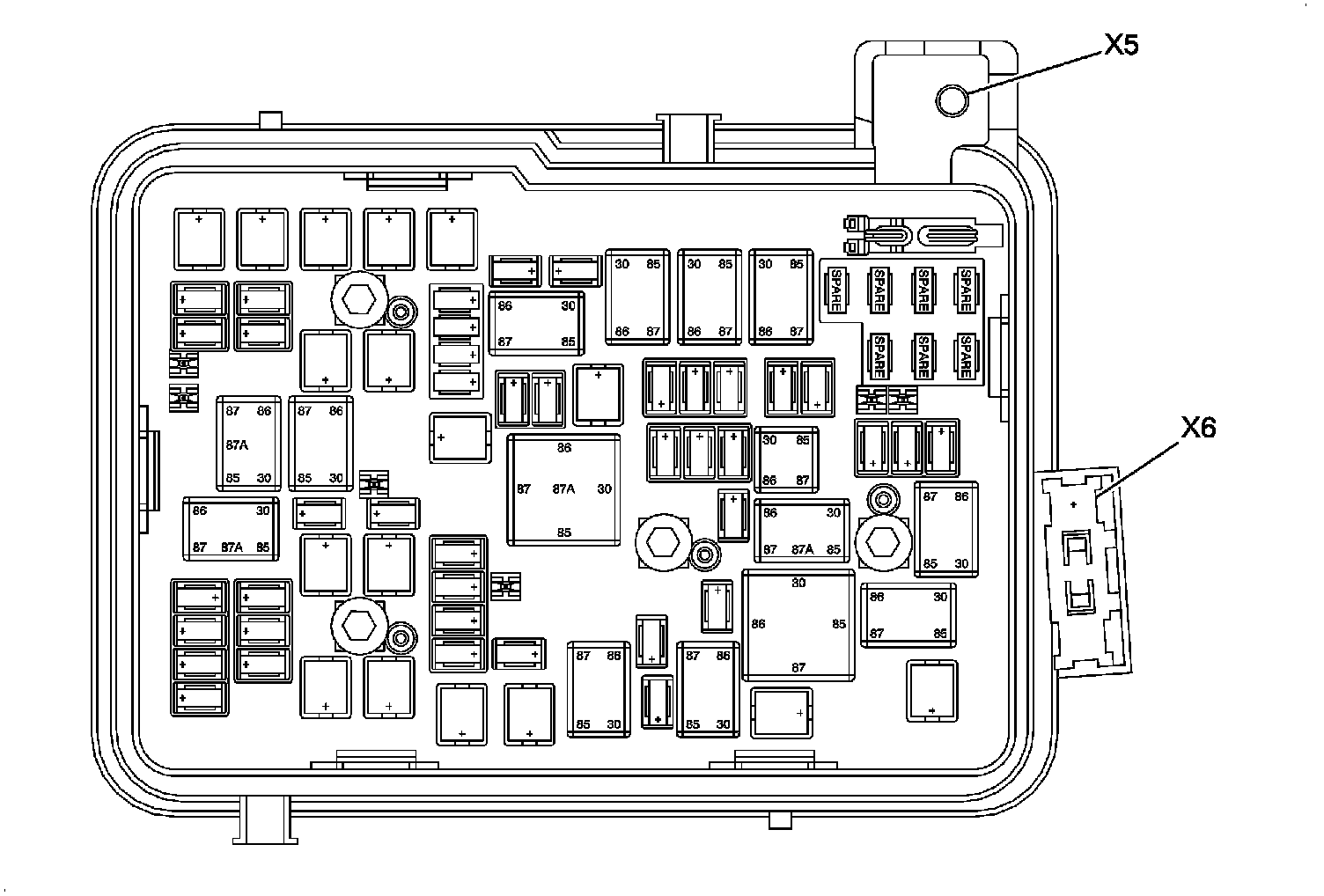

X50A Fuse Block - Underhood, Top View

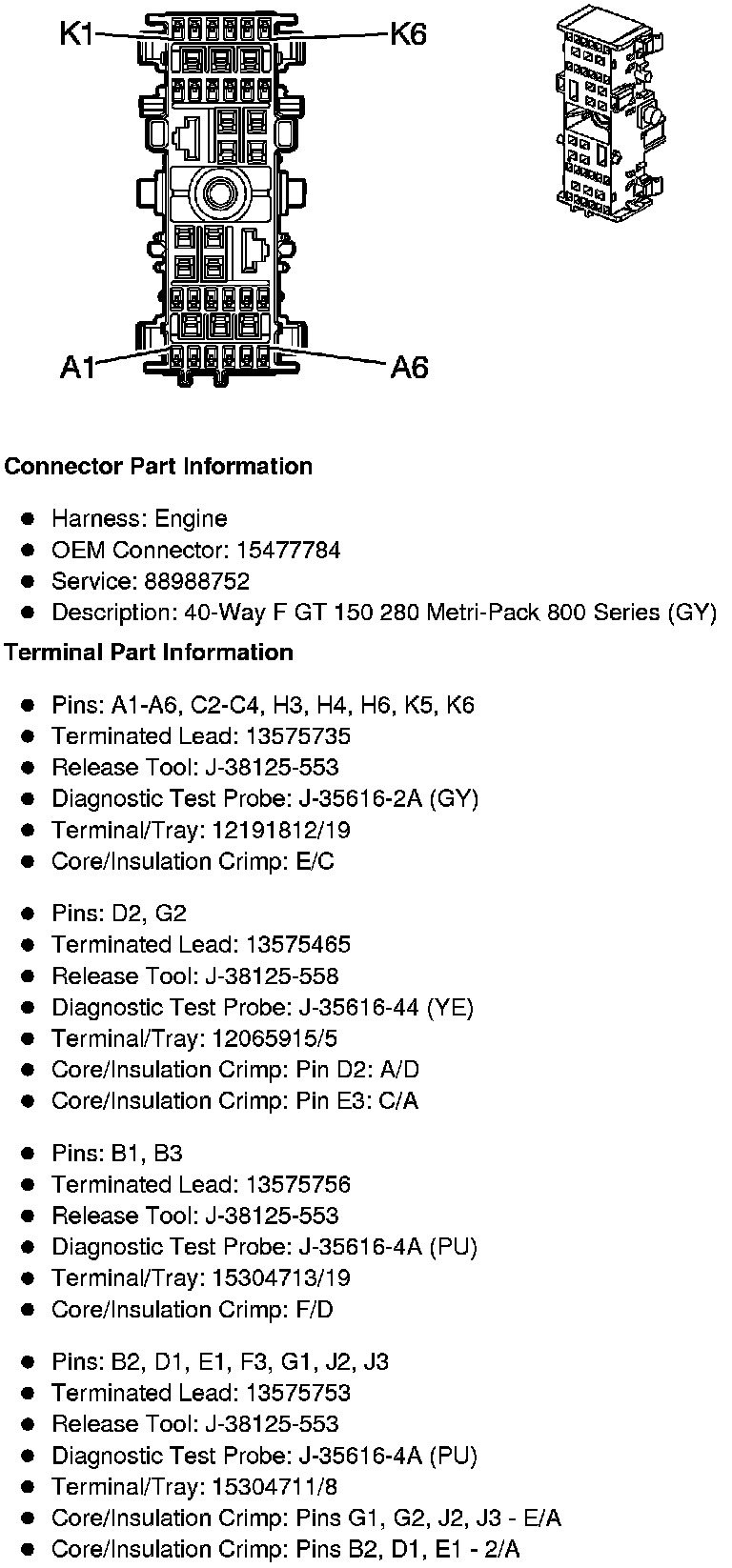

X50A Fuse Block - Underhood, Bottom View

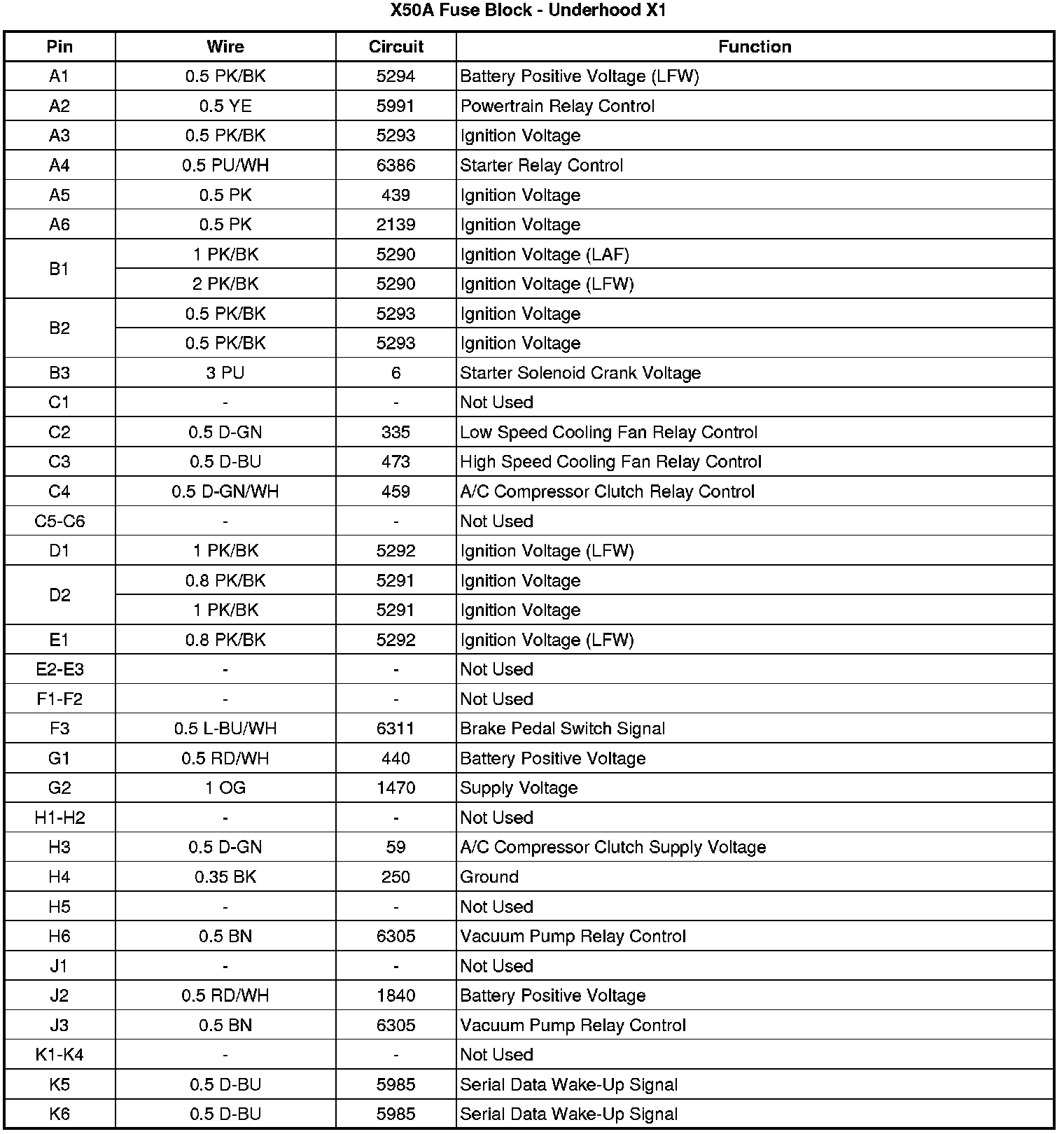

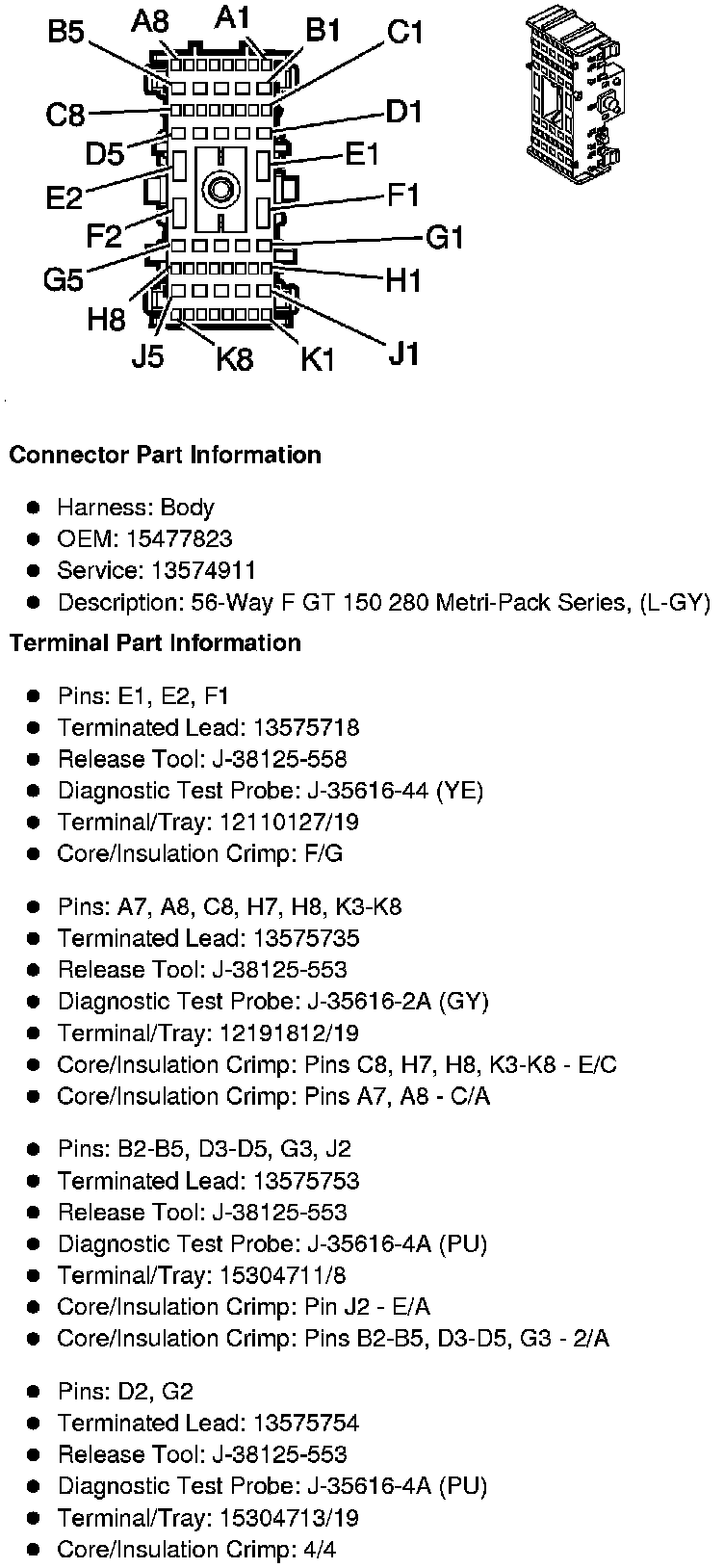

X50A Fuse Block - Underhood X1

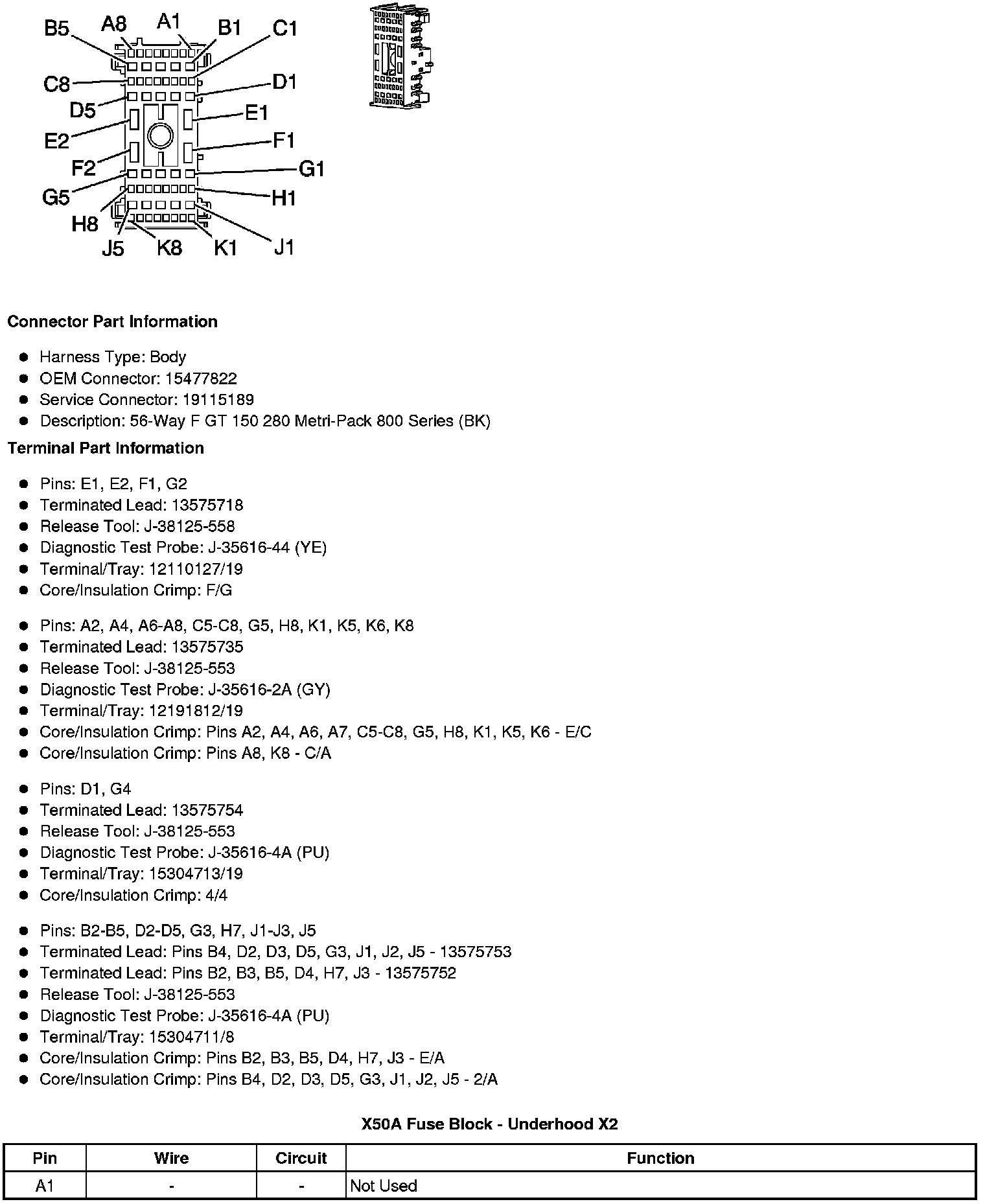

X50A Fuse Block - Underhood X2

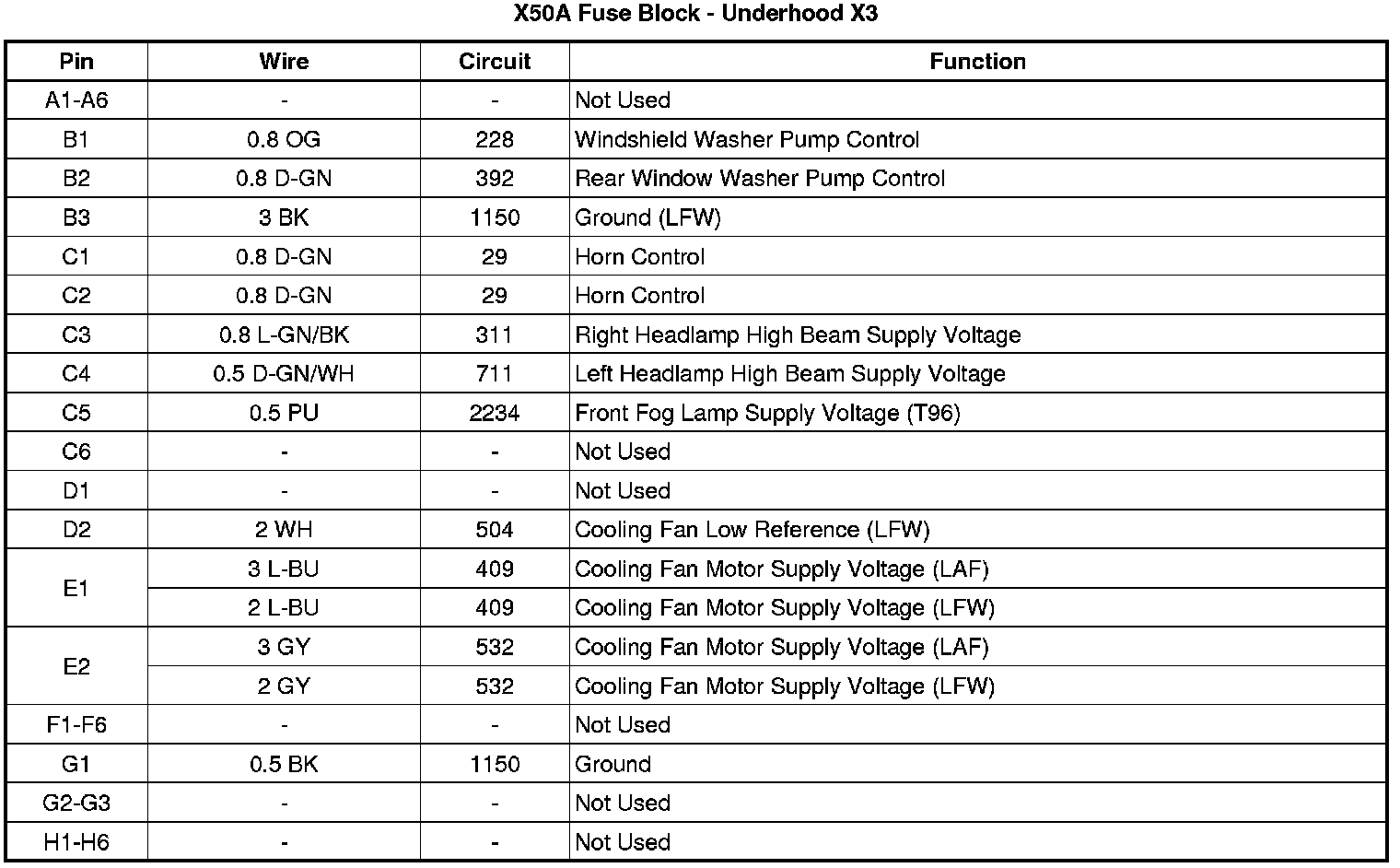

X50A Fuse Block - Underhood X3

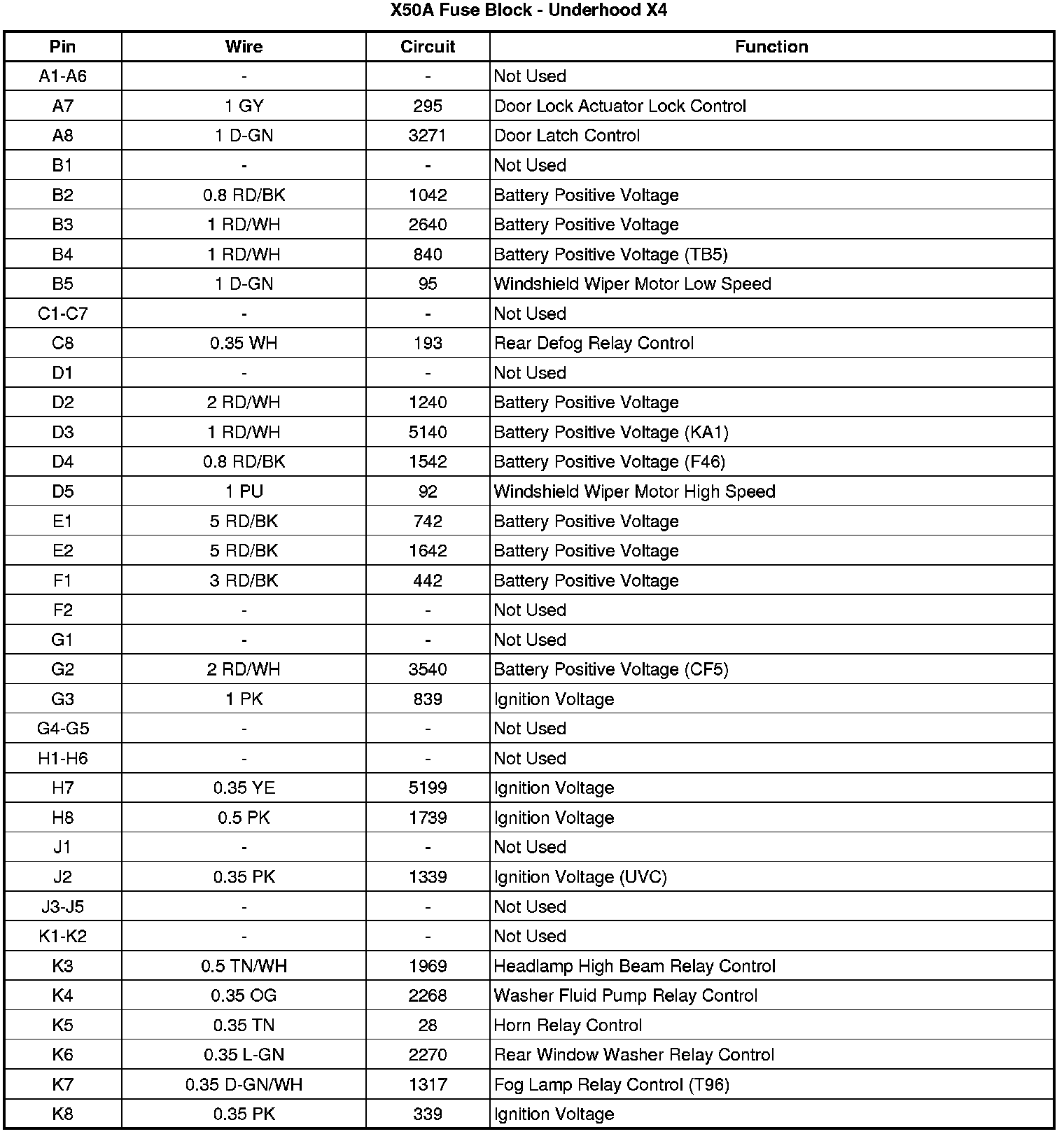

X50A Fuse Block - Underhood X4

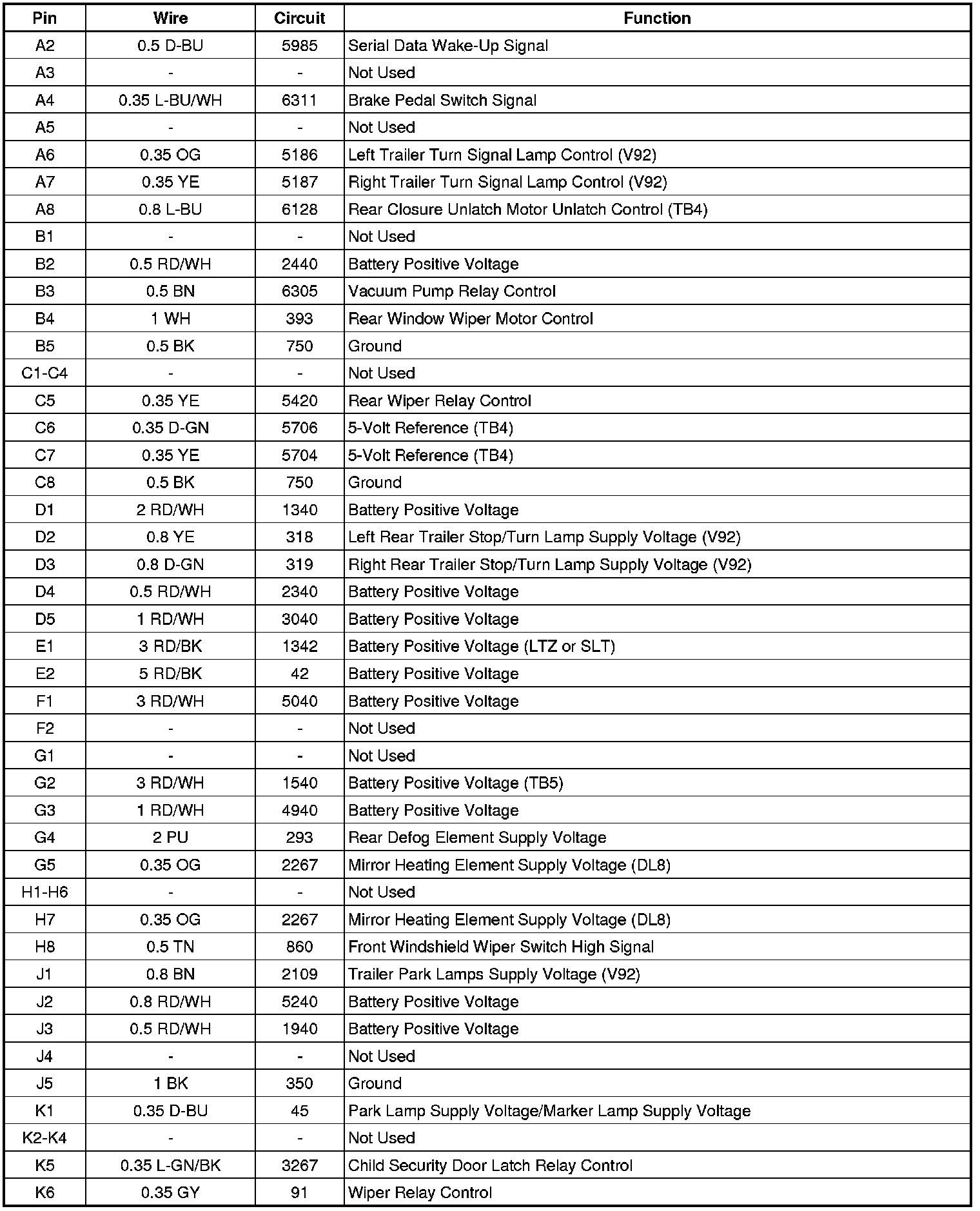

X50A Fuse Block - Underhood X5









X50A Fuse Block - Underhood X6 (LAF)
