Power Distribution Schematic 8
Power Distribution Schematics

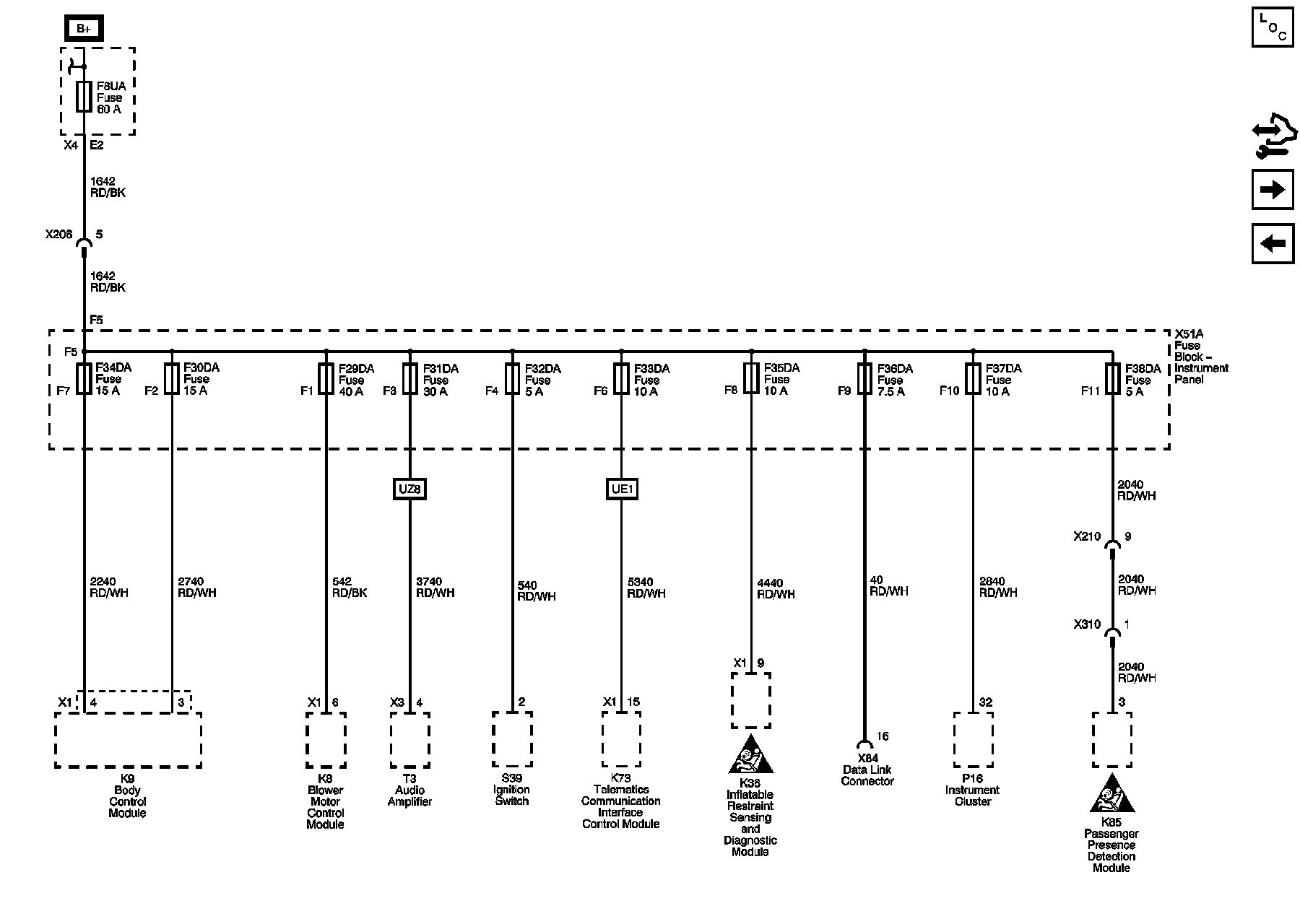

F29DA, F30DA, F31DA, F32DA, F33DA, F34DA, F35DA, F36DA, F37DA, F38DA, and F8UA Fuses
