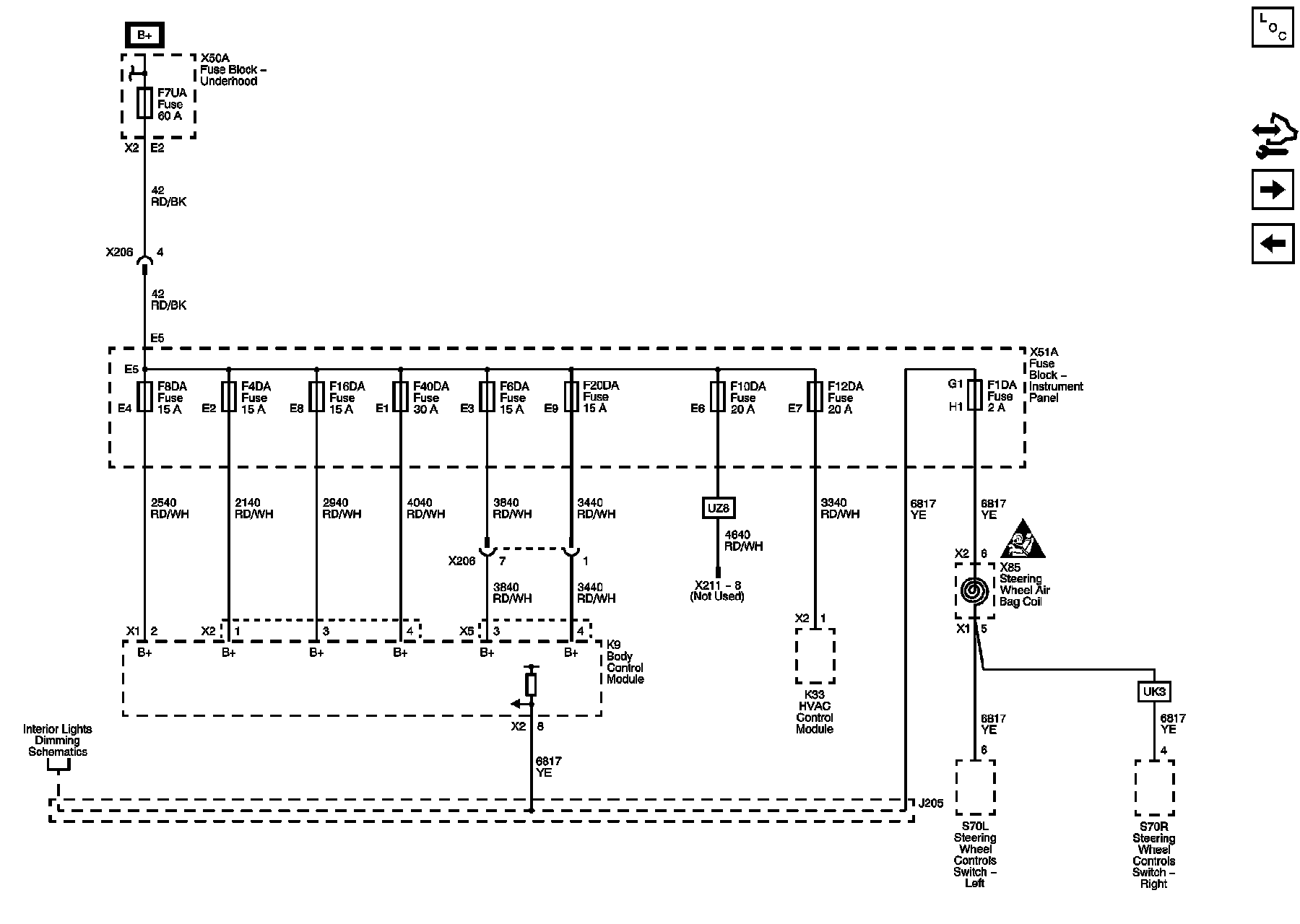

Power Distribution Schematic 7




Power Distribution Schematics

F1DA, F4DA, F6DA, F8DA, F10DA, F12DA, F16DA, F20DA, F40DA, and F7UA Fuses
