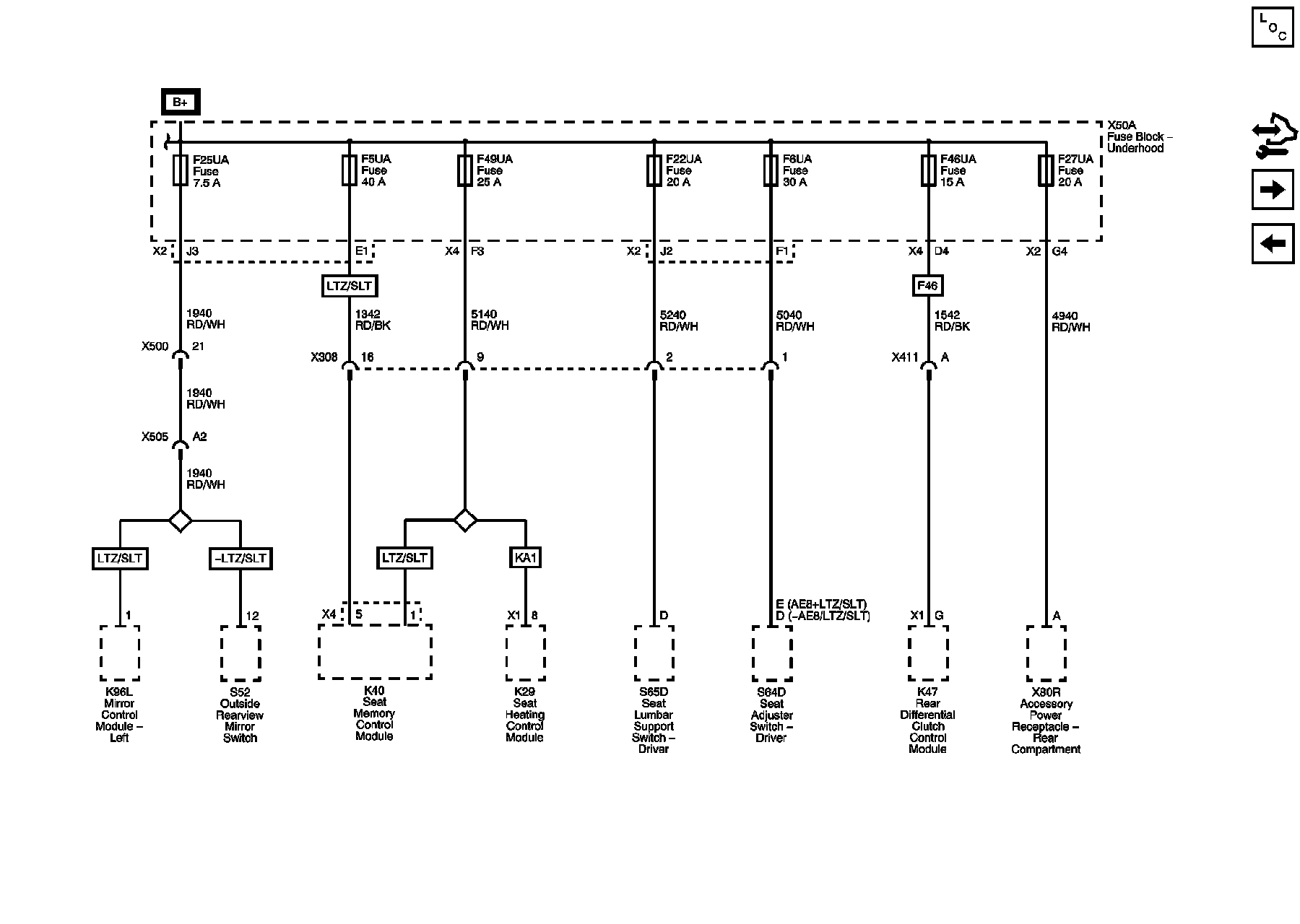

Power Distribution Schematic 5




Power Distribution Schematics

F5UA, F6UA, F22UA, F25UA, F27UA, F46UA, and F49UA Fuses
