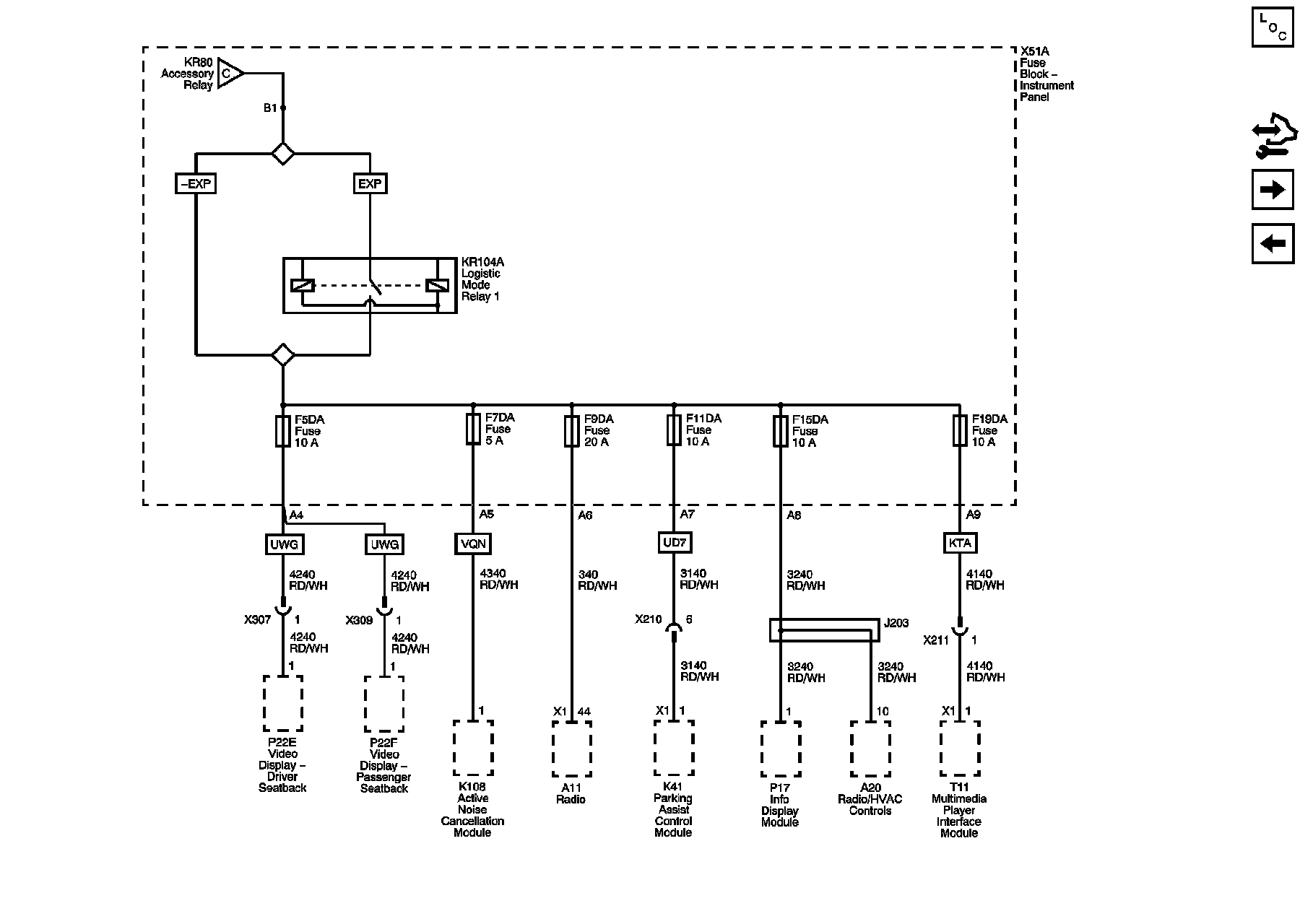

Power Distribution Schematic 10




Power Distribution Schematics

8F5DA, F7DA, F9DA, F11DA, F15DA, and F19DA Fuses
