Oxygen Sensor: Locations




Harness Routing Views

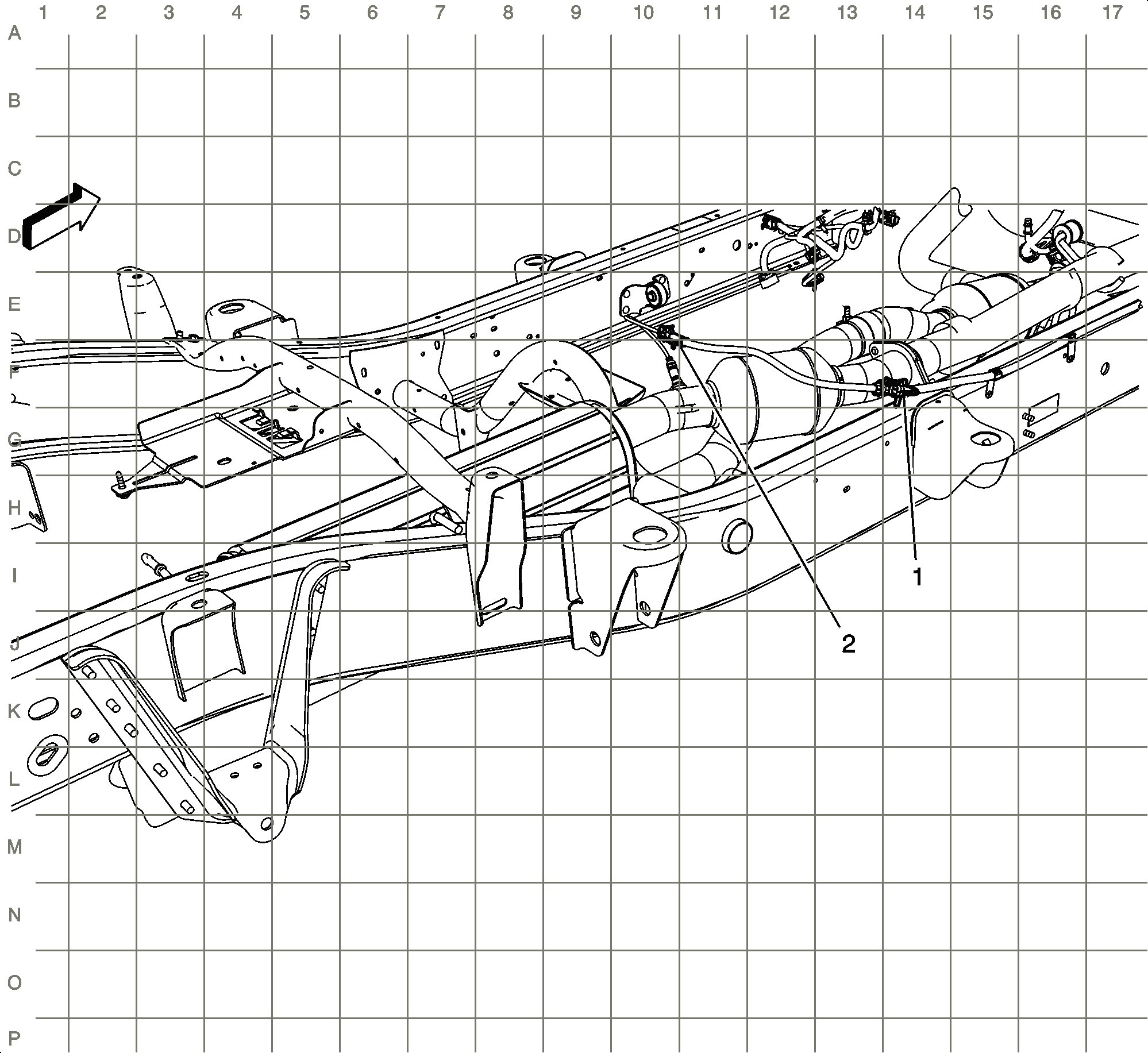

Heated Oxygen Sensor (HO2S) Jumper Harness Routing (LY6)




1 - X125
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
