Knock Sensor: Diagrams




Component Connector End Views

Knock Sensor (KS) 1 (Gas)

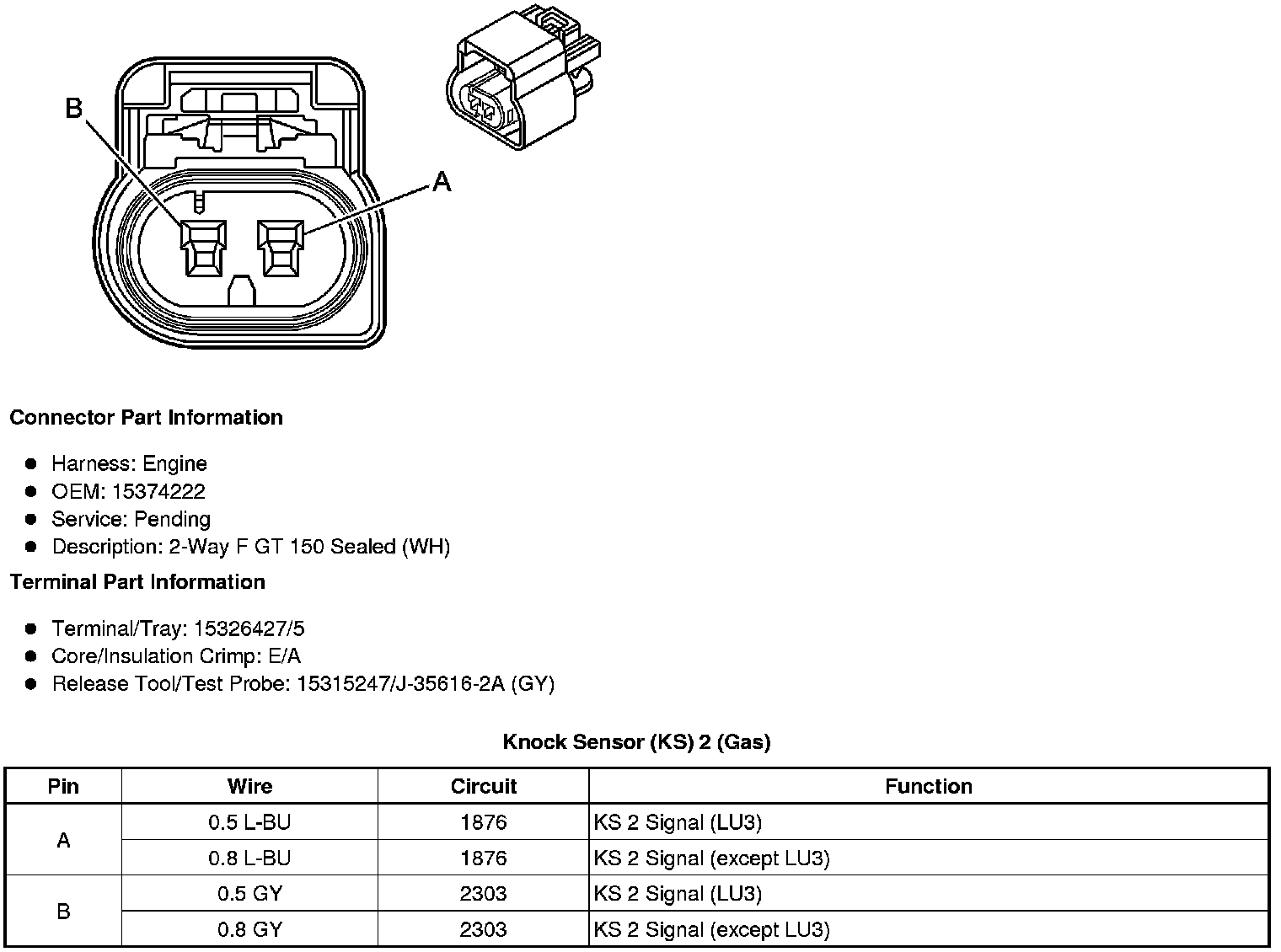

Knock Sensor (KS) 2 (Gas)
