Accelerator Pedal Position Sensor: Locations

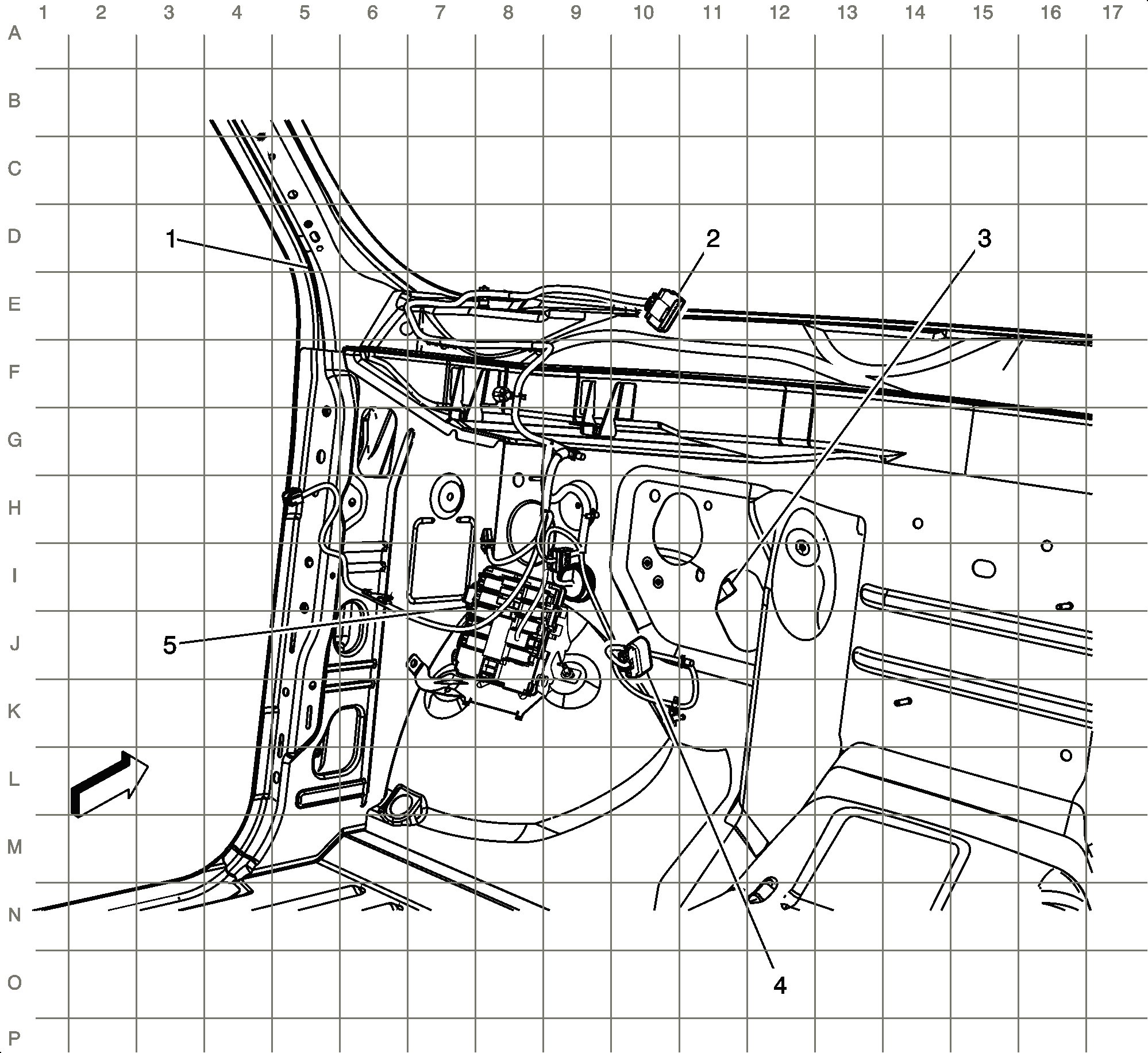

Harness Routing Views

Brake Clutch Harness Routing

1 - Driver Door Frame
2 - X205
3 - X102 (JL1)
4 - Accelerator Pedal Position (APP) Sensor Connector
5 - Junction Block - Left I/P (except MEX)
