Control Module HVAC: Diagrams




Component Connector End Views

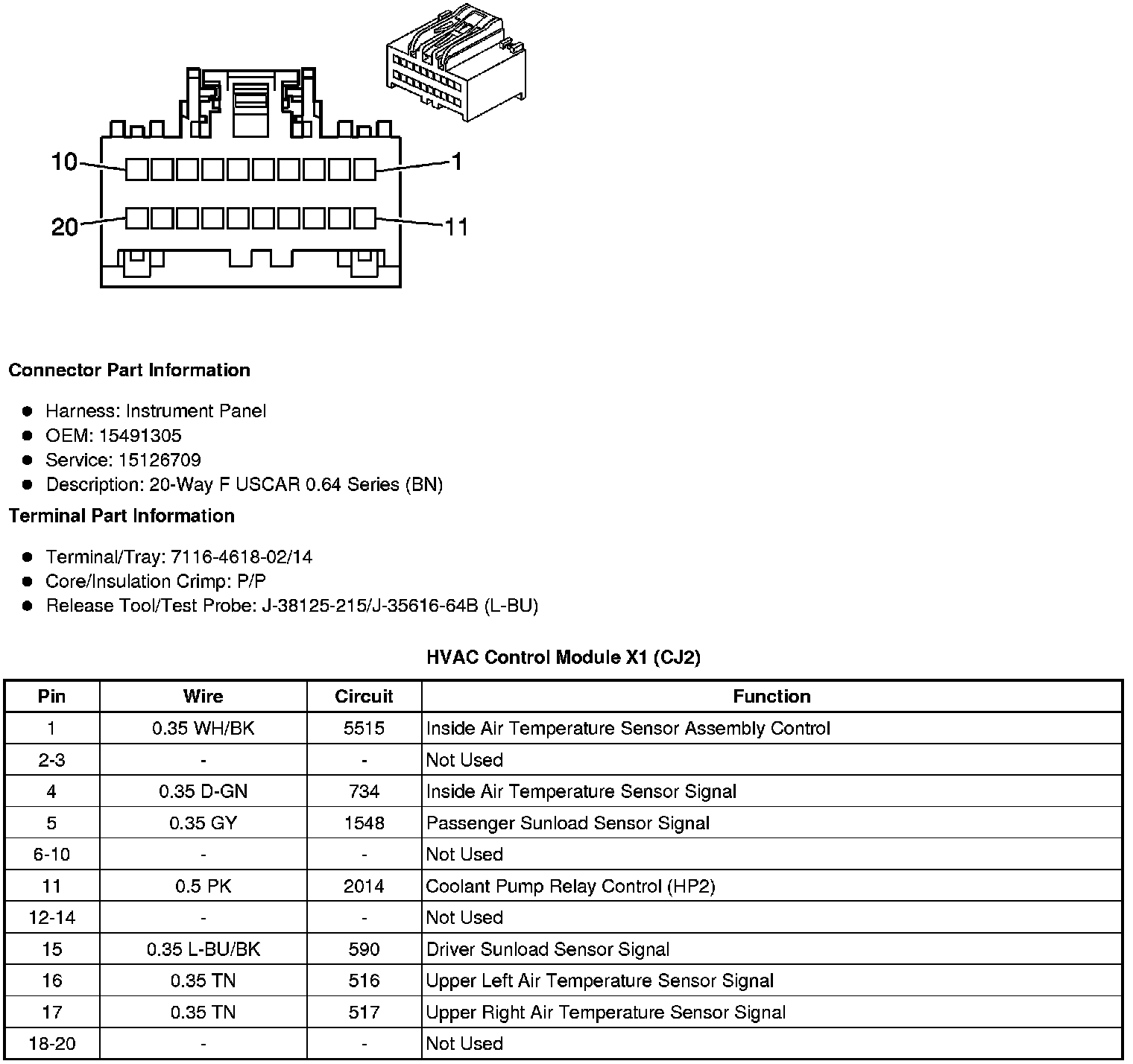

HVAC Control Module X1 (CJ2)

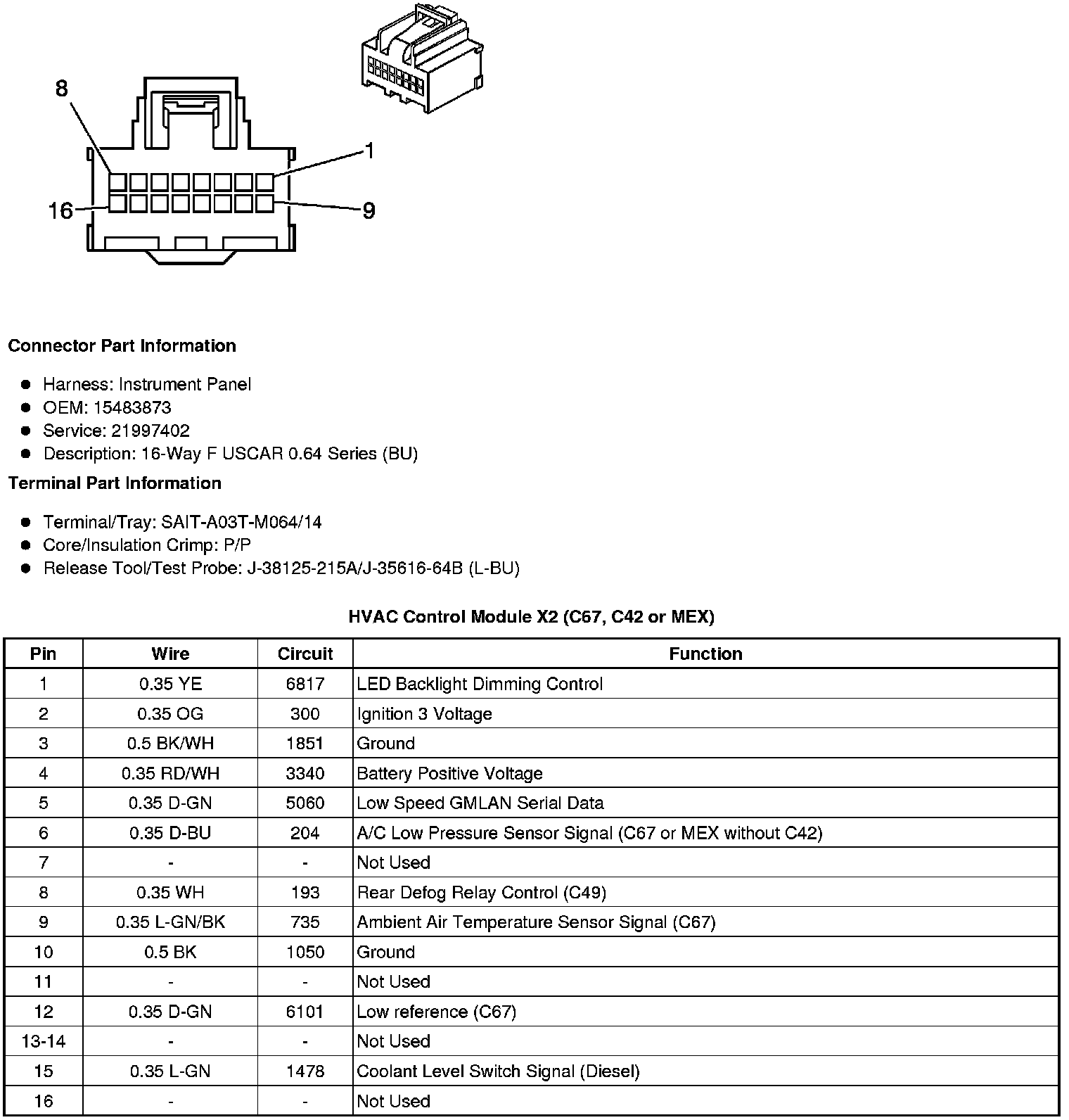

HVAC Control Module X2 (C67, C42 or MEX)

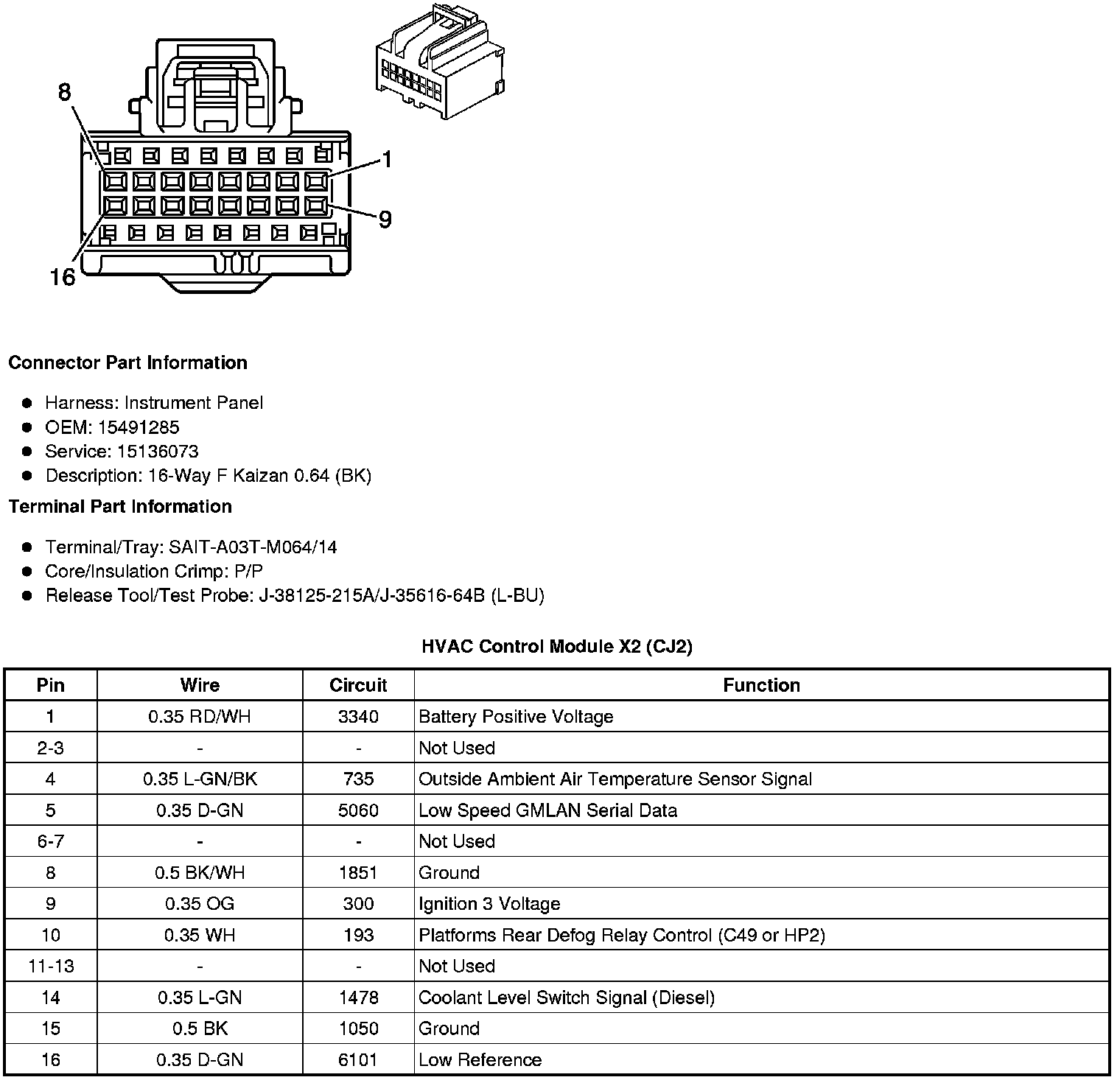

HVAC Control Module X2 (CJ2)

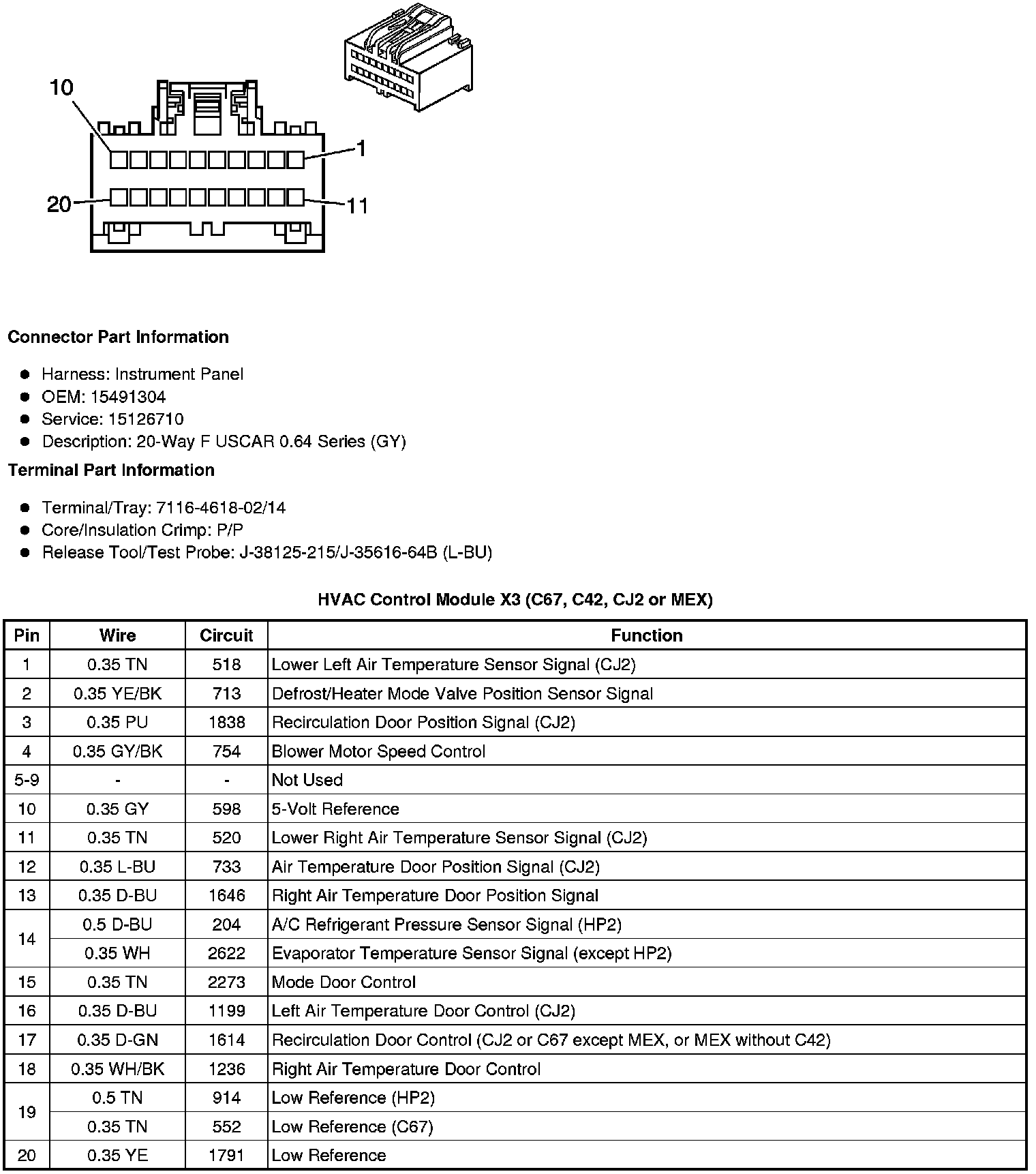

HVAC Control Module X3 (C67, C42, CJ2 or MEX)





Blower Motor Control Module X1

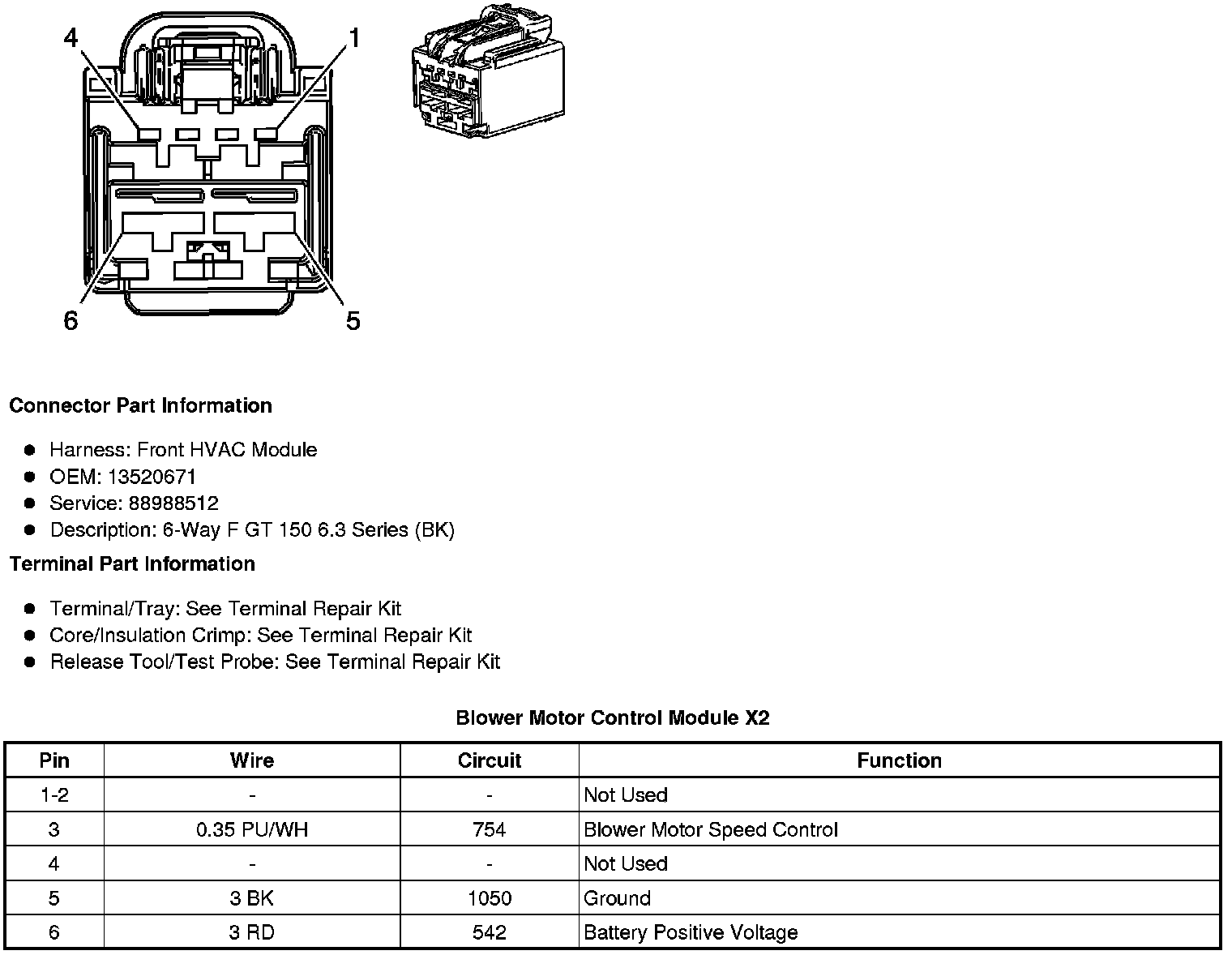

Blower Motor Control Module X2
