Transmission Position Sensor/Switch: Locations

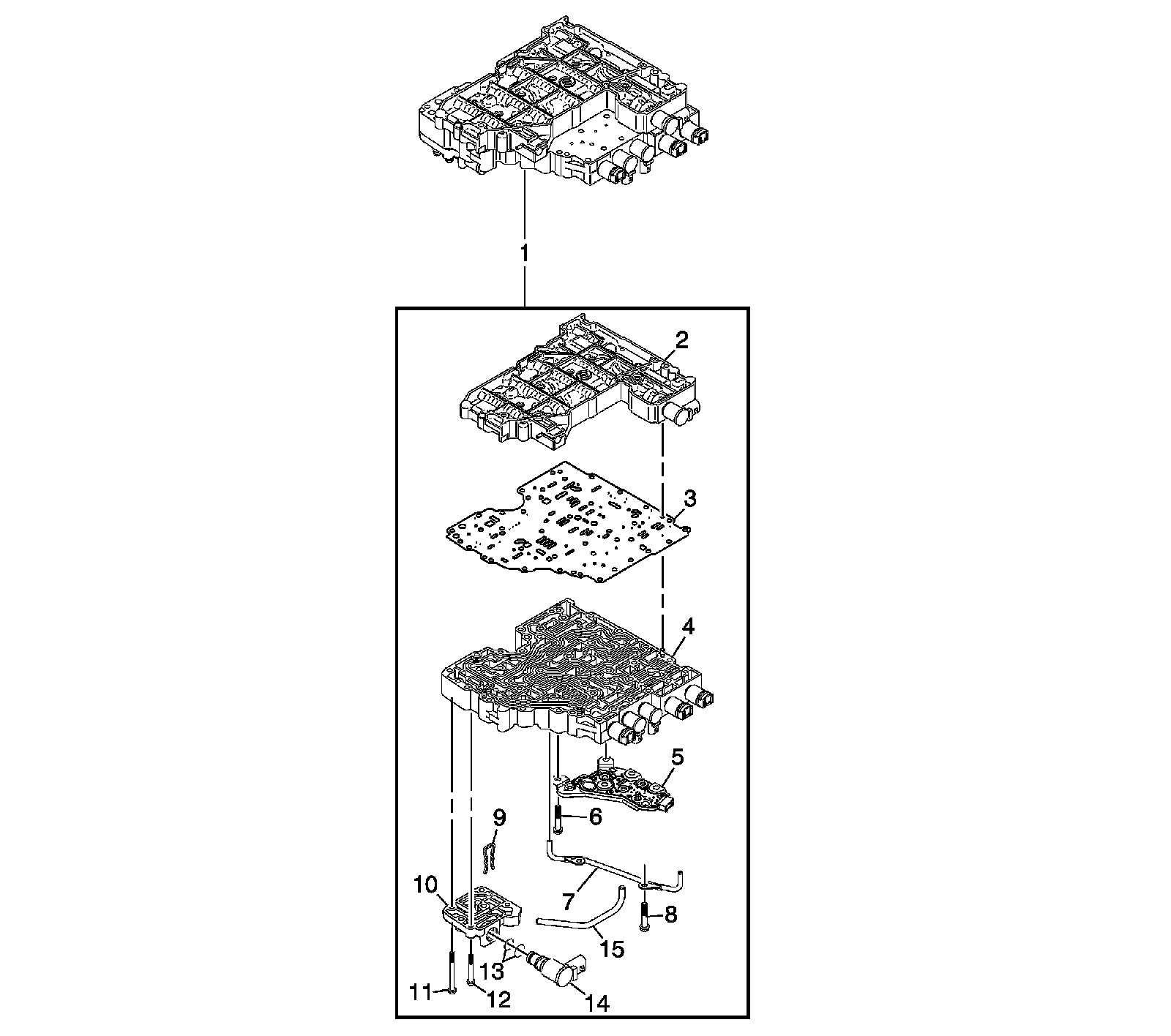

Disassembled Views

Control Valve Body Assembly




1 - Control Valve Body Assembly
2 - Shift Valve Body Assembly
3 - Separator Plate
4 - Main Valve Body Assembly
5 - Transmission Fluid Pressure (TFP) Switch
6 - Main Valve Body Assembly Bolt, M6 x 10 x 50, Flanged Head (23)
7 - Reverse Signal Pipe
8 - Reverse Signal Pipe Bolt, M6 x 10 x 50, Flanged Head
9 - Retaining Clip
10 - Modulated Main Valve Body
11 - Bolt, M6 x 10 x 65
12 - Bolt, M6 x 10 x 50
13 - O-Rings
14 - Modulated Main Pressure (MAIN MOD) Solenoid
15 - 6 Speed Pipe
