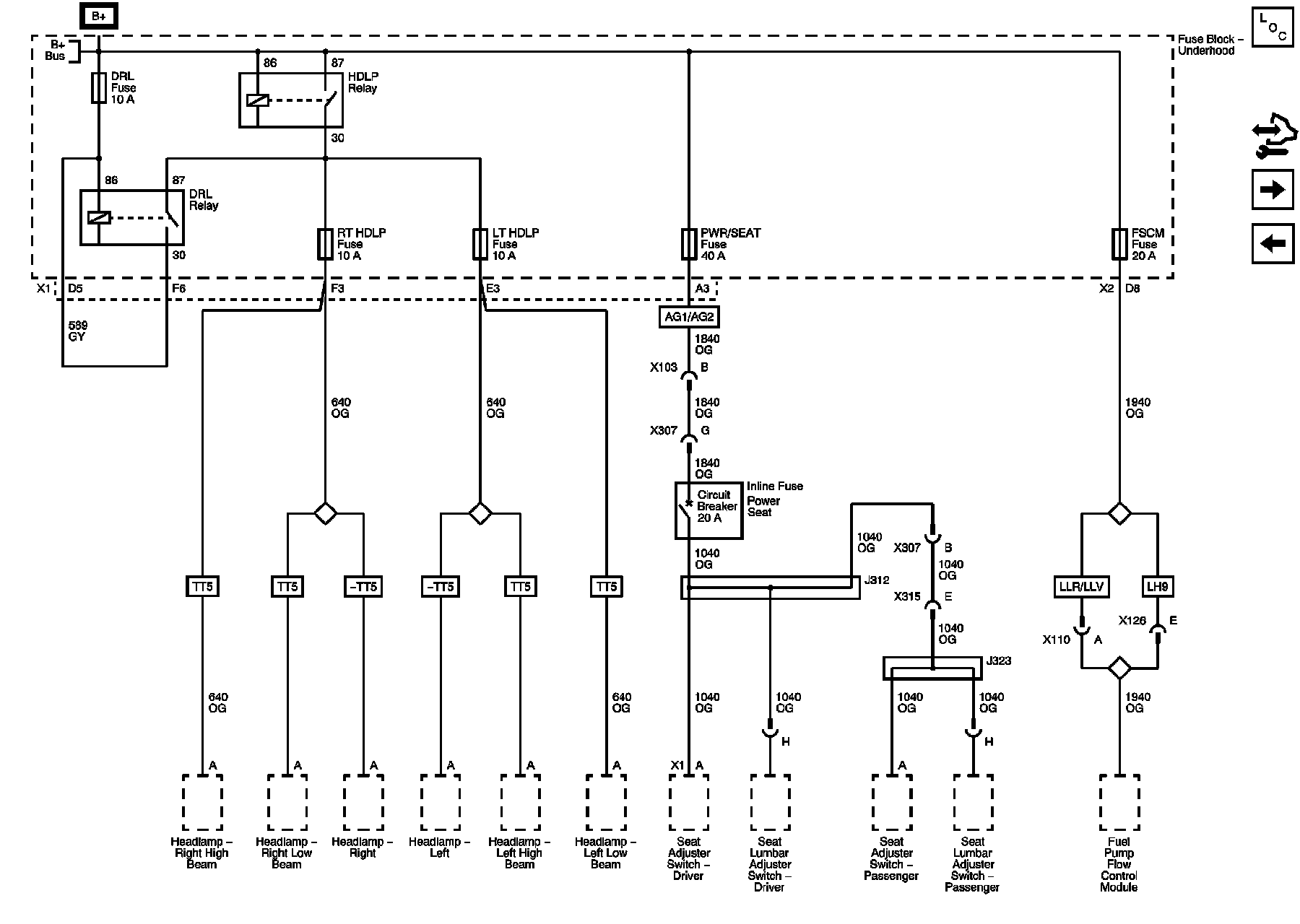

Power Distribution Schematic 9




Power Distribution Schematics

BACKUP, DRL, PWR/SEAT, LT HDLP, and RT HDLP Fuses
