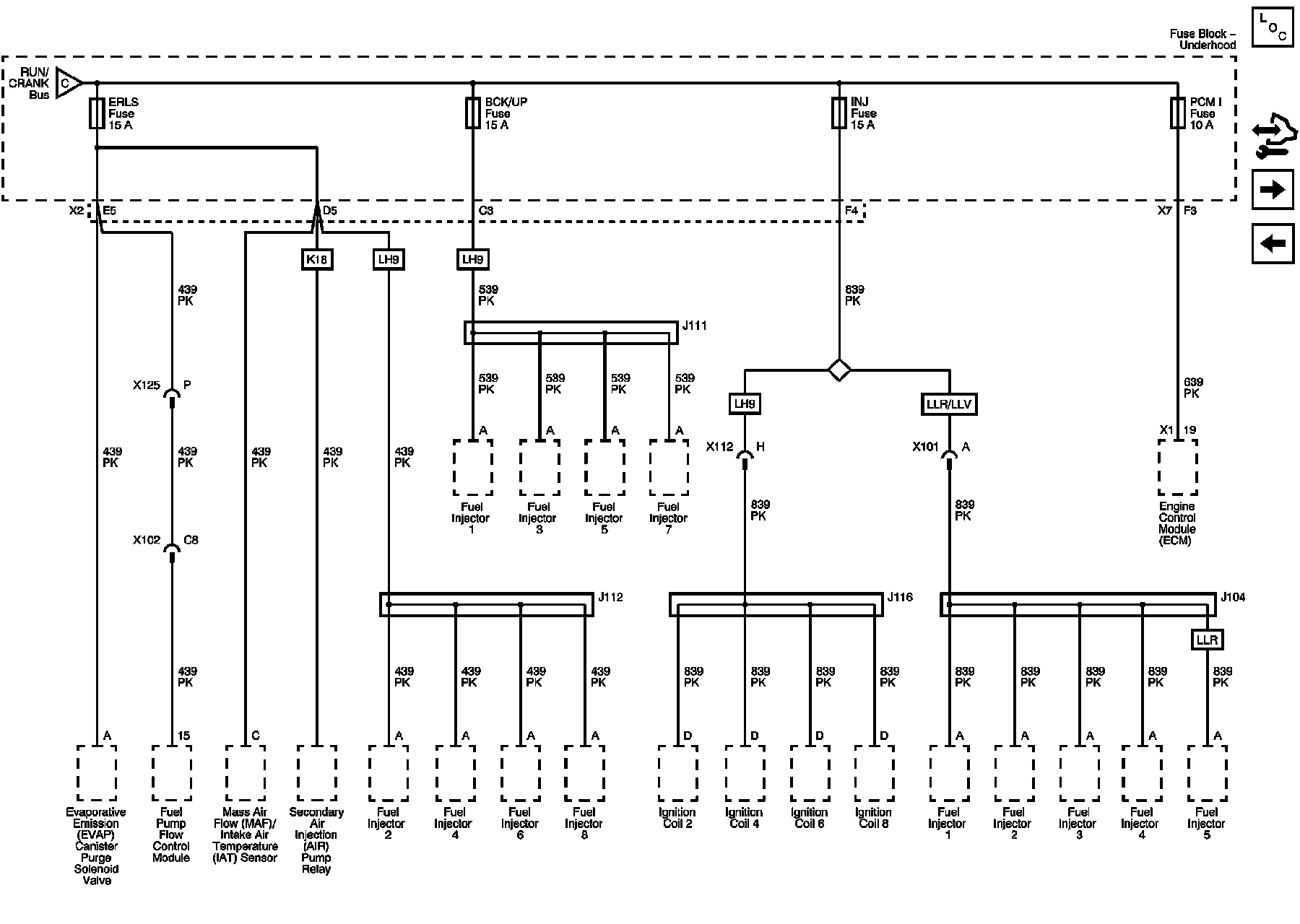

Power Distribution Schematic 7




Power Distribution Schematics

RUN/CRANK Bus (3 of 3), BCK/UP, ERLS, INJ, and PCM I Fuses
